Acue Lighting Color Tube — RGB LED Effect Bar
Color Tube Overview
The Acue Lighting Color Tube is a versatile LED effect bar designed for stage, event, and architectural lighting applications. Its core light source consists of a dual line array of 124 SMD5050 RGB LEDs covered by a milky white diffusion cover that produces smooth, even color output. In full channel mode, the fixture supports 14-channel DMX control with 8 individually addressable sections, while each array can also be dimmed independently for precise creative control. This fixture is well-suited for lighting designers, touring companies, event production companies, and venues requiring flexible, low-power color effects.
With a maximum power draw of only 40W and support for AC110-220V at 50/60Hz, the Color Tube integrates easily into existing power infrastructure, and its two built-in macro libraries provide ready-to-use looks for standalone or master-slave deployments without a dedicated controller.
Key Features
- Dual Line Array Light Source — 124 SMD5050 RGB LEDs arranged in two independent arrays, covered by a milky white diffusion cover for uniform color mixing
- Independent Array Dimming — Each of the two LED arrays can be dimmed separately, enabling asymmetric lighting effects from a single fixture
- 8-Section DMX Control — In 14-channel full mode, the tube is divided into 8 individually controllable sections for dynamic pixel-style effects
- Multiple Control Modes — Operates via DMX512, Stand Alone, Master-Slave, and Sound Control, providing flexibility across a wide range of deployment scenarios
- Dual DMX Channel Modes — Selectable 8-channel and 14-channel DMX modes to match the complexity of the control system in use
- Built-In Macro Libraries — Two onboard macro libraries with multiple pre-programmed effects designed for diverse use cases, enabling operation without an external controller
- Wide Voltage Compatibility — Accepts AC110-220V at 50/60Hz with a maximum power consumption of 40W, suitable for domestic and international touring applications
Connectivity & I/O

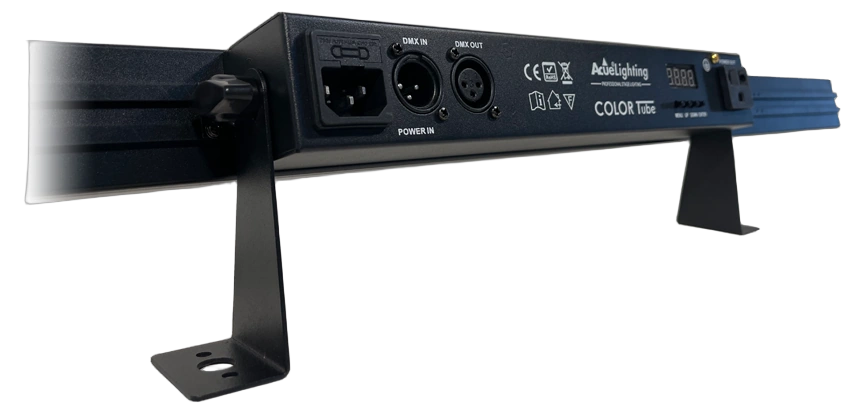

- DMX In/Out via 3-pin XLR connectors
Technical Specifications
| Power | AC110-220V, 50/60Hz |
| Max Power Consumption | 40W |
| Light Source | 124pcs SMD5050 RGB LEDs |
| Control Modes | DMX512, Stand Alone, Master-Slave, Sound Control |
| DMX Channels | 8 & 14 Ch Modes |
| DMX I/O | 3-pin XLR |
