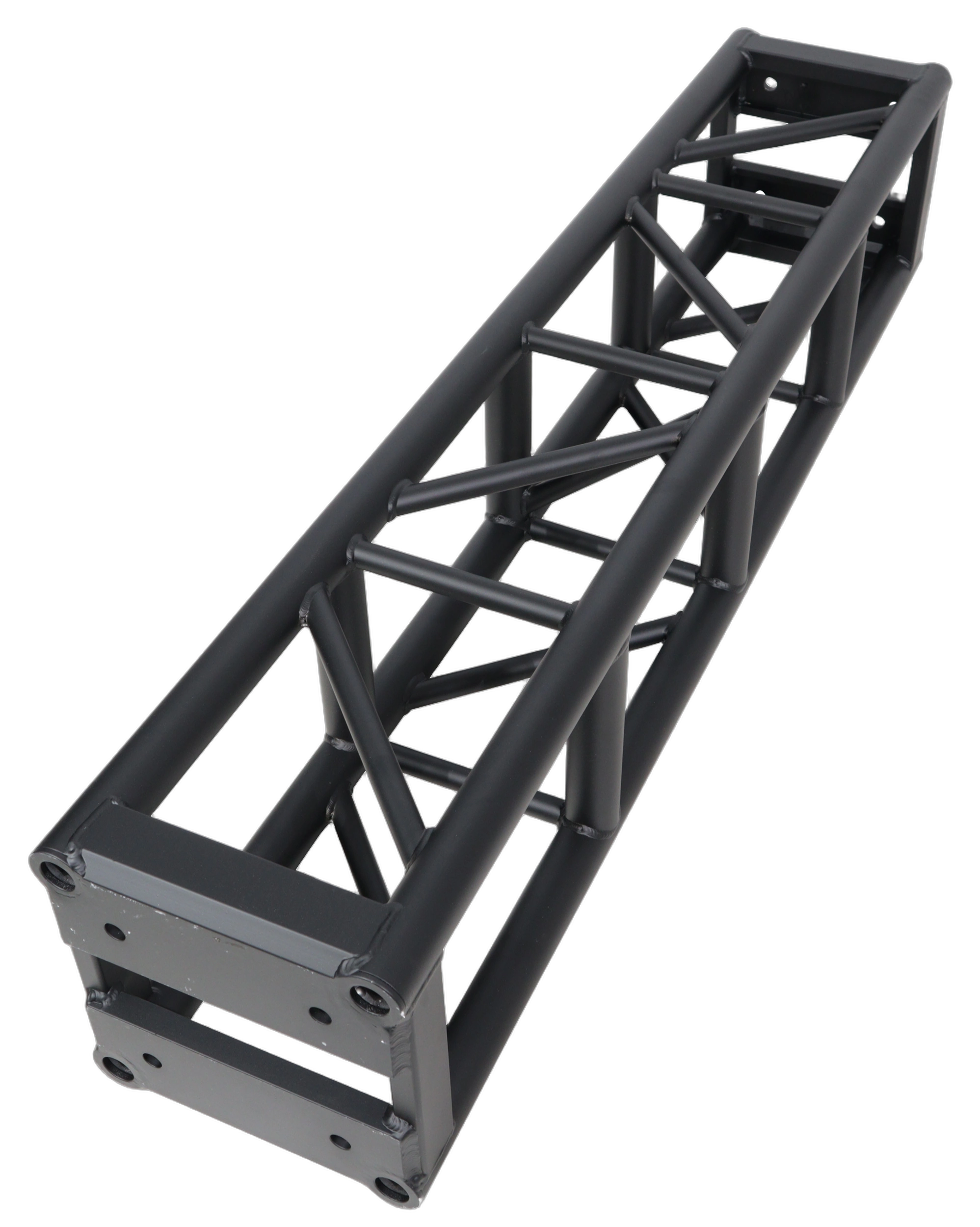

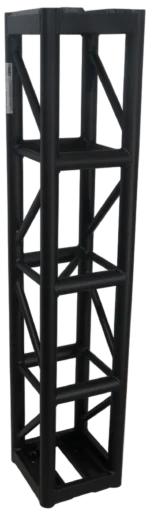

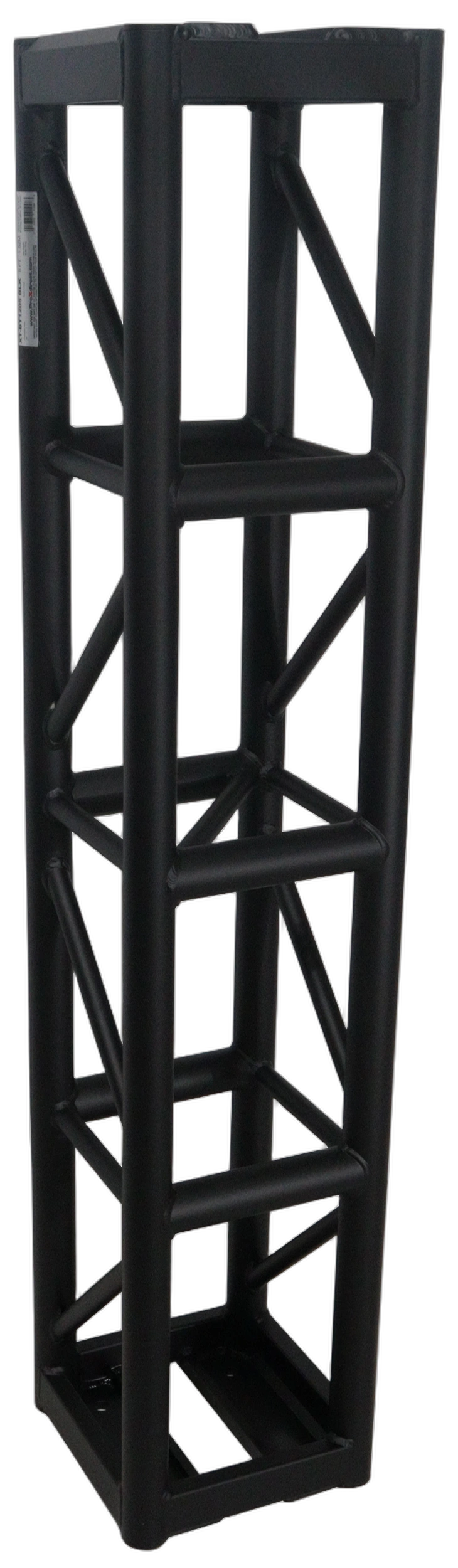

ProX XT-BT1206BLK BoltX — 6 ft. Black 12-Inch Professional Box Truss Segment
XT-BT1206BLK Overview
The ProX XT-BT1206BLK is part of the BoltX™ professional box truss system, engineered for demanding production environments including stage lighting rigs, live concerts, touring builds, and specialty structural applications such as Ninja Obstacle Course construction. A defining feature of the BoltX™ system is its heavy-duty aluminum end plates welded on both sides, combined with exclusive circular corner rings that protect main chord ends from the impact and abrasion damage common in production environments. The 6.75-inch bolt center pattern ensures compatibility with most other 12-inch professional box truss manufacturers, making it a practical choice for integrators working with mixed truss inventories. This segment is suited for touring companies, staging contractors, system integrators, and production houses that require consistent fitment and structural integrity across repeated setups and strikes.
Each segment ships with a complete hardware set including four 5/8″-11 x 2.5″ (NC) attachment bolts, nuts, flat washers, and lock washers, allowing immediate deployment without sourcing additional hardware.
Key Features

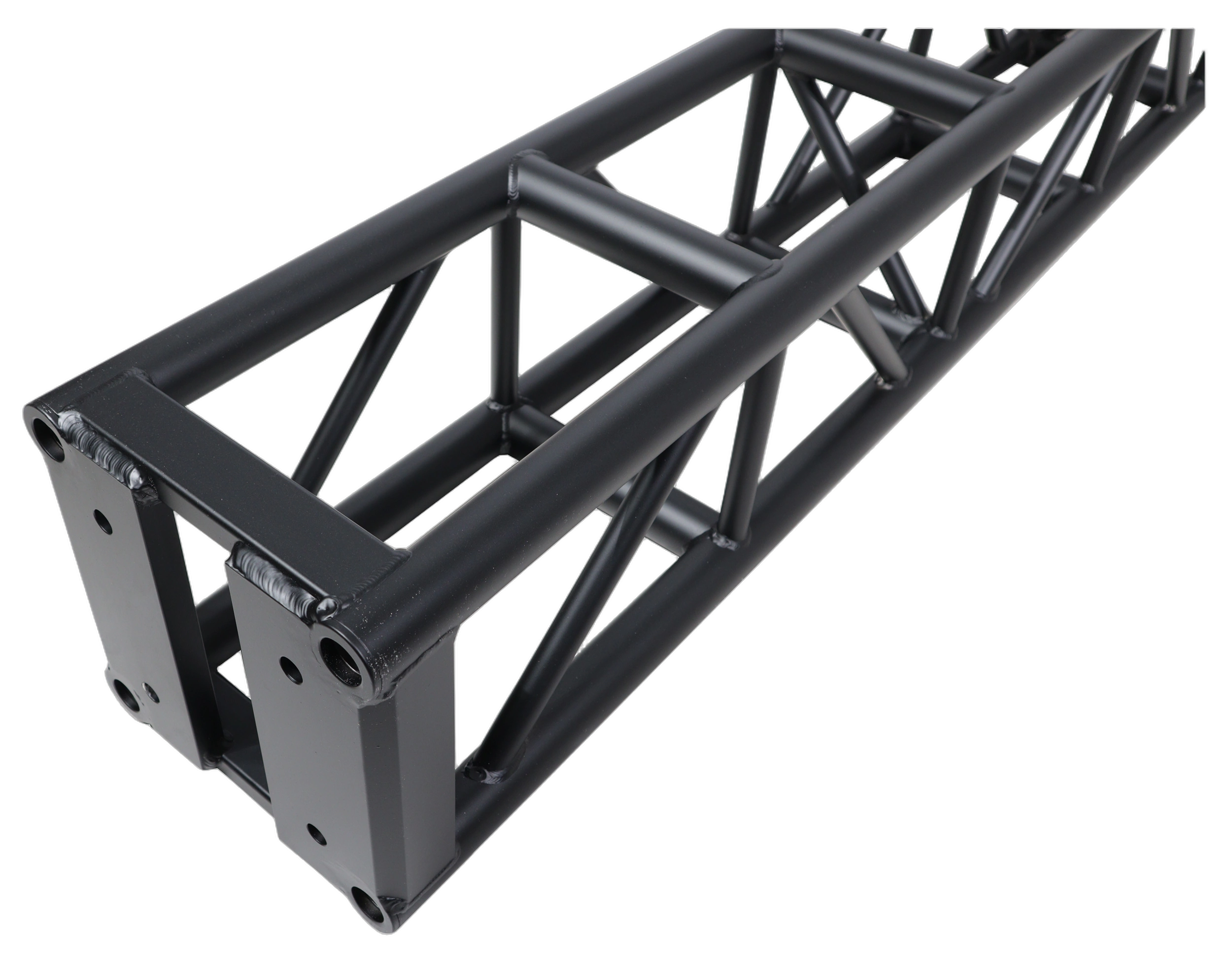

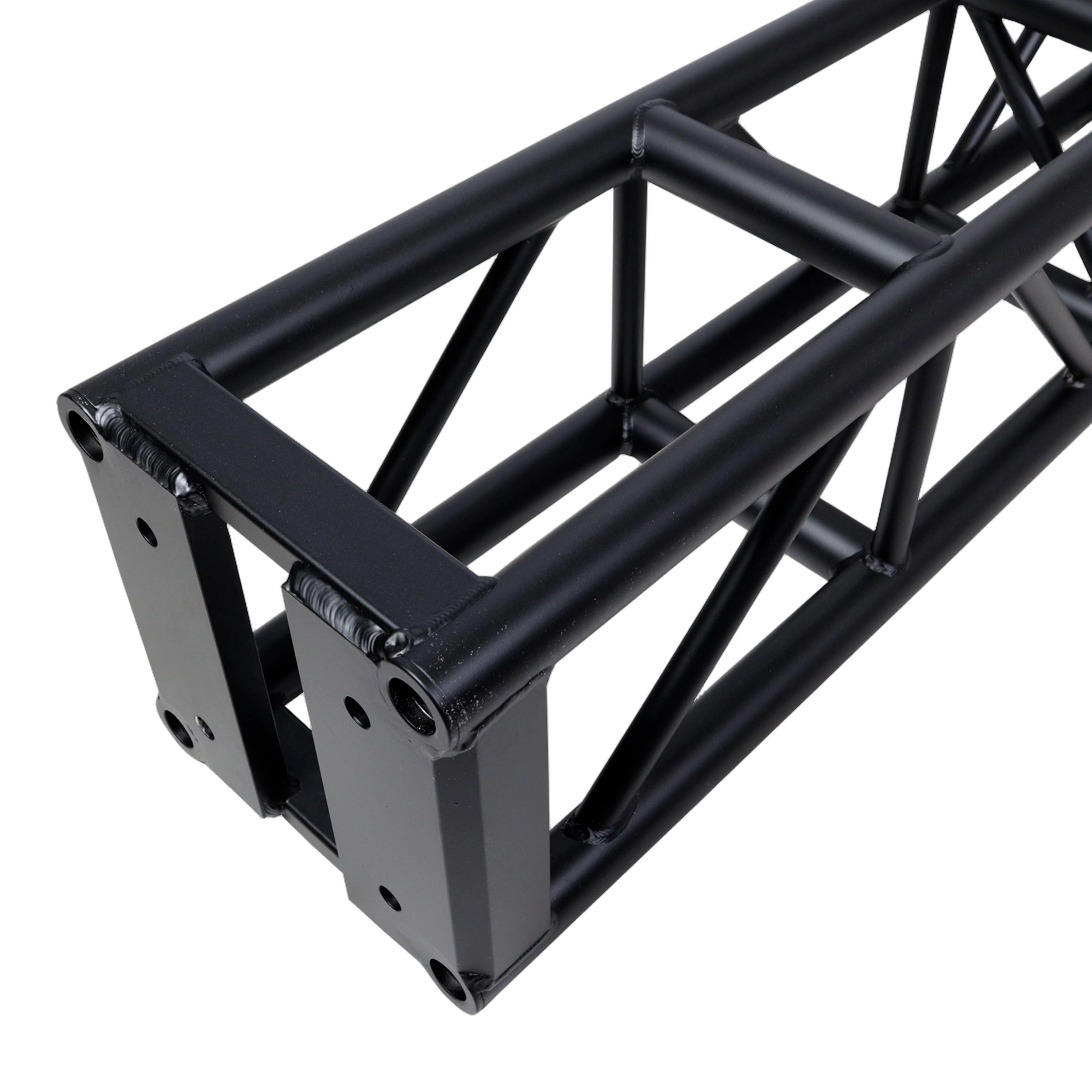

- BoltX™ Welded End Plates — Heavy-duty aluminum end plates welded on both sides of each segment for structural integrity and consistent connection alignment
- Exclusive Circular Corner Rings — Protective rings at each corner of the truss reduce or eliminate damage to main chord ends caused by drops or dragging on concrete surfaces
- 3mm Wall Construction — Robust tube wall thickness engineered for professional load-bearing applications
- Black Powder Coat Finish — Matte black finish suited for stage and production environments where visual discretion is required
- 6.75-Inch Bolt Center Pattern — Compatible with most other 12-inch professional box truss manufacturers for integration into existing truss inventories
- Complete Hardware Included — Each segment includes one set of four 5/8″-11 x 2.5″ (NC) bolts, nuts, flat washers, and lock washers
- Quality-Controlled Fitment — Manufacturing tolerances are maintained to ensure consistent, precise connections that expedite setup and reduce field adjustments
Technical Specifications
| Model | XT-BT1206BLK |
| Length | 6 ft. |
| Truss Size | 12 inch |
| Wall Thickness | 3mm |
| Finish | Black |
| Bolt Center Pattern | 6.75 inches |
| Included Hardware | Four 5/8″-11 x 2.5″ (NC) bolts, nuts, flat washers, and lock washers |
| End Plate Material | Heavy-duty aluminum, welded both sides |
