ProX XT-BT1206 MK2 BoltX 6 Ft. 12-Inch Professional Box Truss Segment — 3mm Wall
XT-BT1206 MK2 Overview

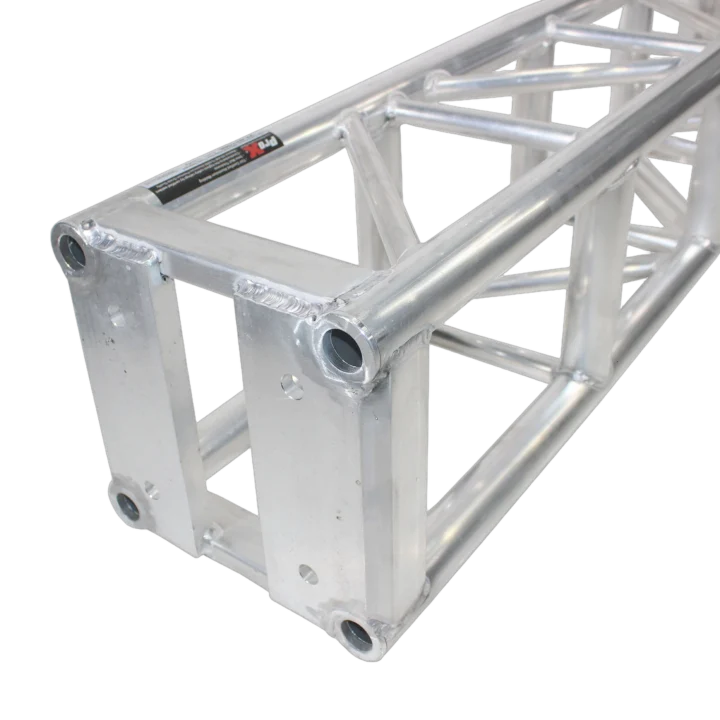

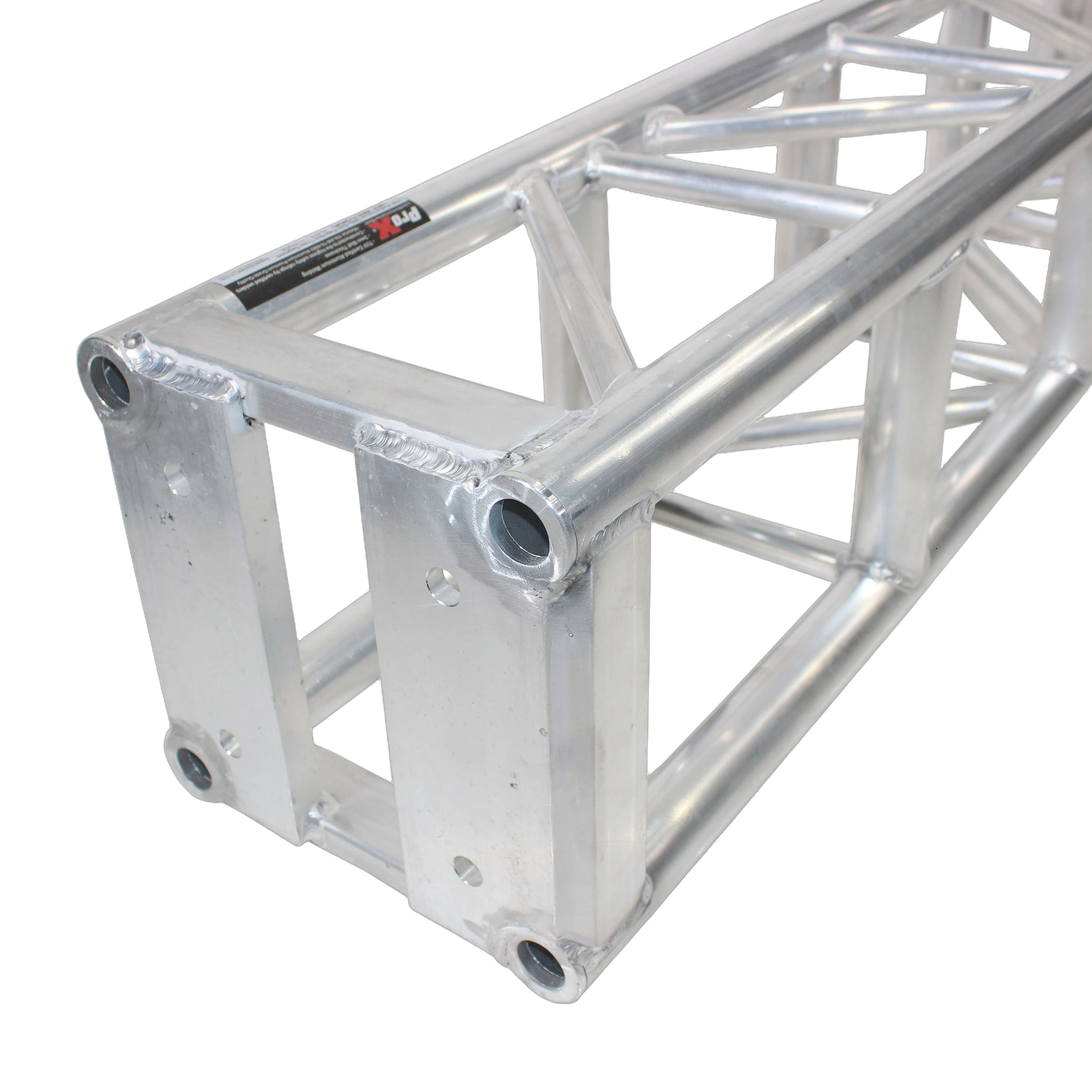

The ProX XT-BT1206 MK2 is a 6-foot, 12-inch box truss segment from the BoltX™ series, purpose-built for demanding professional applications including stage lighting rigs, concert touring structures, and load-bearing installations. The truss features heavy-duty aluminum end plates welded on both sides for superior joint integrity, along with exclusive circular corner protection rings that minimize tube-end damage from drops or dragging across concrete surfaces. A 3mm wall thickness throughout the main chord construction provides the structural rigidity required for professional rigging environments. This segment is suited for lighting designers, staging companies, system integrators, and touring production crews who require reliable, repeatable truss performance.
The BoltX™ system is engineered for precise, seamless connections across sections, and its 6.75-inch bolt center pattern ensures compatibility with most other 12-inch professional box truss manufacturers, simplifying integration into existing inventory or mixed-brand configurations.
Key Features
- Heavy-Duty Welded Aluminum End Plates — End plates are welded on both sides of each connection point, delivering superior strength and durability at every joint
- Exclusive Corner Protection Rings — Circular rings at each corner reduce or eliminate damage to main chord tube ends caused by drops or dragging on hard surfaces, lowering long-term repair costs
- 3mm Wall Construction — Consistent 3mm wall thickness throughout the main chord provides the structural integrity required for professional load-bearing applications
- 6.75-Inch Bolt Center Pattern — Compatible with most other 12-inch professional box truss manufacturers utilizing the same bolt center pattern, enabling cross-brand system integration
- Precision-Fit Connections — Manufacturing tolerances are held tight to ensure effortless, repeatable assembly across multiple sections and configurations

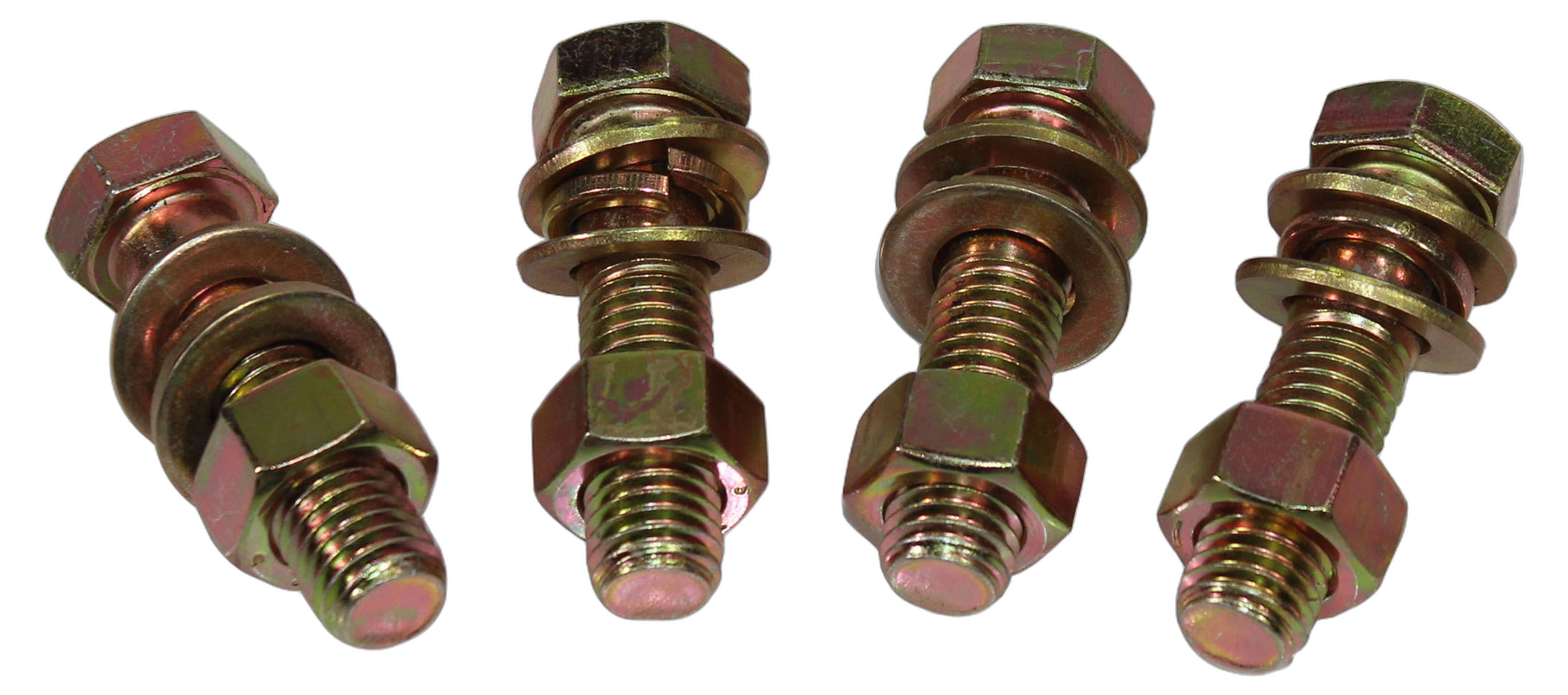

- Complete Hardware Included — Each segment ships with one set of four 5/8″-11 x 2.5″ (NC) attachment bolts, nuts, and both flat and lock washers for immediate assembly
- Broad Application Range — Engineered for stage lighting, concert production, touring rigs, and structural installations requiring certified box truss performance
Technical Specifications
| Model | XT-BT1206 MK2 |
| Truss Length | 6 Ft. |
| Truss Width | 12 Inch |
| Wall Thickness | 3mm |
| End Plate Material | Heavy-duty aluminum, welded both sides |
| Bolt Center Pattern | 6.75 inches |
| Included Hardware | 4x 5/8″-11 x 2.5″ (NC) bolts, nuts, flat washers, lock washers |
