Acue Lighting Solar Ray — 10x50W WW/CW LED Blinder Bar
Solar Ray Overview

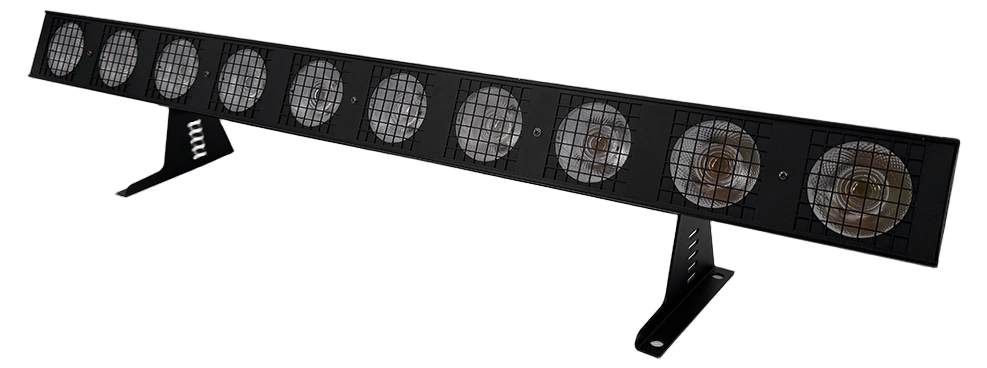

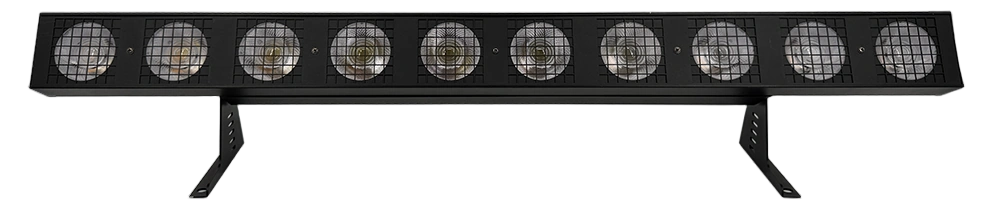

The Acue Lighting Solar Ray is a versatile LED blinder bar built for touring productions, live events, and stage applications requiring high-output warm/cool white effects. The fixture houses 10 x 50W WW/CW 2-in-1 LEDs paired with custom-designed wide-angle lenses that deliver a broad, even fill effect across the stage. CTO control spanning 3200K to 6400K allows precise color temperature matching, while 6 or 24-channel DMX modes provide both simplified and full individual pixel control. This package is designed for production teams, lighting designers, and touring companies who need a reliable, road-ready blinder solution.
Each Solar Ray is sold as a package of 4 fixtures housed in a 4-in-1 stackable flight case, streamlining transport and deployment. Setup and DMX addressing are handled via the 4-button LED display on the rear panel, and PowerCon in/out connections allow chaining of up to 6 fixtures per 20A 110V circuit.
Key Features
- 10 x 50W WW/CW 2-in-1 LEDs — High-output warm white and cool white dual-chip LEDs deliver powerful blinder and fill effects from a single fixture
- Custom Wide-Angle Lenses — Purpose-designed lenses maximize spread for foot light and blinder applications, creating a full-stage fill effect
- CTO Control (3200K to 6400K) — Continuous color temperature adjustment between warm and cool white for precise scene matching
- 6 or 24-Channel DMX Modes — Flexible channel configurations support both simplified group control and full individual pixel control per LED
- 32-Bit Linear Dimming — 0-100% smooth dimming control with no visible stepping across the full range
- Variable Strobe Effect — Built-in strobe with variable speed from 1 to 20Hz and DMX-accessible macro control
- Multiple Control Modes — Operates via DMX512, Auto Run, Master/Slave, or Sound Activation for flexible deployment scenarios
- PowerCon In/Out Power Linking — Supports chaining of up to 6 fixtures per 20A 110V circuit, reducing cable runs and setup time
- 4-Pack with Stackable Flight Case — Sold as a set of 4 fixtures with a 4-in-1 stackable flight case for safe, organized transport

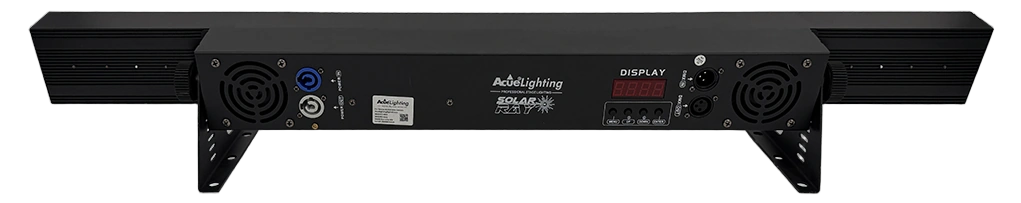

Connectivity & I/O
- 3-pin DMX XLR Input
- 3-pin DMX XLR Output
- PowerCon Input
- PowerCon Output
Technical Specifications
| Power | AC100~240V, 50/60Hz |
| Light Source | 10 x 50W WW/CW 2-in-1 LEDs |
| DMX Channels | 6 or 24CH |
| Dimming Control | 32-bit 0-100% Linear Dimming Control |
| Control Modes | DMX512, Auto Run, Master/Slave, Sound Activation |
| Strobe Effect | Variable speed (1-20Hz) |
| Working Temperature | -30°C to 50°C |
| Housing | Aluminum, Black |
| Fixture Size | 37.75″ x 6″ x 7″ |
| Weight (Unboxed) | 8.5 lb |
| Package Weight | 73 lb |
| Package Dimensions | 44 x 19 x 12 in |
| IP Grade | IP20 — Rated for Indoor Use Only |
