ProX XT-BT1202BLK BoltX — 2 Ft. 12-Inch Professional Box Truss Segment, Black Finish
XT-BT1202BLK Overview
The ProX XT-BT1202BLK BoltX is a 2-foot section of 12-inch professional box truss designed for stage lighting rigs, concert productions, Ninja Obstacle Course construction, and similar structural applications. Its standout feature is the heavy-duty aluminum end plate welded on both sides, combined with exclusive circular corner rings that protect the main chord ends from damage caused by drops or dragging across concrete floors. The 3mm wall thickness provides structural integrity suited to demanding touring and installation environments. This truss is built for production companies, system integrators, touring crews, and venue operators who require reliable, repeatable fitment across large truss builds.
The BoltX design is compatible with most 12-inch professional box truss manufacturers utilizing a 6.75-inch bolt center pattern, and each segment ships with a complete hardware set including four 5/8″-11 x 2.5″ NC attachment bolts, nuts, flat washers, and lock washers.
Key Features

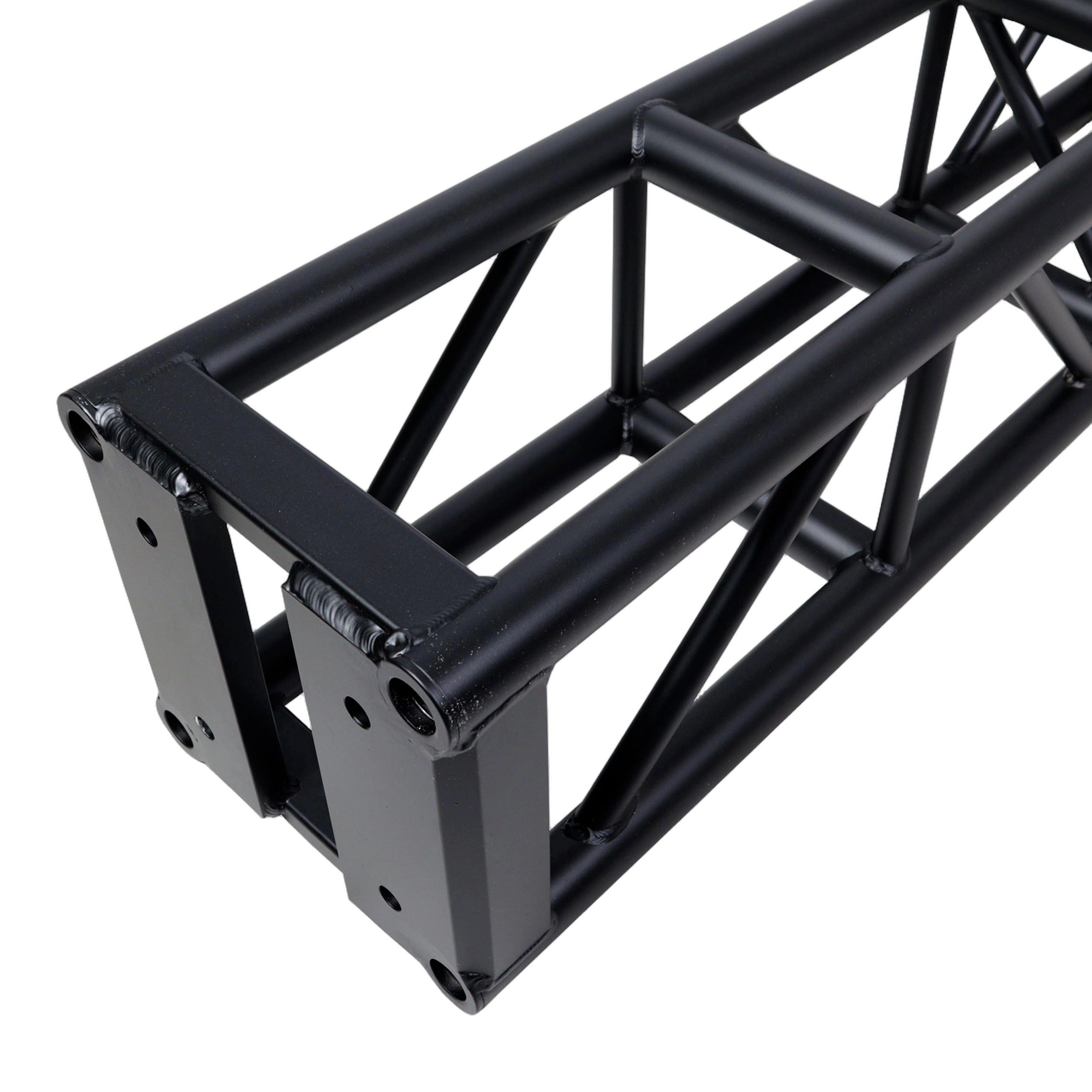

- Dual-Welded Aluminum End Plates — Heavy-duty aluminum end plates welded on both sides for superior joint strength and consistent connection geometry
- Exclusive Circular Corner Rings — Proprietary corner ring design reduces or eliminates damage to main chord ends from drops and floor dragging, lowering long-term repair costs
- 3mm Wall Thickness — Robust wall construction engineered to handle the structural demands of professional stage and touring applications
- 6.75″ Bolt Center Pattern Compatibility — Fits most 12-inch professional box truss systems from other manufacturers, enabling integration into existing truss inventories

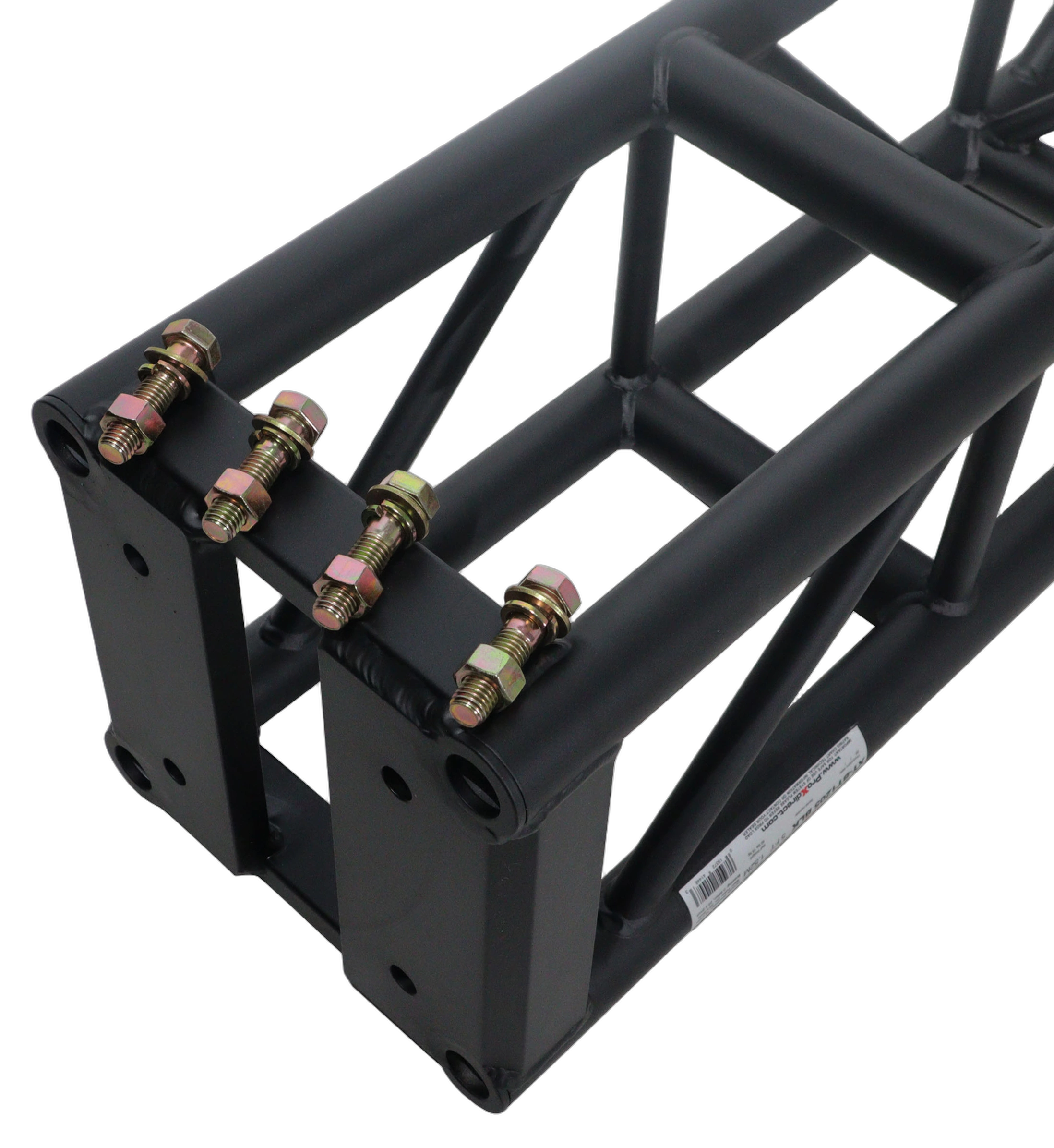

- Complete Hardware Included — Each segment includes one set of four 5/8″-11 x 2.5″ NC bolts, nuts, flat washers, and lock washers for immediate deployment
- Black Powder Coat Finish — Black finish suited for stage environments where truss visibility must be minimized
- Precision Manufacturing — Quality-controlled fabrication ensures consistent fitment at every connection point to accelerate assembly on-site
