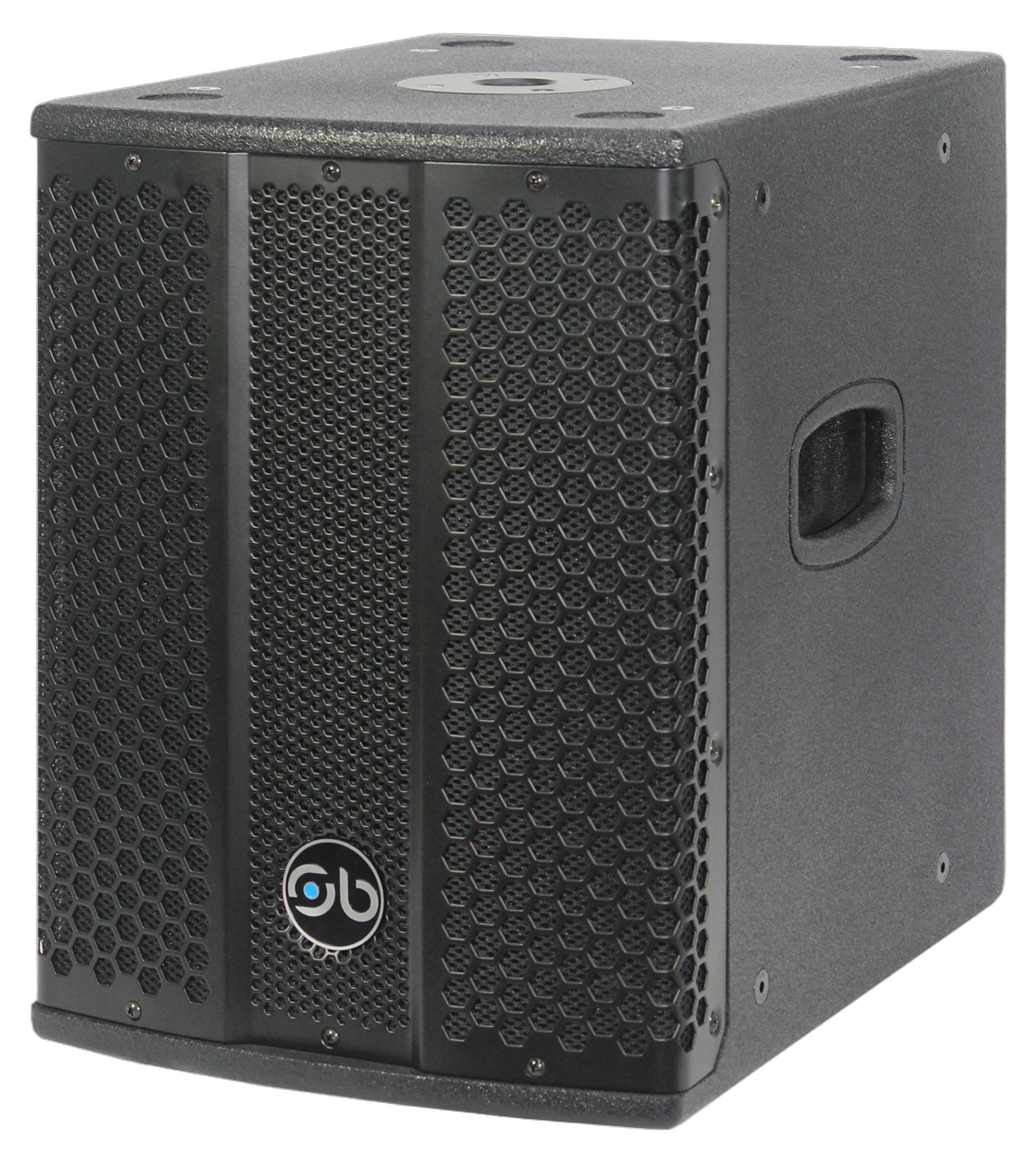

Sound Barrier iLX10DSUB — 10″ Active Subwoofer with Selectable Crossover
iLX10DSUB Overview
The Sound Barrier iLX10DSUB is a compact 10″ active subwoofer built for portable PA systems, small venues, houses of worship, and fixed installations where space and portability are primary considerations. Powered by an efficient Class-D amplifier, the iLX10DSUB delivers focused, accurate bass extension within a compact enclosure designed for reliable thermal performance. Onboard system controls include a selectable crossover frequency switch (80Hz, 100Hz, 120Hz, or 150Hz) and a 0°/180° phase switch for precise alignment with full-range loudspeakers. This subwoofer is well suited for audio engineers, system integrators, and installers who need a practical low-frequency solution without sacrificing control or flexibility.
The rugged enclosure and professional connectivity make the iLX10DSUB straightforward to deploy in both touring and installed environments, with onboard controls that reduce the need for external signal processing in compact system configurations.
Key Features
- Class-D Amplification — efficient internal amplifier delivers punchy bass response while maintaining a compact footprint and reliable thermal performance

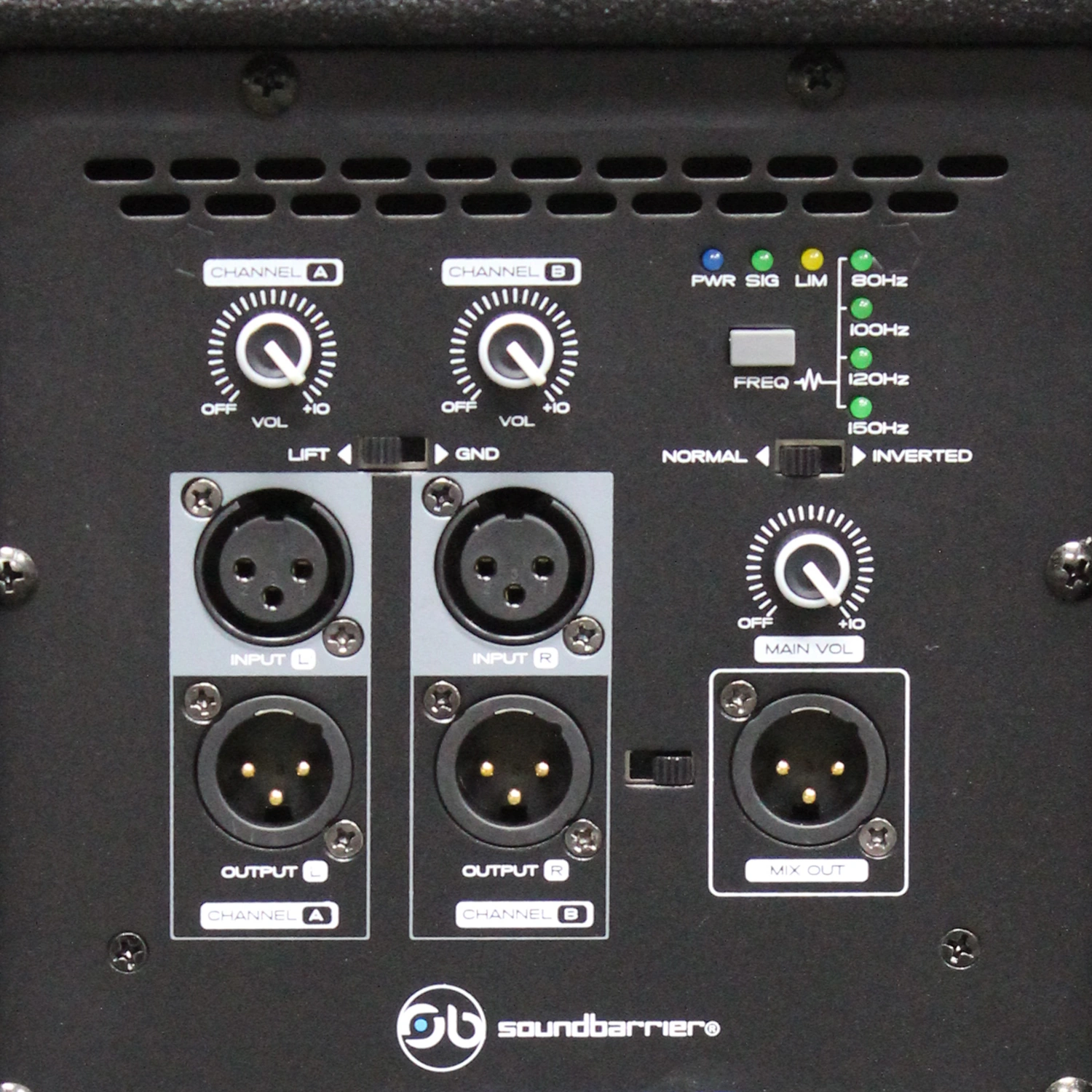

- Selectable Crossover Frequency — onboard switch selects 80Hz, 100Hz, 120Hz, or 150Hz crossover points for proper alignment with a wide range of full-range loudspeakers
- Phase Switch (0° / 180°) — allows time-alignment with main speakers for improved low-frequency coherence and system integration
- Full / HPF Output Switch — selects between a full-range output signal or a high-pass filtered signal (above 120Hz) to connected top cabinets, simplifying system configuration
- Ground Lift Switch — reduces unwanted noise and hum in challenging signal environments without requiring additional external equipment
- Optimized Enclosure Design — compact cabinet tuned for focused bass extension that enhances overall system impact without overwhelming the mix
- Portable Form Factor — compact dimensions and rugged construction suit both portable PA deployment and permanent installation applications
