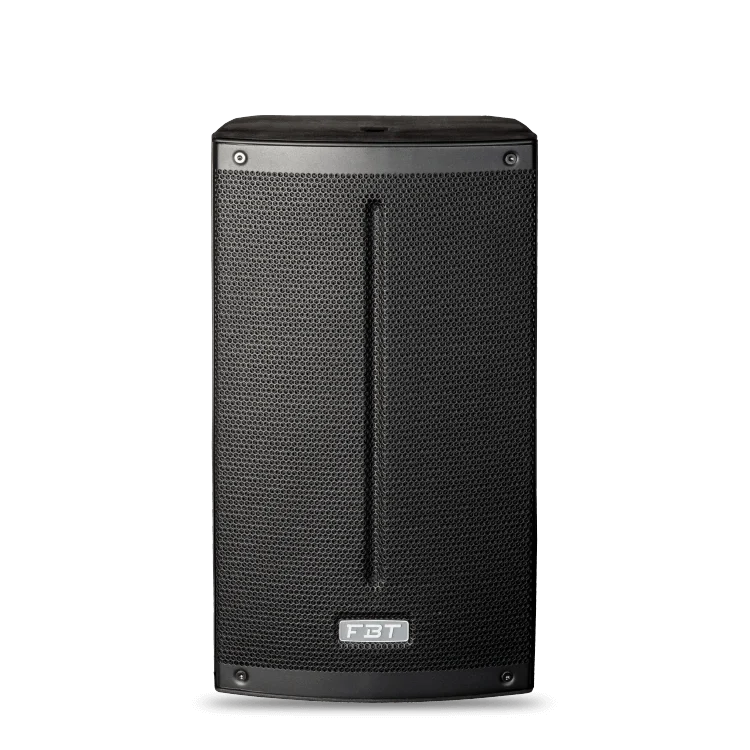

FBT X-Lite 110 — Passive 10″ Point Source Loudspeaker
X-Lite 110 Overview
The FBT X-Lite 110 is a 2-way passive point source loudspeaker built for compact sound reinforcement across a wide range of live and fixed installation applications. It features a 10″ woofer with a 2.5″ voice coil paired with a 1″ HF compression driver with a 1.4″ voice coil, achieving a frequency response of 65Hz–20kHz and a maximum SPL of 124 dB. The 90° x 60° constant directivity horn provides uniform, controlled dispersion suited to a variety of room geometries and audience configurations. This loudspeaker is well suited for system integrators, touring engineers, and venue operators requiring a reliable, lightweight passive cabinet.
The gas-injected polypropylene enclosure delivers structural durability while keeping overall weight low, making the X-Lite 110 practical for portable deployment and permanent installation alike.
Key Features
- 10″ Woofer with 2.5″ Voice Coil — provides low-frequency extension down to 65Hz in a compact enclosure footprint
- 1″ HF Compression Driver with 1.4″ Voice Coil — delivers clear, controlled high-frequency reproduction up to 20kHz
- 124 dB Maximum SPL — sufficient output for small-to-medium venues, stage monitoring, and fill applications
- 90° x 60° Constant Directivity Horn — ensures uniform audience coverage and predictable pattern control for system design
- 65Hz–20kHz Frequency Response — broad bandwidth suitable for full-range passive operation when paired with an appropriate amplifier
- Gas-Injected Polypropylene Enclosure — combines impact resistance and lightweight construction for durability in touring and fixed environments
- Passive 2-Way Design — compatible with a wide range of external amplifiers and system processor configurations
Technical Specifications
| Configuration | 2-way passive |
| Woofer | 10″ with 2.5″ voice coil |
| HF Driver | 1″ compression driver with 1.4″ voice coil |
| Frequency Response | 65Hz–20kHz |
| Maximum SPL | 124 dB |
| Dispersion (H x V) | 90° x 60° |
| Horn Type | Constant directivity |
| Enclosure Material | Gas-injected polypropylene |
