FBT VENTIS 115 — Passive 1×15″ Point Source Install Loudspeaker
VENTIS 115 Overview

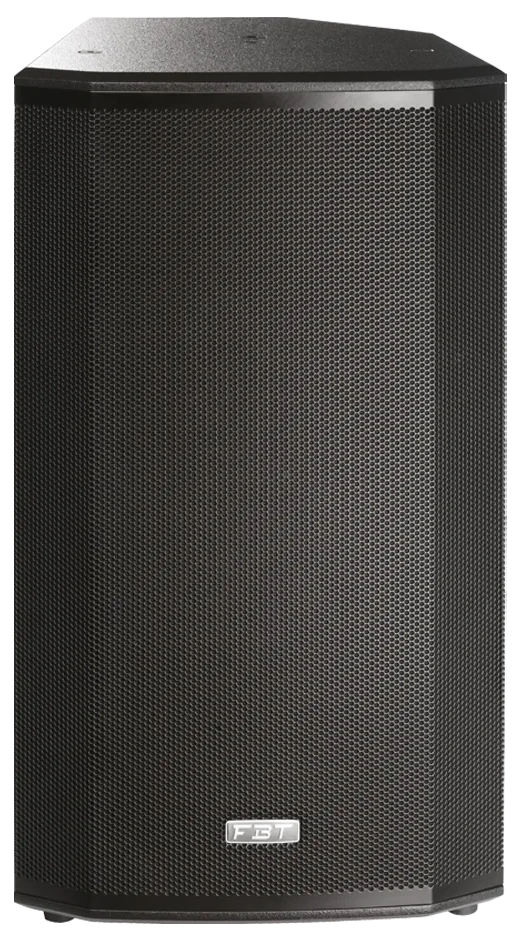

The FBT VENTIS 115 is a passive two-way point source loudspeaker built for permanent installation environments where controlled dispersion and structural durability are essential. The cabinet pairs a 15″ LF woofer with a 1″ HF driver, achieving a frequency response from 50Hz to 18kHz and peak output up to 133 dB SPL. A rotatable horn provides selectable horizontal or vertical orientation to suit the demands of the installation geometry. This loudspeaker is well suited for system integrators, houses of worship, venues, and touring companies requiring a reliable passive point source solution.

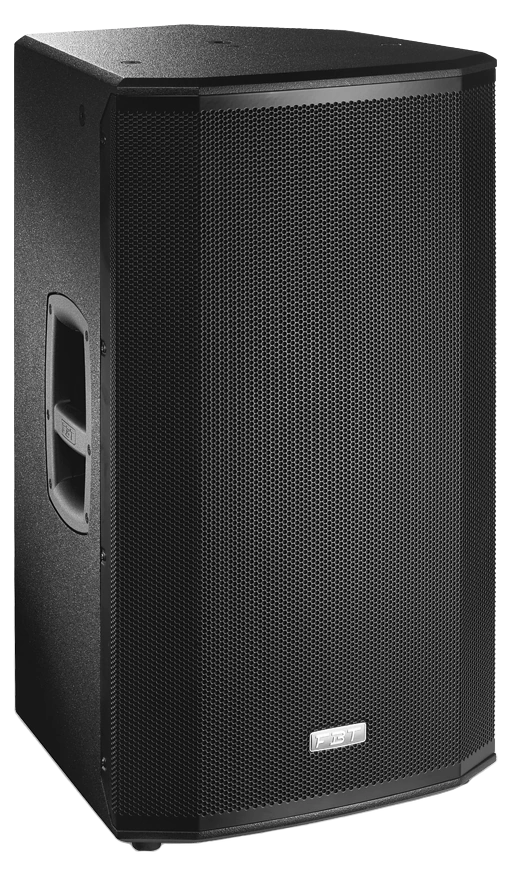

The VENTIS 115 is constructed from birch plywood with internal bracing and a scratch-resistant enclosure finish, combining structural integrity with a professional appearance appropriate for fixed installation.
Key Features
- Constant Directivity Horn — 80° horizontal by 50° vertical dispersion pattern for precise, controlled coverage in the listening area
- Rotatable Horn — Allows the HF horn to be repositioned for optimal horizontal or vertical orientation to match installation requirements
- High Output Capability — Delivers up to 127/133 dB SPL for demanding installation and live reinforcement applications
- Extended Frequency Response — 50Hz to 18kHz, providing full-range coverage from a single point source enclosure
- Built-In Passive Crossover — Integrated crossover network with soft-trip protection for both the LF woofer and HF driver
- Birch Plywood Cabinet — Internal bracing and scratch-resistant finish deliver long-term durability in permanent installation environments
- Full Suspension Capability — Six M10 rigging points allow flexible flown installation configurations
- Recommended Amplifier Power — Designed for use with an amplifier rated at 500W RMS
