ProX XT-BT1205 MK2 BoltX 12-Inch Professional Box Truss Segment — 3mm Wall
XT-BT1205 MK2 Overview

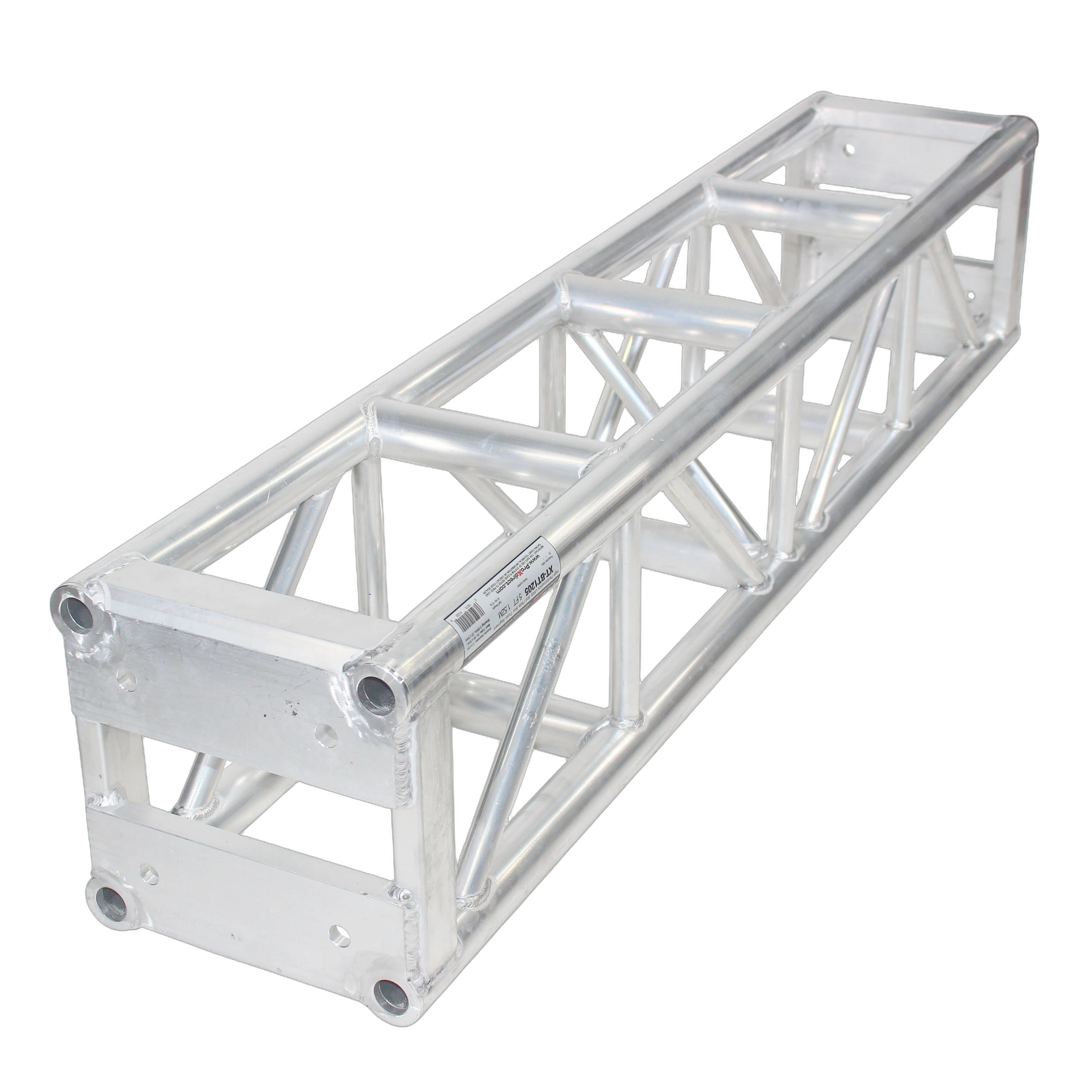

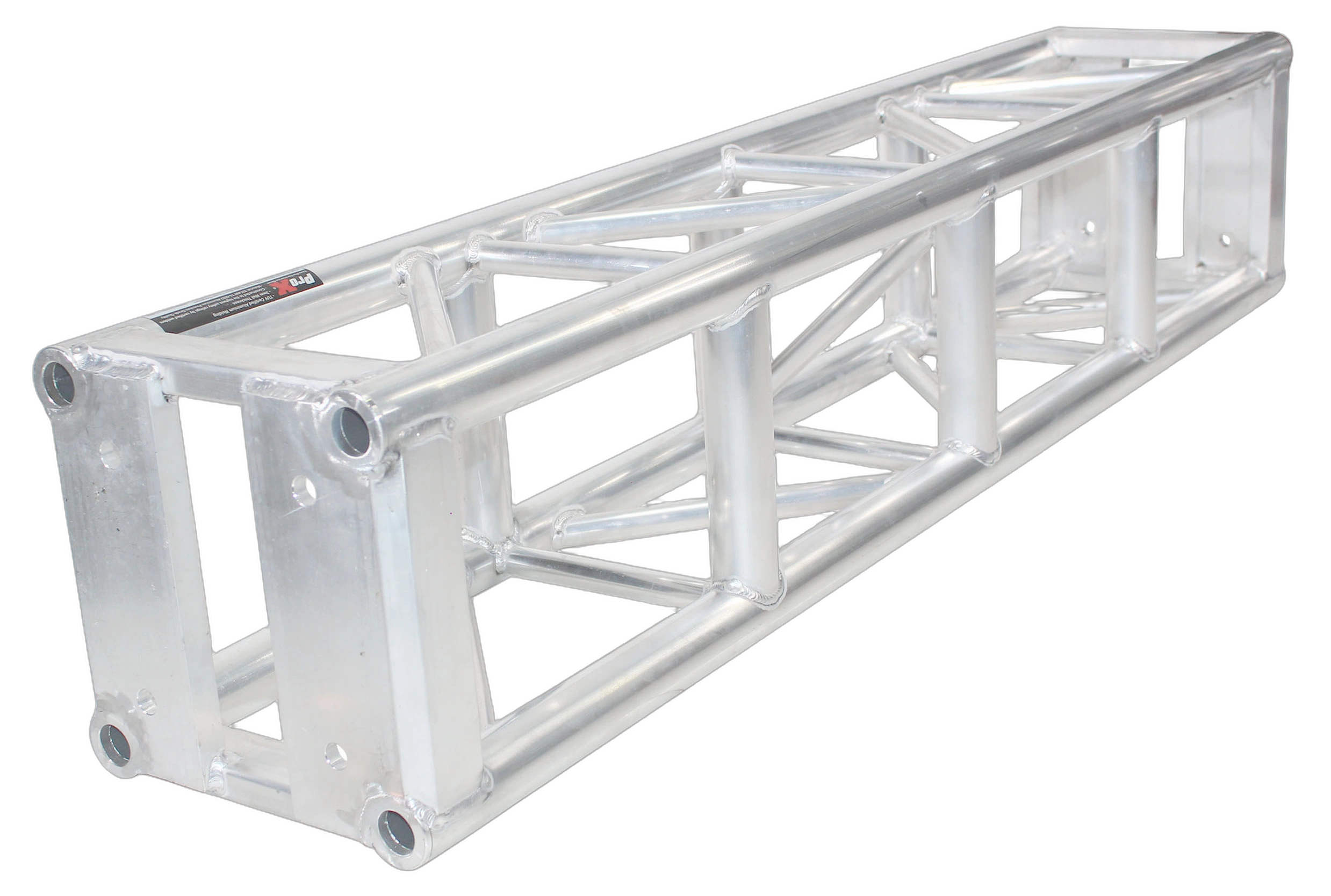

The ProX XT-BT1205 MK2 is a 5-foot section of the BoltX professional box truss system, engineered for demanding production environments including stage lighting rigs, live concerts, and structural obstacle course builds. The truss features heavy-duty aluminum end plates welded on both sides for superior joint integrity, along with exclusive circular corner protection rings that minimize damage to main chord ends during transport and handling. Compatibility with most 12-inch professional box truss manufacturers utilizing a 6.75-inch bolt center pattern makes this segment a practical choice for integrators working across mixed-brand systems. It is well suited for touring production companies, system integrators, venues, and event staging professionals.

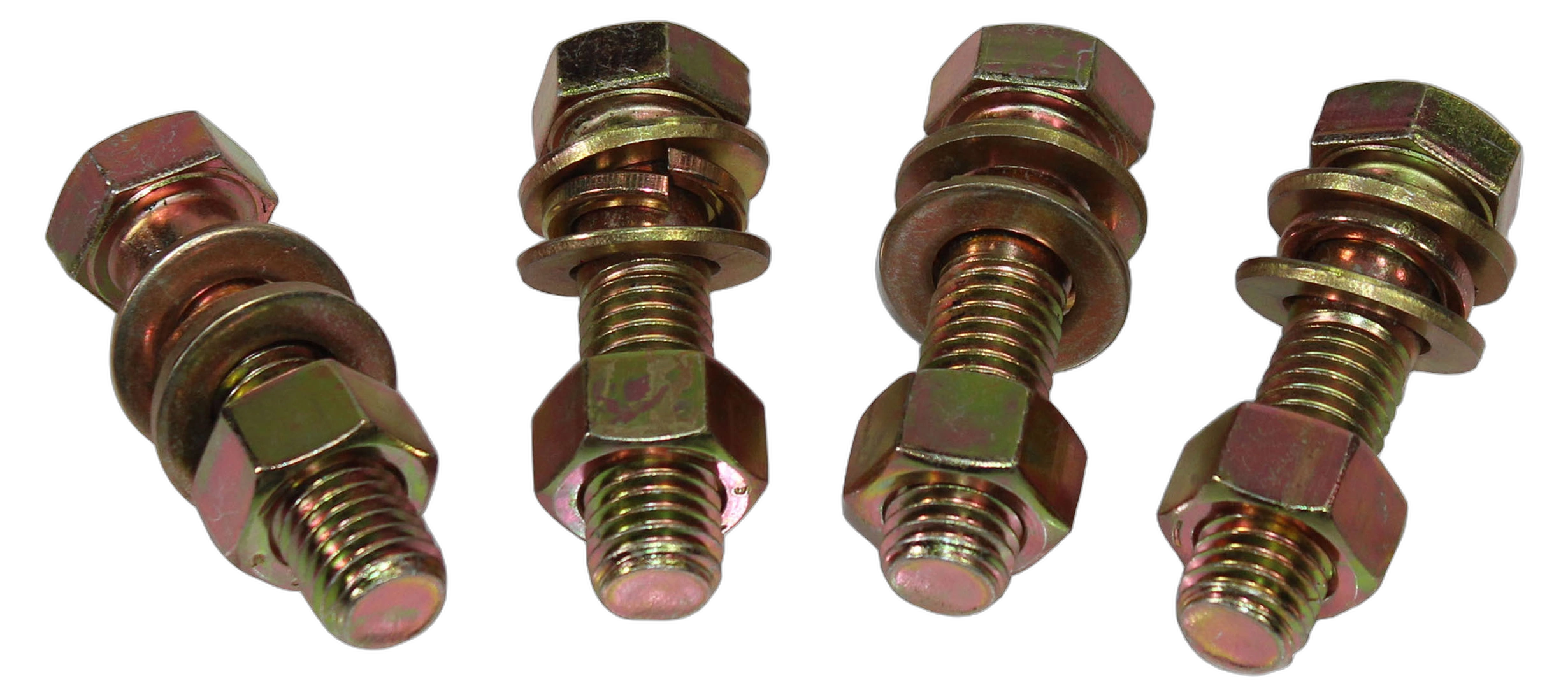

Each segment ships with a complete hardware set including four 5/8″-11 x 2.5″ (NC) attachment bolts, nuts, and flat and lock washers, enabling straightforward assembly without sourcing additional fasteners.
Key Features

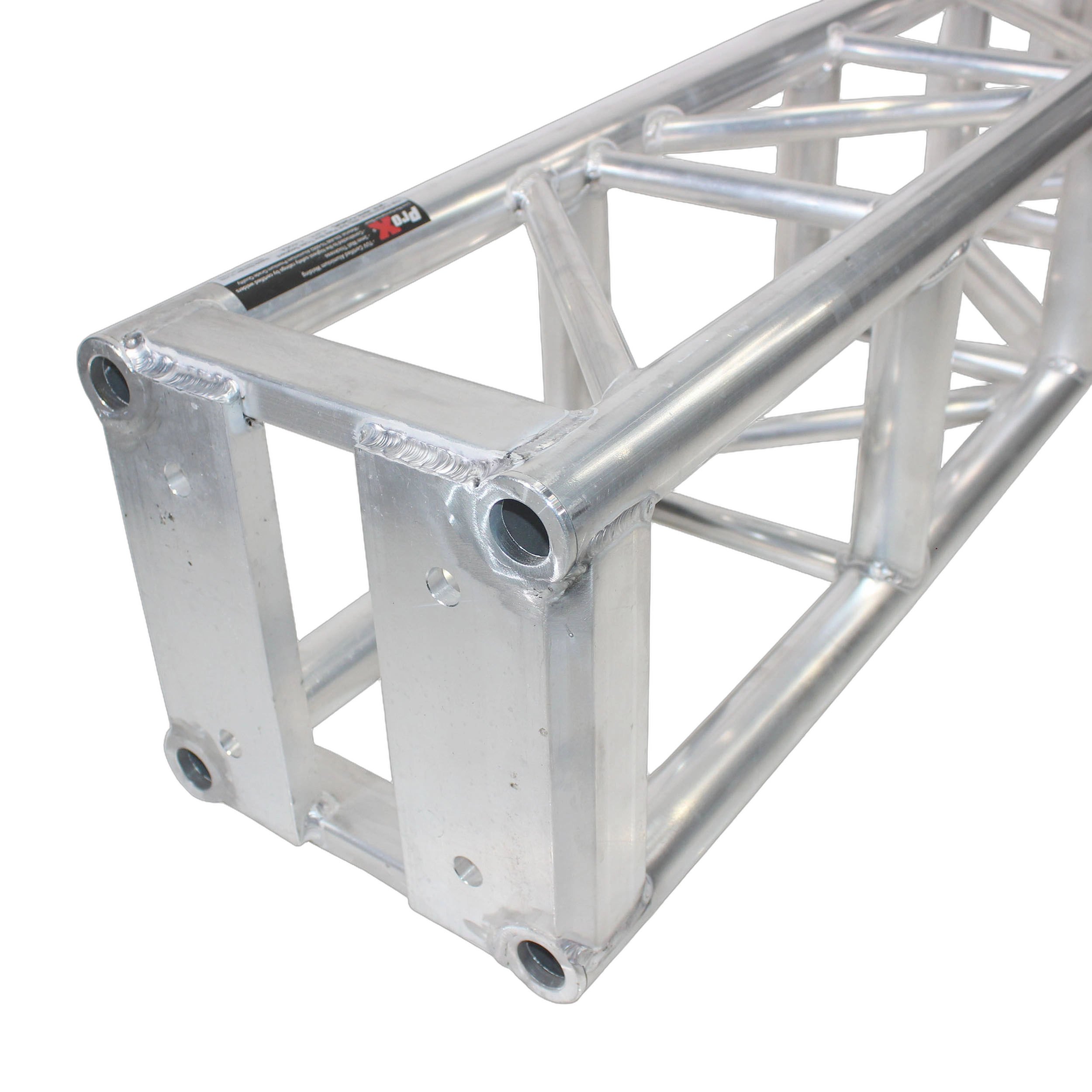

- Heavy-Duty Welded Aluminum End Plates — Constructed from heavy-duty aluminum and welded on both sides for superior structural strength at every connection point
- Exclusive Corner Protection Rings — Circular rings at each corner reduce or eliminate damage to main chord tube ends from drops or dragging on concrete surfaces
- 6.75″ Bolt Center Pattern Compatibility — Interfaces with most 12-inch professional box truss manufacturers, providing flexibility in mixed-system configurations
- 3mm Wall Construction — Consistent wall thickness throughout the segment for predictable structural performance
- Precision-Fit Connections — Quality-controlled manufacturing ensures each connection fits seamlessly for efficient, repeatable setups
- Complete Hardware Included — Each section includes one set of four 5/8″-11 x 2.5″ (NC) bolts, nuts, flat washers, and lock washers
- Broad Application Range — Suitable for stage lighting, concert production, and structural builds requiring certified box truss performance
