ProX XT-BTBP30A BoltX™ 30″ Aluminum Base Plate — Raised Frame for 12″ & 16″ Box Truss and F34 Truss Systems
XT-BTBP30A Overview

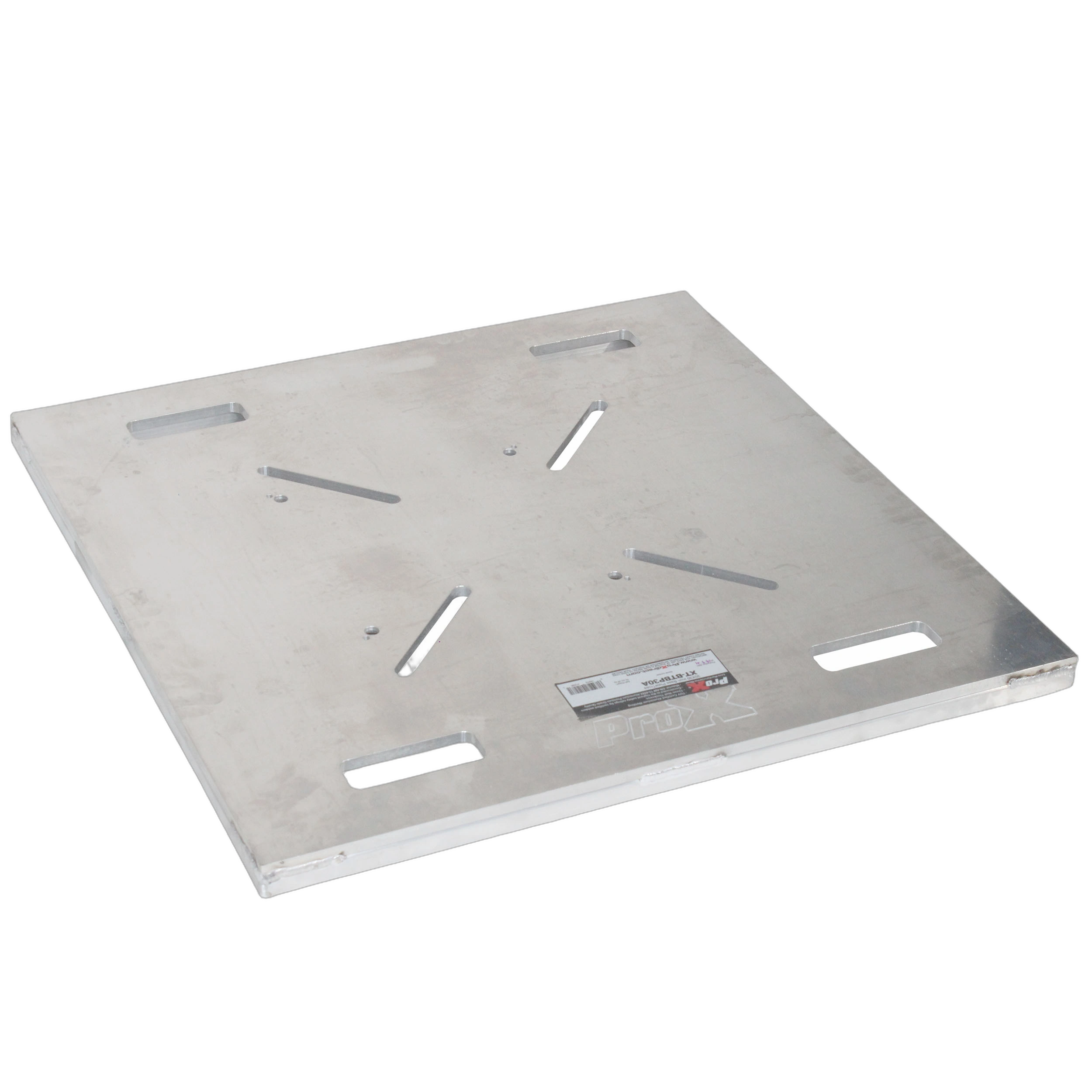

The ProX XT-BTBP30A BoltX™ base plate is a professional-grade truss foundation designed for demanding production environments including concerts, stage lighting rigs, trade show displays, houses of worship, and touring installations. Constructed from a 1/2″ aluminum plate welded to a 1″ raised frame, it delivers the rigidity and load integrity required for repeated use across rental and permanent installation workflows. The plate is drilled to mate with ProX BoltX™ 12″ and 16″ bolted box truss systems as well as F34 truss patterns, and its industry-standard 6.75″ x 6.75″ bolt pattern extends compatibility to many other 12-inch professional box truss manufacturers using the same bolt-center spacing. This makes the XT-BTBP30A a practical solution for system integrators, production companies, and riggers managing mixed truss inventories.
Four integrated hand holes simplify on-site handling and positioning, while slotted and drilled mounting options allow for center or offset configurations to accommodate a variety of structural setups. Each unit ships with a complete hardware set including four 5/8″-11 attachment bolts, nuts, flat washers, and lock washers.
Key Features

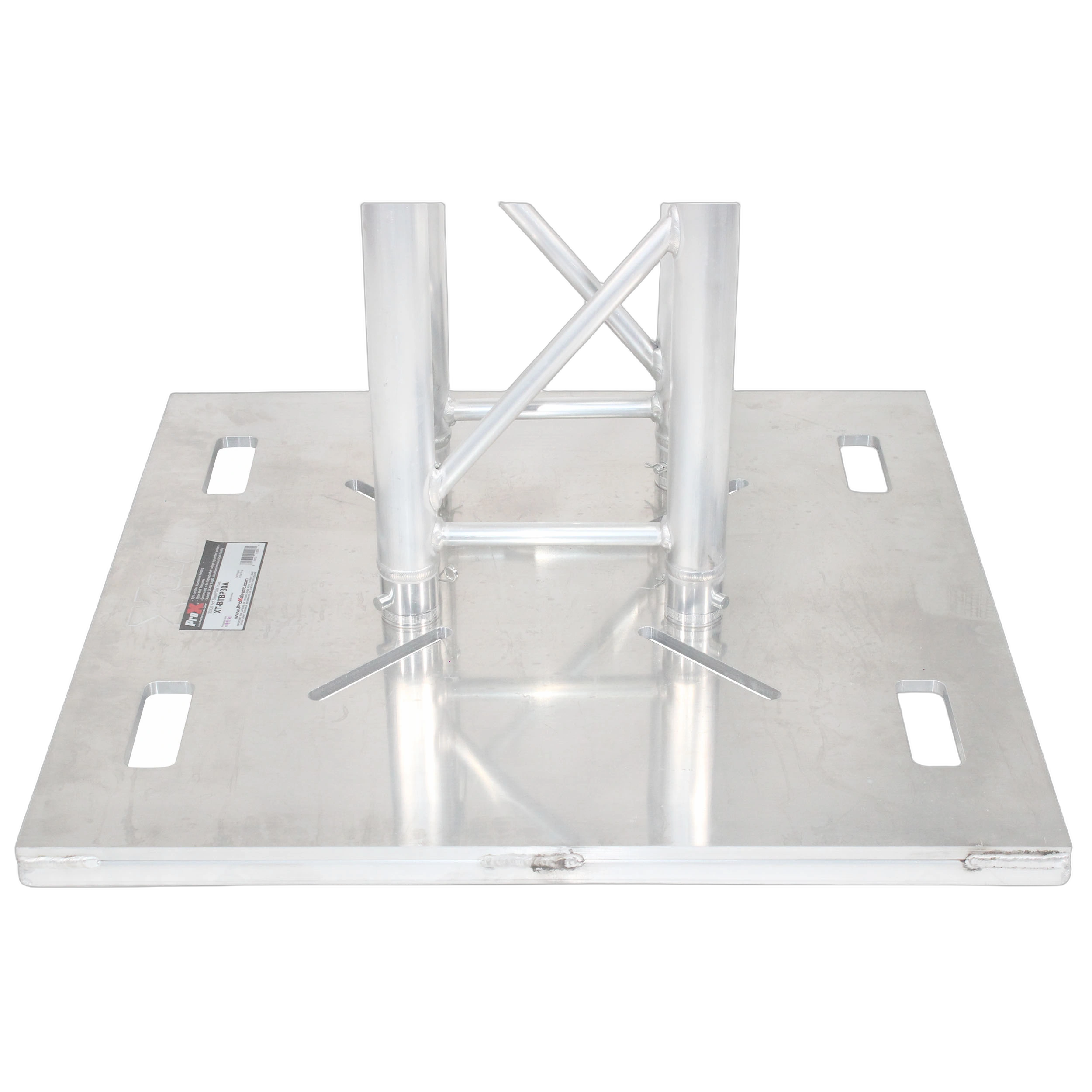

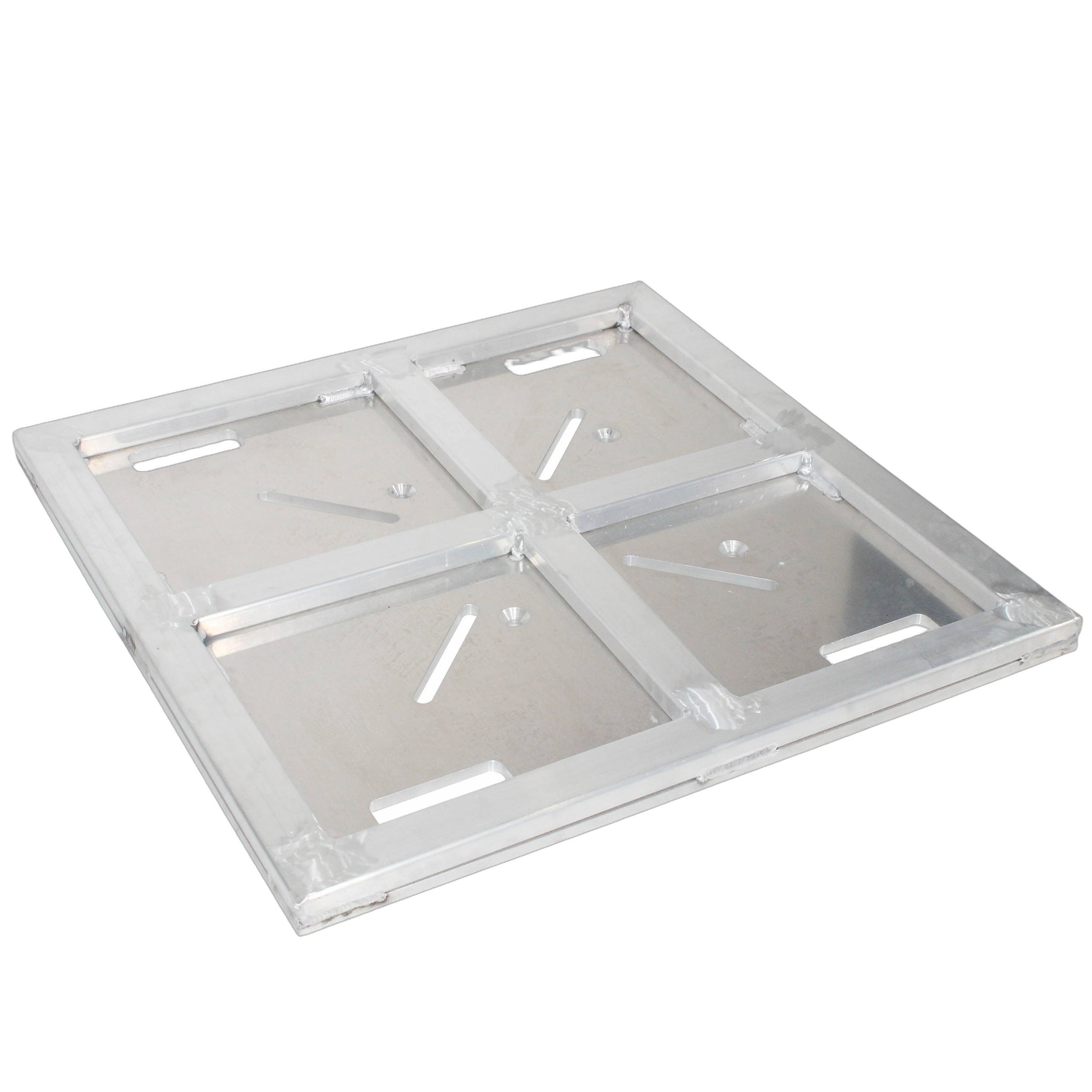

- 1/2″ Aluminum Plate with 1″ Raised Frame — Welded construction adds structural rigidity and durability for repeated touring and rental use
- TÜV-Certified Welding — Welded to TÜV standards using 6082-T6 alloy by GSI SLV-certified welders, ensuring professional-grade workmanship and quality assurance
- Load Tested & Inspected — Each unit undergoes load testing and quality control inspection during production

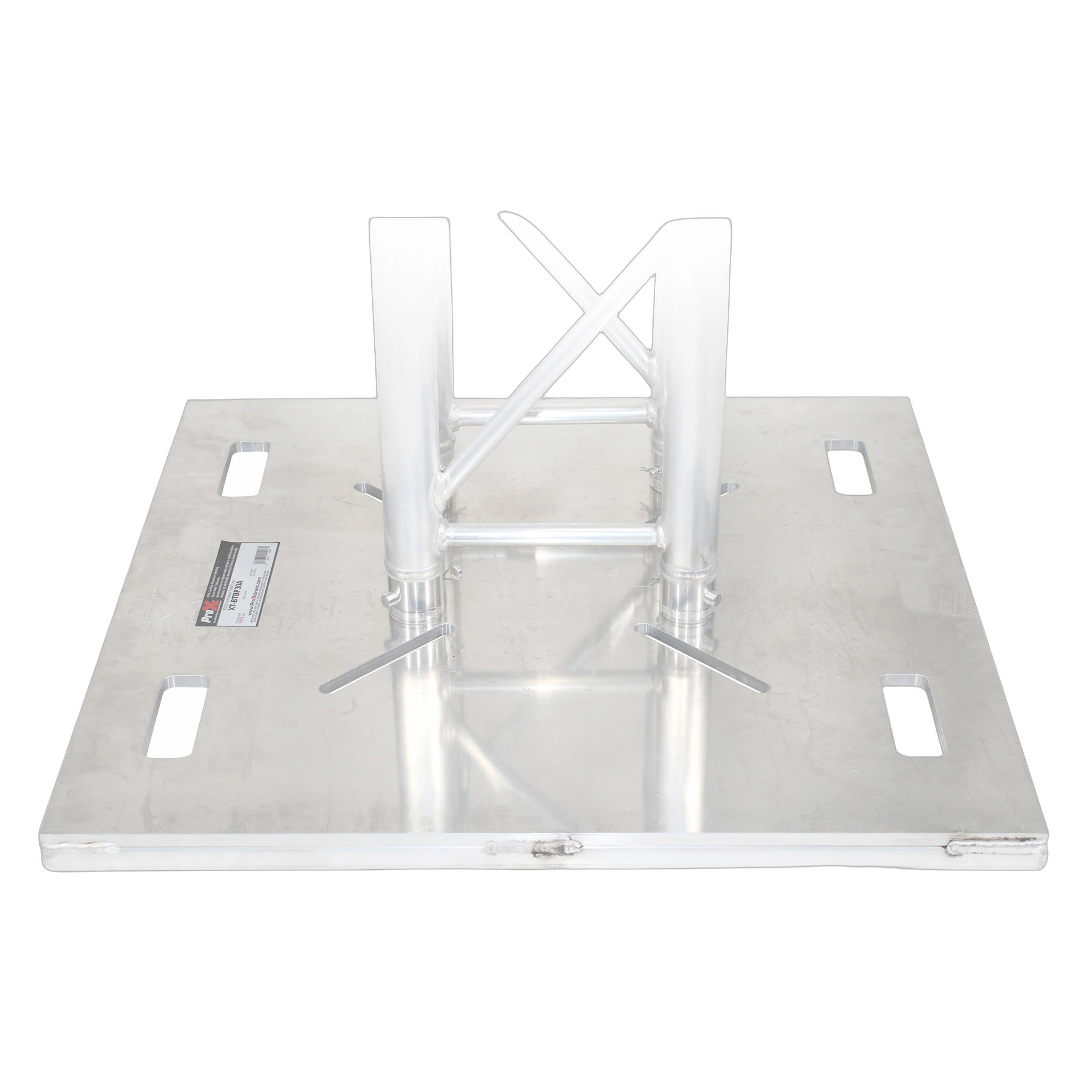

- Compatible with ProX BoltX™ 12″ & 16″ Box Truss — Engineered for direct fitment with ProX bolted box truss systems
- F34 Truss Pattern Drilling — Additional drilling accommodates F34 truss systems for increased versatility across mixed inventories
- Industry-Standard 6.75″ x 6.75″ Bolt Pattern — Broadens compatibility to many third-party 12-inch professional box truss manufacturers using the same bolt-center spacing

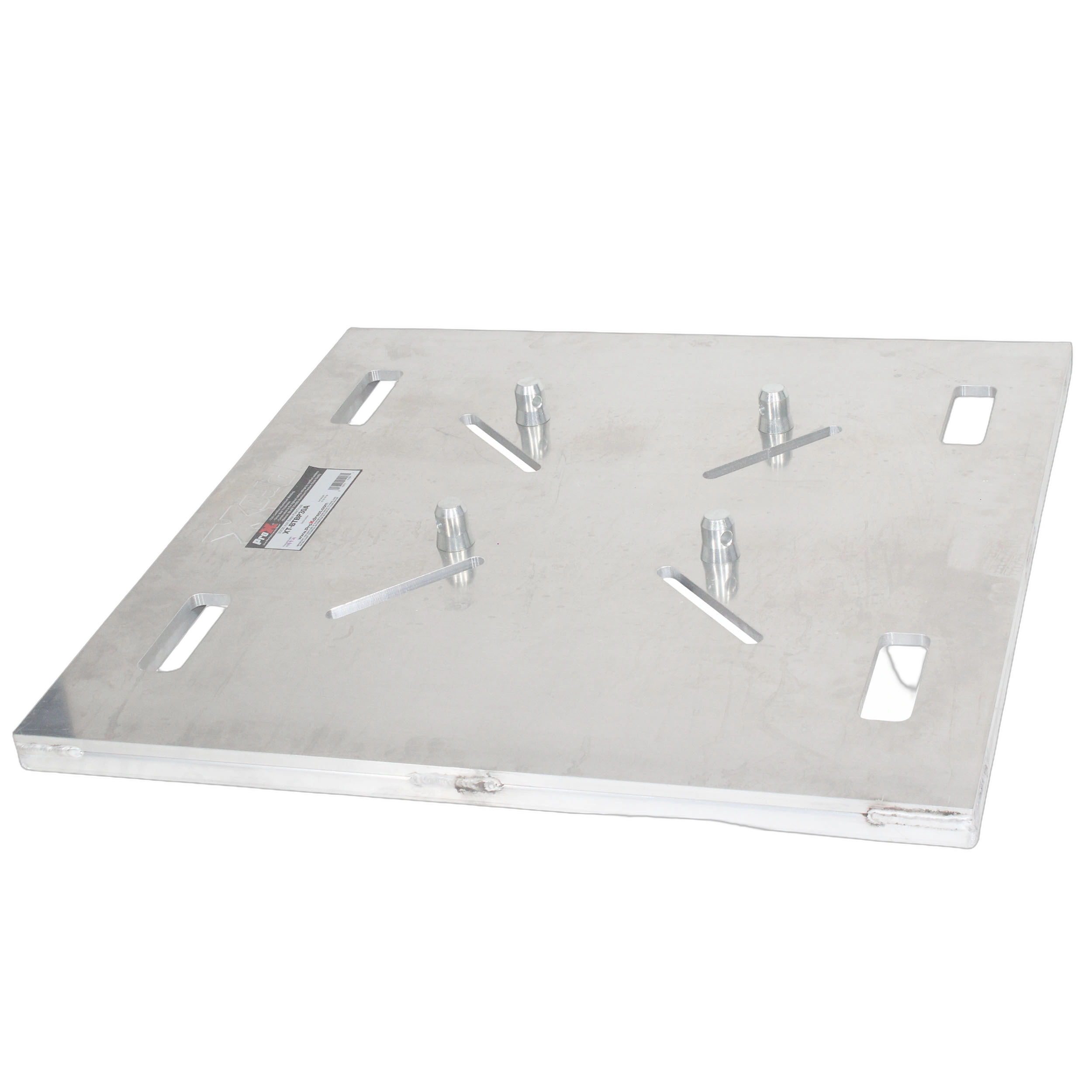

- Slotted & Drilled for Center or Offset Mounting — Provides setup flexibility for a range of structural configurations

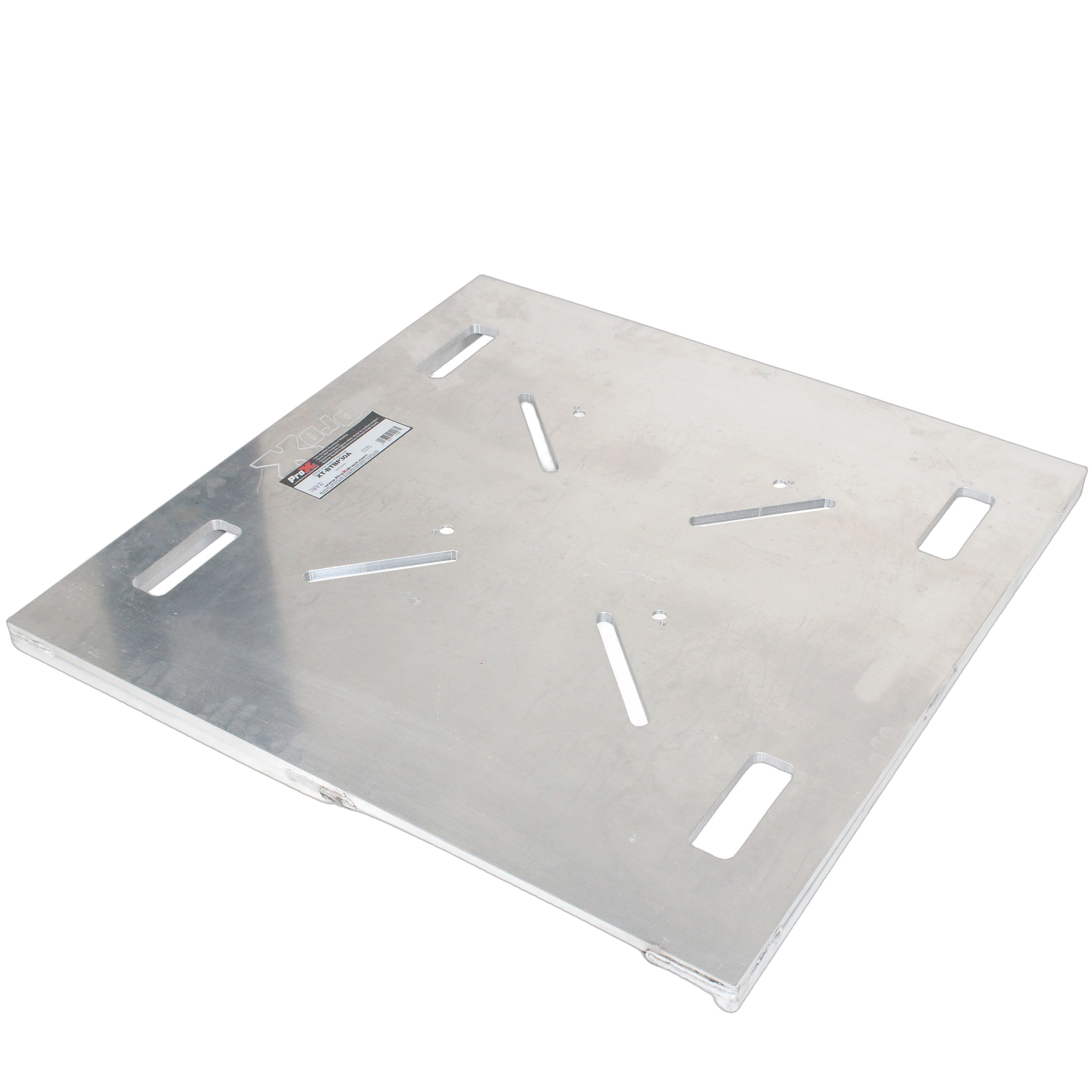

- Four Integrated Hand Holes — Facilitates safe and efficient lifting and positioning on the job site
- Complete Hardware Included — Ships with four 5/8″-11 attachment bolts, nuts, flat washers, and lock washers
