FBT VENTIS 112MA 1×12″ Active Powered Stage Monitor Wedge

FBT VENTIS 112MA — Bi-Amplified Active Coaxial Stage Monitor

VENTIS 112MA Overview

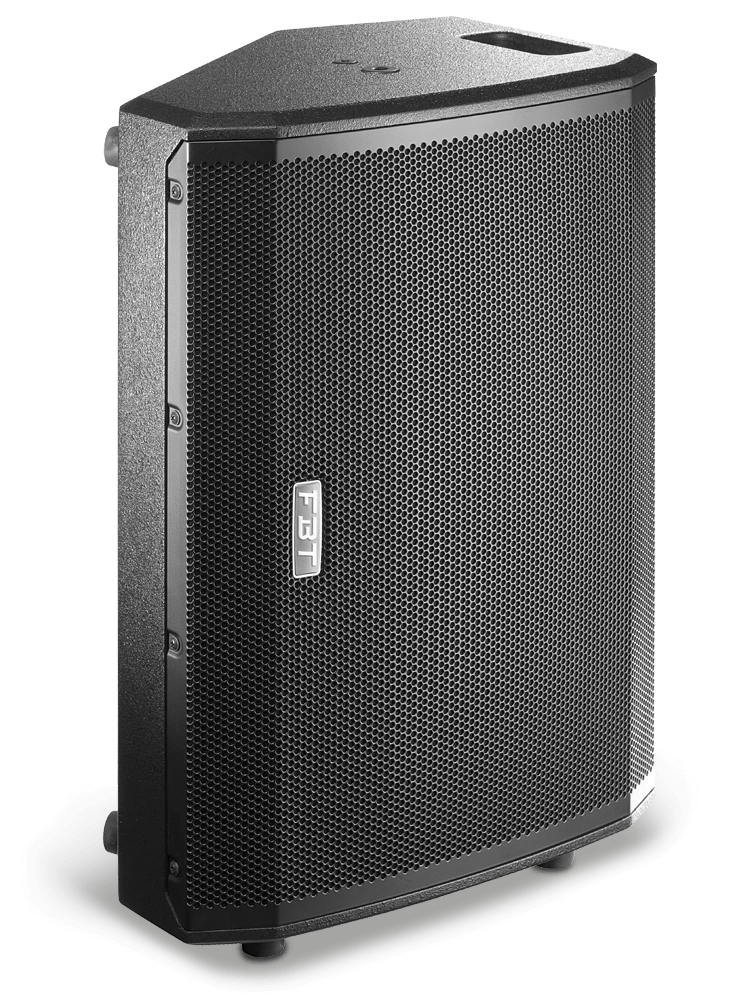

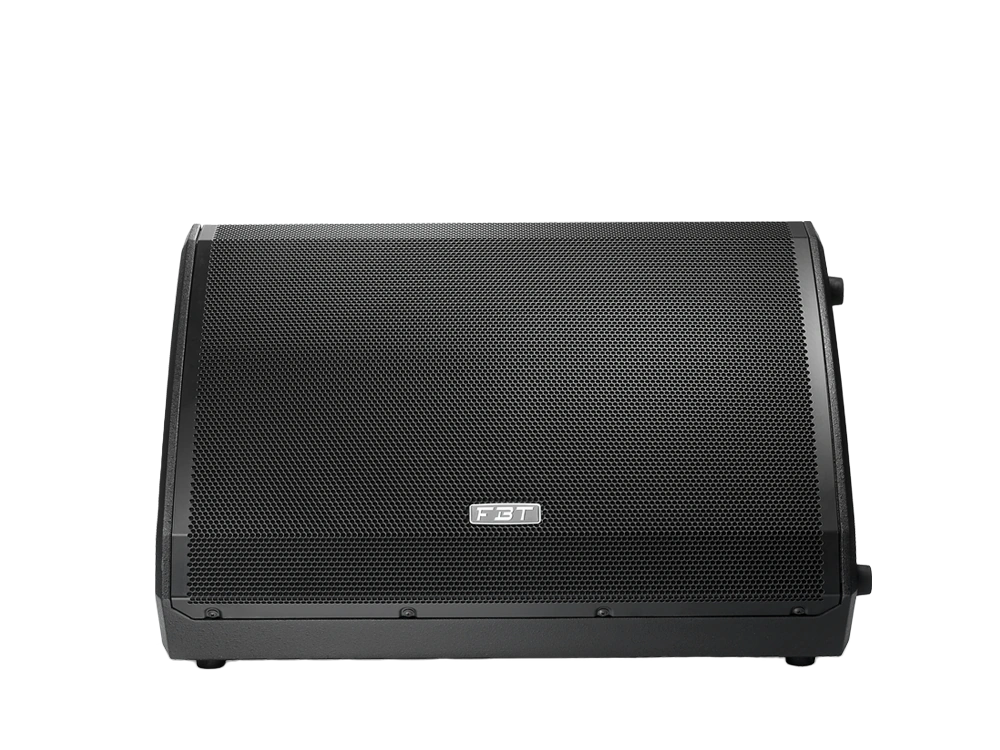

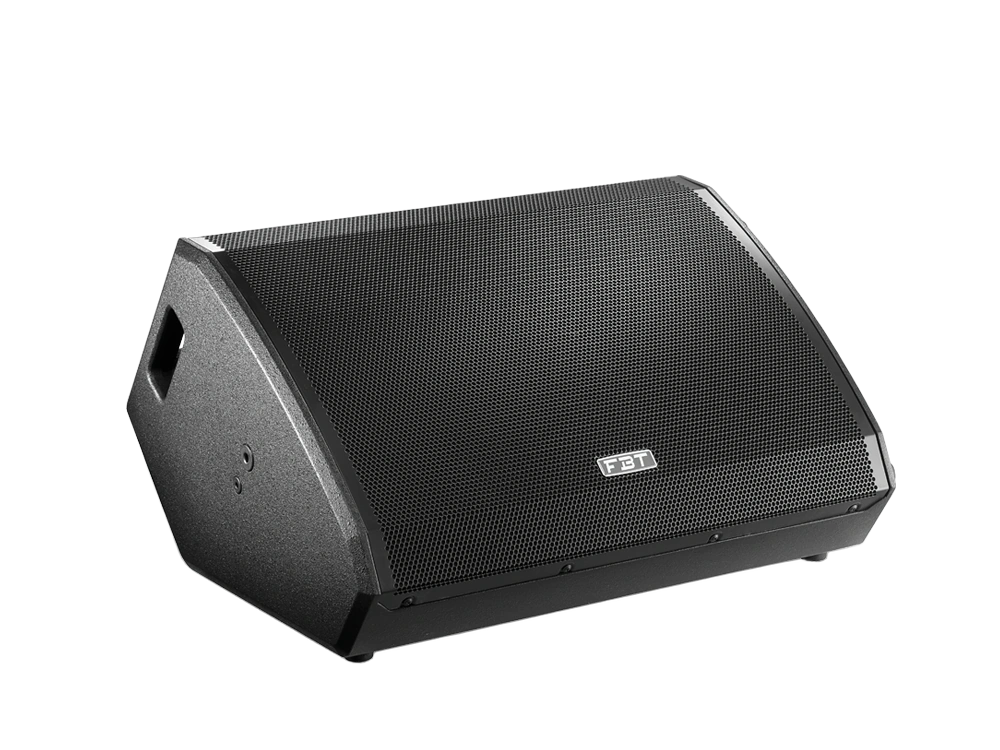

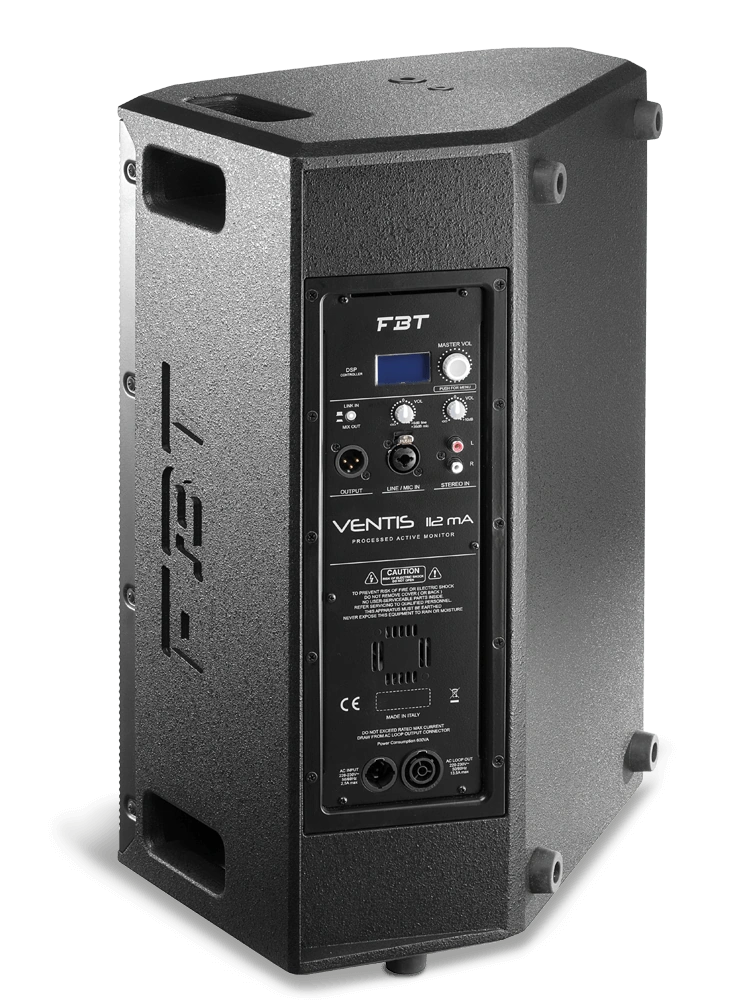

The FBT VENTIS 112MA is a bi-amplified active stage monitor designed for professional live sound, touring, and fixed installation applications. At its core is a coaxial 12″ LF / 1″ HF driver configuration delivering 90° constant directivity across the listening area, with peak SPL output reaching 126/132 dB and a frequency response of 55Hz to 20kHz. Power is provided by an Italian-designed switching mode Class-D amplifier module rated at 700W LF / 200W HF RMS, paired with B&C custom transducers. The VENTIS 112MA is suited for monitor engineers, system integrators, touring companies, and venues requiring a versatile, high-output wedge solution.

The cabinet is constructed from birch plywood with internal bracing and a scratch-resistant finish, offering structural integrity for road use. Dual wooden handles facilitate transport, while a 1.38″ pole mount socket and inserts for an optional U bracket provide flexible deployment as a stage monitor wedge or front-of-house speaker on a stand.

Key Features

• Coaxial Driver Configuration — 12″ LF and 1″ HF drivers in a coaxial arrangement for precise, time-aligned coverage across the listening area
• 90° Constant Directivity — consistent coverage pattern for reliable monitor mixes at the performer position
• High SPL Output — up to 126 dB continuous / 132 dB peak SPL for high-headroom stage monitoring in loud environments
• Class-D Bi-Amplification — Italian-designed switching mode amplifier module delivering 700W RMS (LF) and 200W RMS (HF) in a compact, efficient topology
• B&C Custom Transducers — purpose-built drivers specified and matched to the VENTIS 112MA enclosure for optimized performance
• Birch Plywood Cabinet with Internal Bracing — scratch-resistant enclosure engineered for structural rigidity and road durability
• Flexible Deployment Options — 1.38″ pole mount socket and inserts for optional U bracket allow use as a stage wedge, FOH speaker on a stand, or fixed installation
• Integrated Transport Handles — two wooden handles for secure, ergonomic handling during load-in and load-out
