FBT VENTIS 112 — Passive 1×12″ Point Source Install Loudspeaker
VENTIS 112 Overview

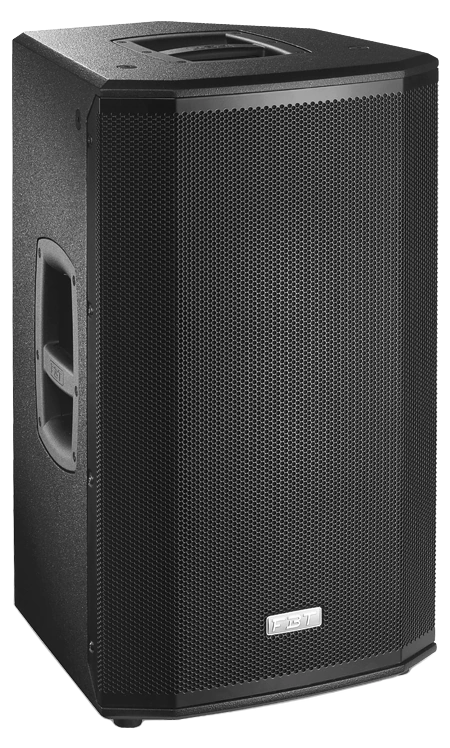

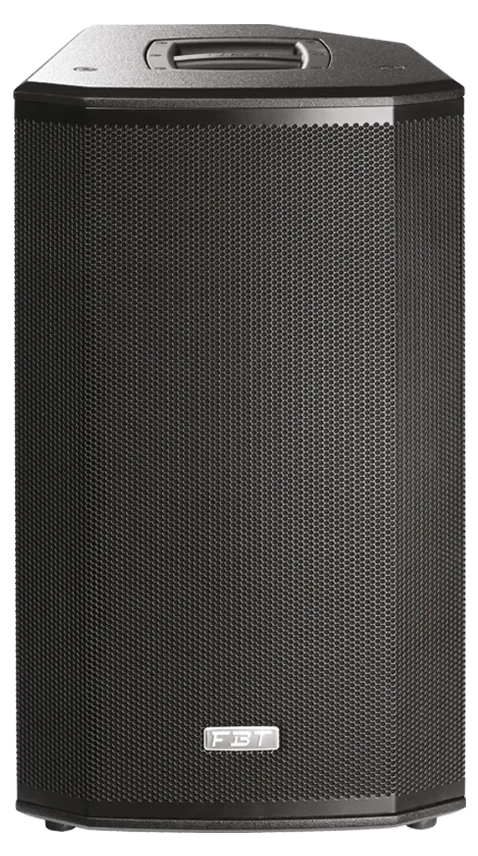

The FBT VENTIS 112 is a passive two-way point source loudspeaker built for permanent installation environments where controlled dispersion and structural reliability are essential. The enclosure pairs a 12″ LF woofer with a 1″ HF driver and a rotatable constant directivity horn delivering an 80° H x 50° V dispersion pattern, with peak SPL output reaching 125/129 dB in the listening area. A frequency response of 55 Hz to 18 kHz covers the full range of speech and music reproduction without supplemental processing. The VENTIS 112 is well suited for system integrators, houses of worship, venues, and touring companies requiring a rugged, riggable passive cabinet.
The birch plywood cabinet features a scratch-resistant finish and internal bracing for long-term durability, while the rotatable horn allows the enclosure to be oriented horizontally or vertically without sacrificing dispersion performance.
Key Features
- Rotatable Constant Directivity Horn — 80° H x 50° V dispersion pattern, repositionable for horizontal or vertical cabinet orientation to maintain consistent coverage geometry
- 12″ LF / 1″ HF Two-Way Configuration — Point source design delivers coherent, time-aligned output across the full frequency range from 55 Hz to 18 kHz
- Up to 125/129 dB SPL Output — High output capability suited for medium to large venue coverage without additional amplification headroom concerns
- Built-In Passive Crossover with Soft-Trip Protection — Integrated crossover network includes soft-trip protection for both the LF woofer and HF driver, reducing the risk of driver damage under high-level operation
- Recommended Amplifier Power: 400W RMS — Designed to be driven by a dedicated external amplifier at the specified power rating for optimal performance
- 6 x M10 Rigging Points — Full suspension capability via six M10 rigging points allows flexible flown deployment in permanent or touring installation scenarios
- Birch Plywood Cabinet with Internal Bracing — Scratch-resistant enclosure construction provides structural integrity and acoustic rigidity for demanding installation environments
Technical Specifications
| Configuration | 2-way passive point source |
| LF Driver | 12″ |
| HF Driver | 1″ |
| Frequency Response | 55 Hz – 18 kHz |
| Dispersion Pattern | 80° H x 50° V (constant directivity) |
| Maximum SPL | 125/129 dB |
| Recommended Amplifier Power | 400W RMS |
| Rigging | 6 x M10 rigging points |
| Cabinet Material | Birch plywood with internal bracing |
| Crossover | Built-in passive with soft-trip protection (LF and HF) |
