Acue Lighting Magic 7 IP — Compact IP65 Outdoor LED Par
Magic 7 IP Overview

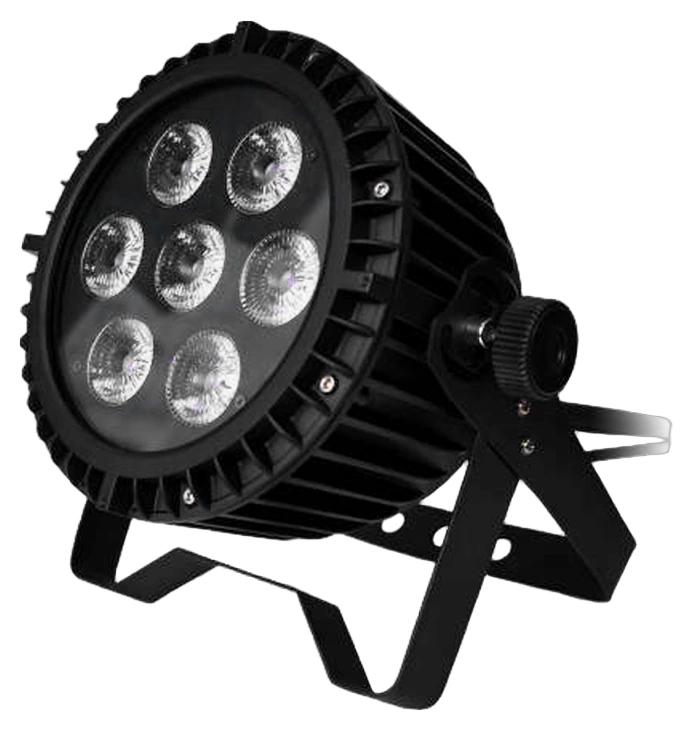

The Acue Lighting Magic 7 IP is the smallest fixture in Acue’s outdoor IP-rated par lineup, purpose-built for professional exterior and all-weather wash lighting. The fixture is powered by 7x10W RGBWW LEDs delivering red, green, blue, and warm white color mixing, and is fitted with 45° lenses for a perfectly even color wash across the coverage area. With an IP65 rating covering both the fixture body and all power and data connections, it is fully rated for indoor and outdoor deployment. It is well suited for touring productions, fixed installations, houses of worship, and venue architectural lighting.
The Magic 7 IP draws 80 watts total and accepts a wide input voltage range of 110-220V AC 50/60Hz, making it compatible with international power standards and straightforward to integrate into existing power distribution systems.
Key Features
- IP65-Rated Fixture and Connections — Full IP65 protection on the fixture body, power in/out, and data in/out connectors for reliable outdoor and all-weather use
- 7x10W RGBWW LED Array — Red, green, blue, and warm white LEDs provide broad color mixing capability including warm white tones
- 45° Lenses — Factory-fitted 45° lenses produce a uniform, even color wash without hot spots
- Multiple Operating Modes — Supports DMX, auto-program, and master/slave modes for flexible deployment in both controlled and standalone environments
- 8-Channel DMX Control — Full 8-channel DMX operation for precise parameter control from any standard DMX console
- Linear Dimmer Control — 0-100% linear dimming available via DMX or manual control
- Shutter Strobe — Strobe speed control accessible via maximum or manual settings
- Wide Voltage Compatibility — 110-220V AC 50/60Hz input accommodates domestic and international power standards

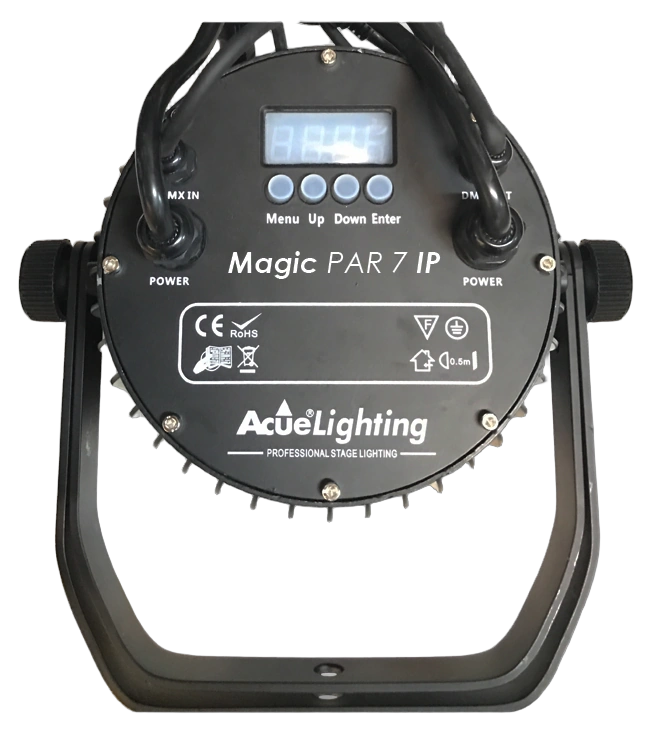

Connectivity & I/O
- IP65-rated power input connector
- IP65-rated power output connector (power pass-through)
- IP65-rated DMX data input connector
- IP65-rated DMX data output connector
Technical Specifications
| Light Source | 7x10W RGBWW Red, Green, Blue, Warm White LEDs |
| Total Power Draw | 80 Watts |
| Input Voltage | 110-220V AC 50/60Hz |
| IP Rating | IP65 (rated for indoor or outdoor use) |
| Operating Modes | DMX, Auto Program, Master/Slave |
| DMX Channels | 8 Channels |
| Dimmer | 0-100% Linear Dimmer control by DMX or Manual |
| Shutter | Strobe speed control via max or manual |
| Connection Plugs | IP65-rated power in/out, IP65-rated data in/out |
