Acue Lighting Magic 21 RGBW — Professional LED Slim Par Wash Fixture
Magic 21 RGBW Overview
The Acue Lighting Magic 21 RGBW is a high-output LED slim par fixture built for professional color wash applications across a wide range of installations and live production environments. Powered by 21x10W RGBW LEDs with a rated lifespan of 50,000 hours, this fixture delivers consistent, full-spectrum color mixing suitable for stages, houses of worship, touring rigs, and permanent venue installs. With 8 DMX channels and multiple operation modes, it integrates cleanly into both simple and complex lighting systems. It is well suited for lighting designers, system integrators, and production companies requiring reliable, controllable wash fixtures.
The Magic 21 RGBW features PowerCon power input connectors and a universal voltage range of 95–240V AC, making it compatible with a broad range of power infrastructure. Its slim par form factor simplifies rigging and positioning in tight spaces.
Key Features
- 21x10W RGBW LED Array — Red, Green, Blue, and White LEDs provide full-spectrum color mixing with a 50,000-hour rated LED lifespan
- Multiple Operation Modes — Supports DMX, Auto-Program, Master/Slave, and Sound Active modes for flexible deployment in any production scenario
- 8-Channel DMX Control — 3-pin DMX in/out connections allow straightforward integration into existing DMX lighting rigs
- Linear Dimming — 0–100% linear dimmer control available via DMX or the fixture’s built-in control interface
- Adjustable Shutter Strobe — Strobe effect adjustable through DMX or built-in control for dynamic lighting effects
- Universal Voltage Input — 95–240V AC 50/60Hz input with PowerCon connectors ensures compatibility across international power standards
- 270W Total Power Draw — Predictable power consumption simplifies circuit planning for multi-fixture installations
- Indoor-Rated (IP19) — Designed for indoor use in controlled environments including stages, sanctuaries, and event venues

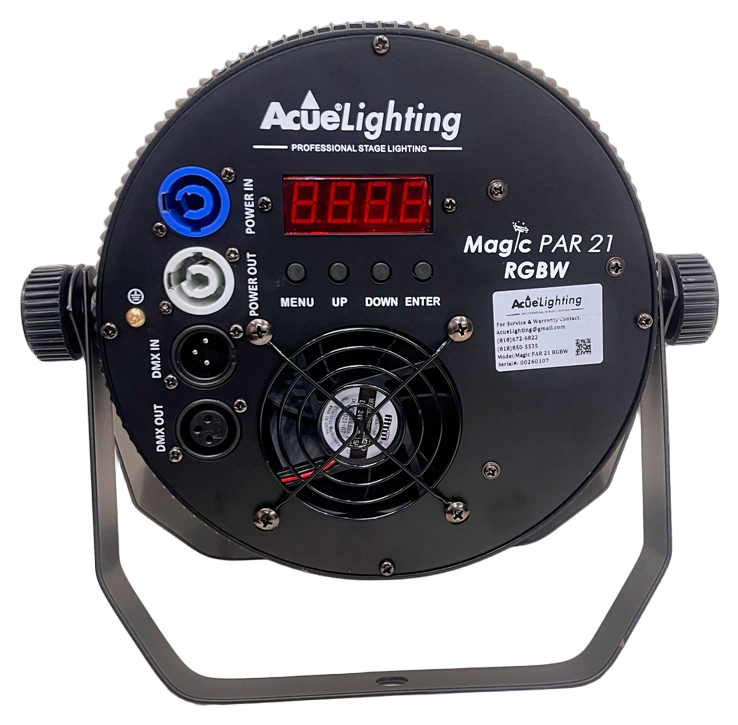

Connectivity & I/O
- 3-pin DMX input connector
- 3-pin DMX output connector (for daisy-chaining)
- PowerCon power input connector
Technical Specifications
| Light Source | 21x10W RGBW Red, Green, Blue, White LEDs (50,000 hrs.) |
| Operating Modes | DMX, Auto-Program, Master/Slave, Sound Active |
| DMX Channels | 8 Channels, 3-pin DMX in/out connections |
| Dimmer | 0–100% linear dimming control by DMX or built-in control |
| Shutter | Strobe adjustable by DMX or built-in control |
| Total Power Draw | 270 Watts |
| Input Voltage | 95–240V AC 50/60Hz, PowerCon power input connectors |
| IP Rating | IP19 (indoor use only) |
