FBT SHADOW 142L — Weatherproof Passive 2-Way Line Array Install Speaker
SHADOW 142L Overview

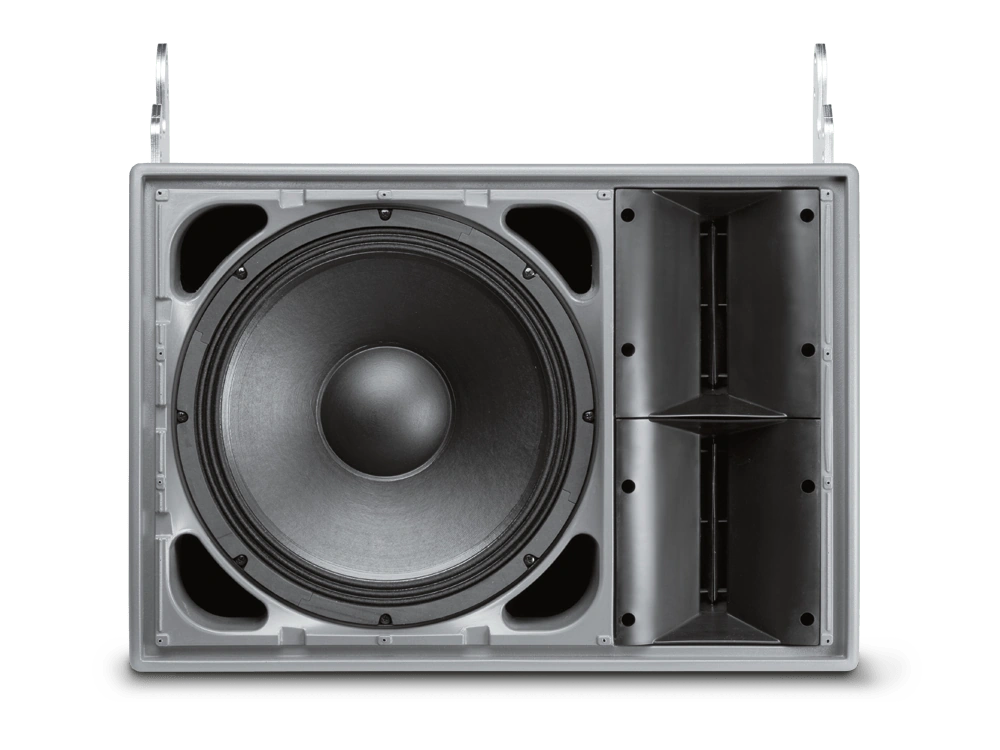

The FBT SHADOW 142L is a full-range passive 2-way loudspeaker system built for demanding large-scale outdoor installations where high SPL, long-throw coverage, and environmental durability are non-negotiable. Its IP55-rated rotomolded polyethylene enclosure withstands exposure to moisture, dust, and harsh weather, making it a reliable choice for stadiums, theme parks, swimming pools, and open-air arenas. The coaxial line array configuration combines a 14″ woofer with a 3″ voice coil and two 1.4″ HF drivers with 2.5″ voice coils mounted on a constant directivity horn, delivering controlled, uniform coverage across distance. System integrators and install engineers specifying permanent outdoor sound reinforcement will find the SHADOW 142L purpose-built for the task.
The enclosure integrates a 3-layer water-stop grille and Souriau connectors, supporting reliable long-term deployment in fixed installations where serviceability and weatherproofing are critical.
Key Features
- IP55 Weatherproof Protection — Rotomolded polyethylene enclosure rated IP55 for resistance to dust ingress and water jets, suitable for permanent outdoor installation
- 14″ Low-Frequency Driver — 14″ woofer equipped with a 3″ voice coil for high-SPL, long-throw bass reproduction in large venues
- Dual 1.4″ HF Compression Drivers — Two high-frequency drivers with 2.5″ voice coils deliver extended high-frequency output and headroom
- Constant Directivity Horn — 100° horizontal by 15° vertical dispersion pattern provides controlled, predictable coverage suited to line array deployment
- Line Array Configuration — Designed for vertical arraying to achieve uniform SPL distribution over long throw distances in large outdoor environments
- 3-Layer Water-Stop Grille — Multi-layer grille construction provides additional protection against water ingress while maintaining acoustic transparency
- Souriau Connectors — Industrial-grade Souriau connectors ensure secure, weatherproof signal connections for permanent install applications
- Rotomolded Polyethylene Enclosure — Impact-resistant, UV-stable enclosure construction suited for long-term outdoor exposure without degradation
Technical Specifications
| Configuration | 2-Way Passive Line Array |
| Low-Frequency Driver | 14″ woofer, 3″ voice coil |
| High-Frequency Drivers | 2x 1.4″ compression drivers, 2.5″ voice coils |
| Dispersion (H x V) | 100° x 15° (constant directivity horn) |
| Enclosure Material | Rotomolded polyethylene |
| IP Rating | IP55 |
| Connectors | Souriau |
| Grille | 3-layer water-stop grille |
