Acue Lighting Studio Glow — Dual-Source LED & Tungsten Studio Wash Panel
Studio Glow Overview
The Acue Lighting Studio Glow is a versatile dual-source fixture designed for theater, television, and live production environments. It combines a GY9.5 tungsten filament lamp with 5050 RGB LEDs in a single housing, giving lighting designers the ability to blend warm tungsten output with full-color LED effects simultaneously. The 13.5″ model houses a 575W lamp, while the 21.5″ model steps up to 750W. This fixture is well suited for lighting designers, production companies, and broadcast facilities requiring flexible, controllable wash sources.
The Studio Glow supports DMX512 operation with selectable channel modes, on-board dimming, and built-in effects including flicker, flame, and strobe, making it a practical dual-purpose tool that can also function as a blinder.
Key Features

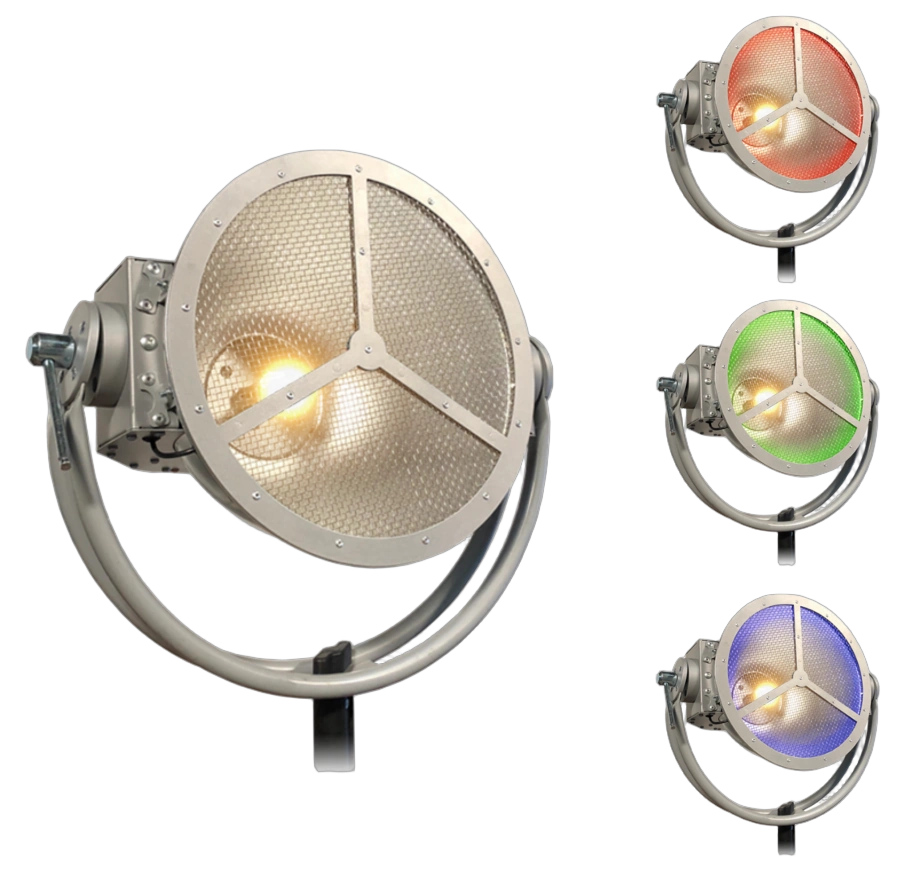

- Dual Light Source — Combines a GY9.5 tungsten filament lamp and 5050 RGB LEDs in one fixture, enabling simultaneous warm white and full-color output for unique layered effects
- Built-In Effects — Onboard flicker, flame, and strobe effects available without external control, suitable for theatrical and broadcast applications
- Color Macros — Pre-programmed color macros accessible via onboard controls for fast setup in live production environments
- DMX512 Control — Selectable 1, 2, 4, or 7-channel DMX modes to match the complexity of any production’s control requirements
- Multiple Dimmer Curves — Linear, S-Curve, and I-Square dimmer curves available to match the dimming response to the application
- Blinder Capability — Fixture can double as a blinder, adding utility in live event and theatrical settings
- Wide Voltage Compatibility — Accepts 120-220V AC at 50/60Hz for use across international touring and installation environments

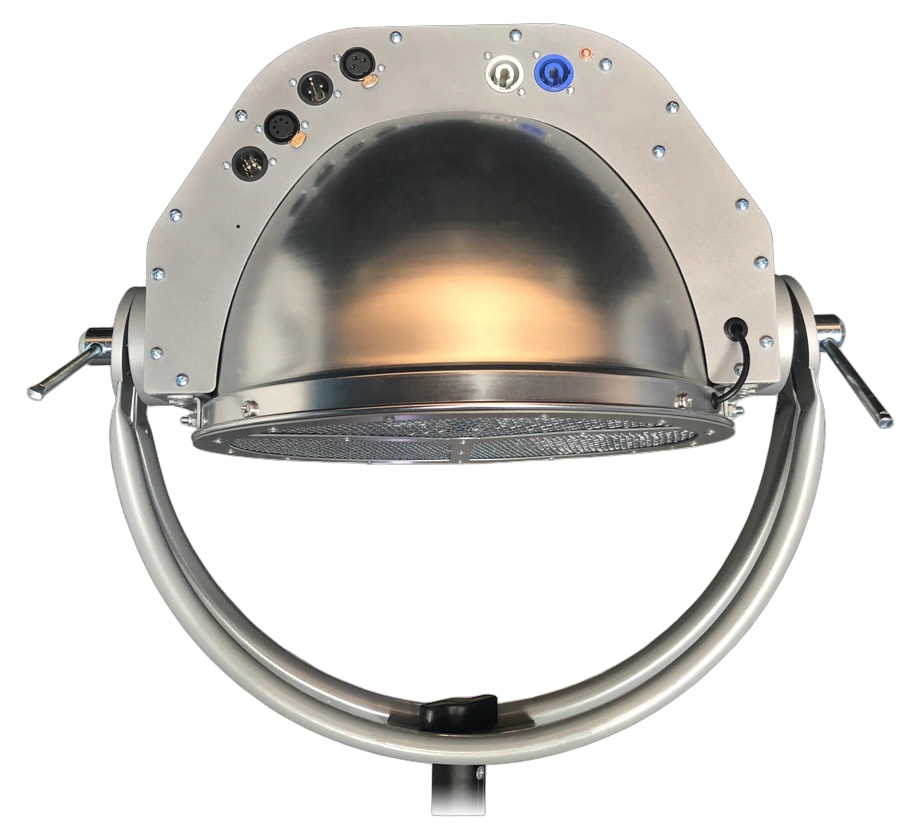

Connectivity & I/O
- DMX In: 3-pin and 5-pin XLR
- DMX Out: 3-pin and 5-pin XLR
Technical Specifications
| Light Source | GY9.5 / 5050 LED |
| Input Voltage | 120-220V AC, 50/60Hz |
| Power Consumption | 21.5″ – 750W / 13.5″ – 575W |
| Control | On-board Dimmer, Static, DMX512 – 1, 2, 4, 7 Ch |
| Dimmer Curves | Linear, S-Curve, I-Square |
| DMX In / Out | 3 & 5 Pin In / Out |
