Acue Lighting Phoenix Tube 360 — Rotating Pixel LED Tube (1.2M)
Phoenix Tube 360 Overview

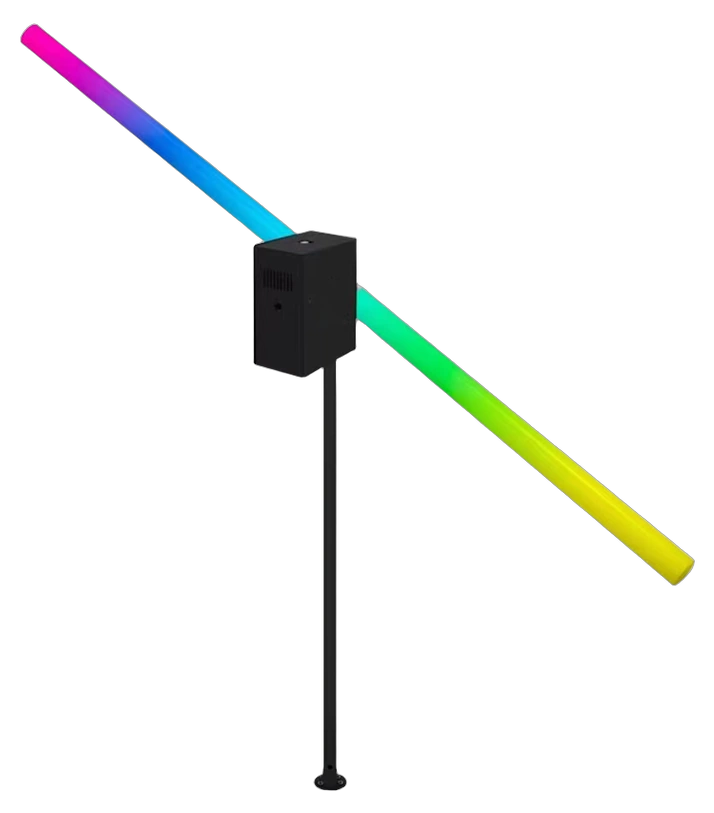

The Acue Lighting Phoenix Tube 360 is a dual-function LED fixture that combines pixel-controllable RGB illumination with a continuously rotating motorized tube, delivering 360-degree light coverage from a single cylindrical unit. The 1.2M configuration houses 30 pixels driven by 180 x 0.25W RGB LEDs across 96 DMX channels, making it well-suited for stage lighting, architectural displays, and dynamic event environments. Operating via DMX or ArtNet with MAD-SHOW and MADRIX compatibility, the Phoenix Tube 360 integrates cleanly into professional lighting control workflows. It is designed for lighting designers, system integrators, touring production companies, and venue installations requiring scalable, visually impactful pixel effects.
The fixture’s built-in AC 100-240V to 24V transformer simplifies deployment across international voltage environments, and its included pedestal along with multiple mounting options provides flexibility for a wide range of installation scenarios. Up to five 1.2M units can be driven per controller universe output, enabling efficient multi-fixture array designs.
Key Features
- 360-Degree Pixel Illumination — Cylindrical LED tube emits light in all directions simultaneously, providing full 360-degree viewing coverage with no dark sides or dead zones
- Continuous Motor Rotation — Specially designed motor enables unlimited rotation in either direction, creating dynamic spinning effects without cable wind-up limitations
- Pixel-Controllable RGB LEDs (1.2M) — 30 individually addressable pixels powered by 180 x 0.25W RGB LEDs for precise, per-pixel color and effect programming
- DMX & ArtNet Control — Supports both DMX and ArtNet protocols with confirmed compatibility for MAD-SHOW and MADRIX software environments
- 96 DMX Channels (1.2M) — Full-resolution channel allocation for detailed pixel mapping, rotation control, and linear 0-100% dimmer control via DMX or ArtNet
- Universal Input Voltage — Built-in AC 100-240V / 50-60Hz to 24V transformer supports worldwide power standards without external conversion

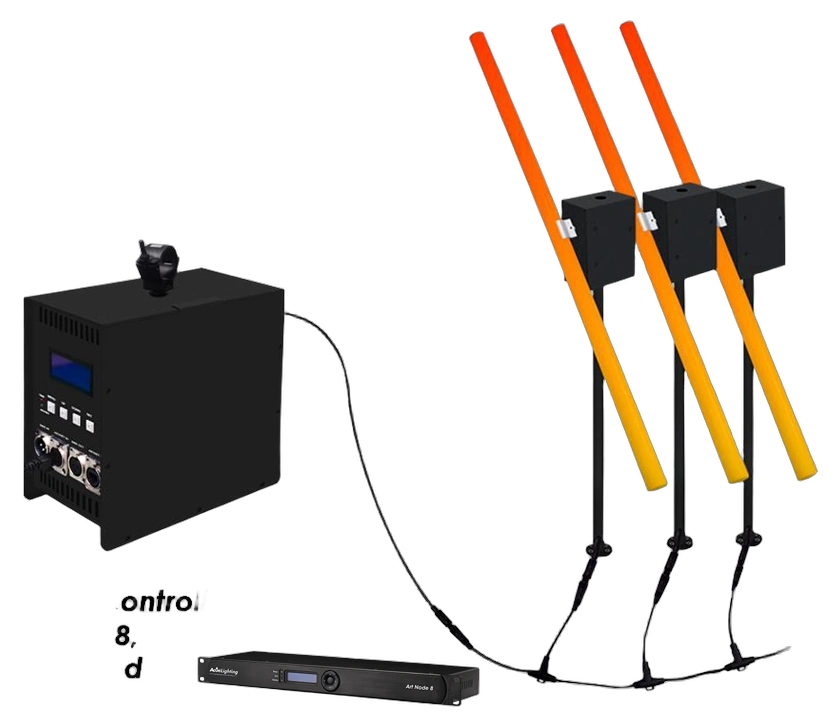

- Scalable Array Design — Up to 5 x 1.2M fixtures supported per controller universe output, enabling efficient multi-unit installations (Power + ArtNet Controller sold separately)
- Flexible Mounting — Multiple mounting configurations supported; pedestal included for immediate floor-stand deployment
Technical Specifications
| Light Source (1.2M) | 30 Pixels — 180 x 0.25W RGB LEDs |
| Operating Modes | DMX & ArtNet (MAD-SHOW & MADRIX compatible) |
| DMX Channels (1.2M) | 96 DMX Channels |
| Dimmer | 0-100% Linear dimmer control via DMX or ArtNet |
| Motor Rotation | Unlimited rotation in either direction |
| Input Voltage | AC 100-240V / 50-60Hz to 24V (transformer built-in) |
| Total Power Draw | 50 Watts |
| IP Rating | IP19 — Indoor use rated |
| Viewing Angle | 360° |
| Mounting | Multiple mounting options; pedestal included |
| Max Fixtures Per Universe (1.2M) | 5 fixtures (Power + ArtNet Controller sold separately) |
| Available Sizes | 1.0M, 1.2M, 1.5M |
