Acue Lighting COB 60 RGBW — Compact High-Output LED Par Wash Fixture
COB 60 RGBW Overview

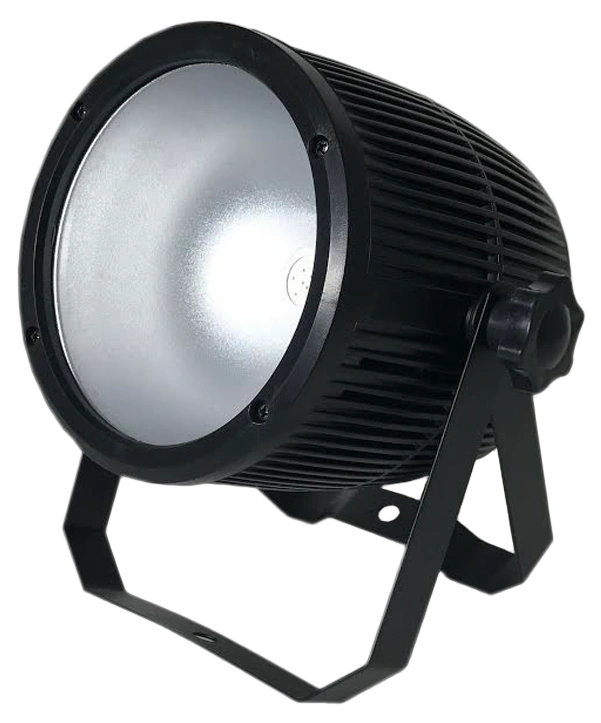

The Acue Lighting COB 60 RGBW LED Par is a compact wash fixture built around a 60W COB RGBW LED source rated at 50,000 hours, delivering high output relative to its small physical footprint. Its COB design enables seamless, even color mixing across an extremely wide wash angle, making it well-suited for small to medium-sized stages and venues. The fixture supports 4 and 8 DMX channel modes via 3-pin DMX in/out connectors, along with Auto-Program, Master/Slave, and Sound Active modes for flexible deployment. It is a practical choice for lighting designers, integrators, and venue technicians who need reliable, versatile wash coverage in a compact form factor.
Onboard controls provide direct access to dimmer and shutter strobe functions, allowing standalone operation without a dedicated console when needed.
Key Features
- 60W COB RGBW LED Source — Single chip-on-board emitter rated at 50,000 hours, providing high output and seamless color mixing in a compact housing
- Wide Wash Angle — Extremely wide coverage angle for broad, even illumination across small to medium stage environments
- Multiple Operating Modes — DMX, Auto-Program, Master/Slave, and Sound Active modes for flexible standalone or networked use
- 4 & 8 DMX Channel Modes — Selectable channel count via 3-pin DMX in/out connectors for integration with standard lighting consoles
- 0-100% Linear Dimmer — Full-range dimmer control accessible via DMX or onboard controls
- Adjustable Shutter Strobe — Strobe effect controllable via DMX or onboard controls for live performance applications
- Universal Input Voltage — Operates on 110-220V AC 50/60 Hz for domestic and international deployment
- IP20 Rated — Designed for indoor use in controlled environments

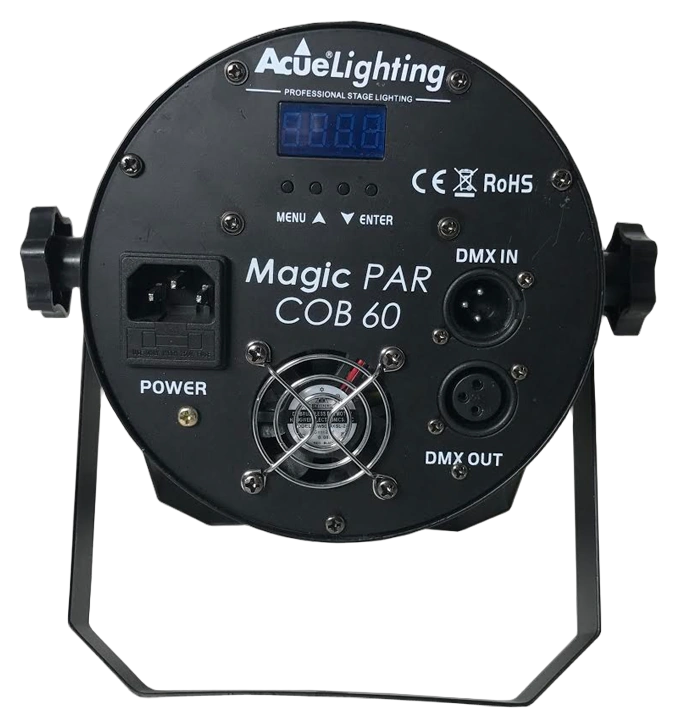

Connectivity & I/O
- 3-pin DMX input connector
- 3-pin DMX output connector (for daisy-chaining)
Technical Specifications
| Light Source | 60W COB RGBW LED (50,000 hrs.) |
| Operating Modes | DMX, Auto-Program, Master/Slave, Sound Active |
| DMX Channels | 4 & 8 Channel Modes, 3-pin DMX in/out connectors |
| Dimmer | 0-100% linear, controllable via DMX or onboard controls |
| Shutter | Strobe adjustable via DMX or onboard controls |
| Total Power Draw | 75 Watts |
| Input Voltage | 110-220V AC 50/60 Hz |
| IP Rating | IP20 (indoor use only) |
