Sound Barrier SB16UTT 16U Touring Anti-Shock Rack Case — Captive Sliding Doors
SB16UTT Overview

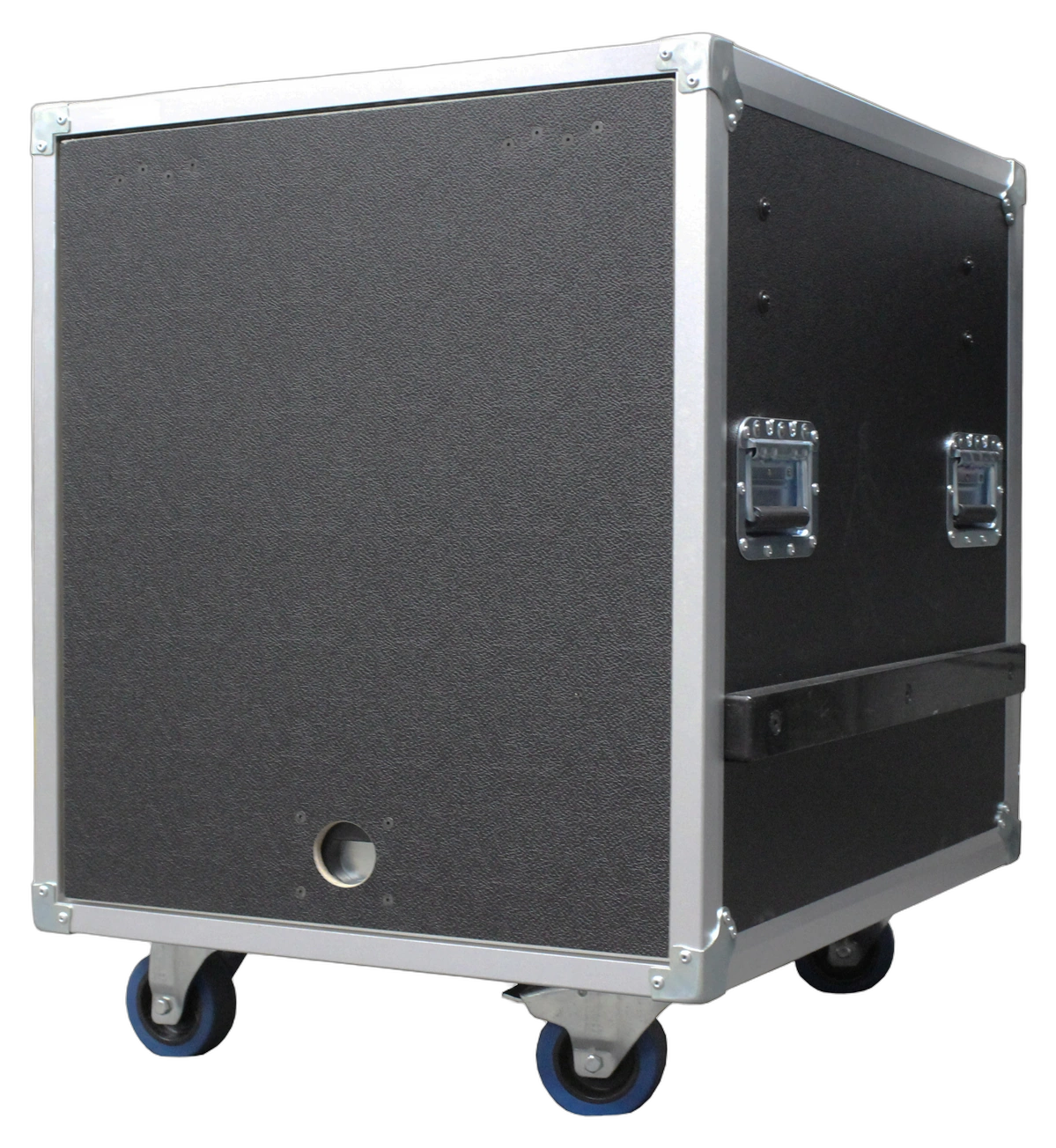

The Sound Barrier SB16UTT is a 16U touring-grade anti-shock rack case built for audio engineers, system integrators, and touring companies who demand maximum protection for rack-mounted equipment in transit. The case is constructed from 12MM thick premium birch plywood housed within custom-made aluminum profiles, with aluminum-welded joints at all four upper and lower frame corners for structural integrity that outperforms traditional pull-stud chassis designs. The internal rack frame is built from 5MM thick iron plates secured to the housing with high-strength shock-absorbing glue, isolating rack-mounted gear from road vibration and impact. This case is purpose-built for touring productions, rental houses, and any application where fully loaded rack systems must survive repeated loading, transport, and deployment.
Front and rear captive pocket doors slide away cleanly without removal, keeping access fast and hardware contained, while Penn Elcom hardware throughout ensures proven road-worthy reliability across the entire assembly.
Key Features
- Welded Aluminum Frame — Upper and lower aluminum profile joints are fixed by aluminum welding, eliminating the structural weaknesses associated with conventional pull-stud chassis construction
- 12MM Birch Plywood Housing — Premium-grade birch plywood provides a rigid, lightweight shell within the custom aluminum profile system
- 5MM Iron Plate Internal Frame — The internal rack-mounting structure is fabricated from 5MM thick iron plates bonded to the housing with high-strength shock-absorbing glue for effective vibration isolation

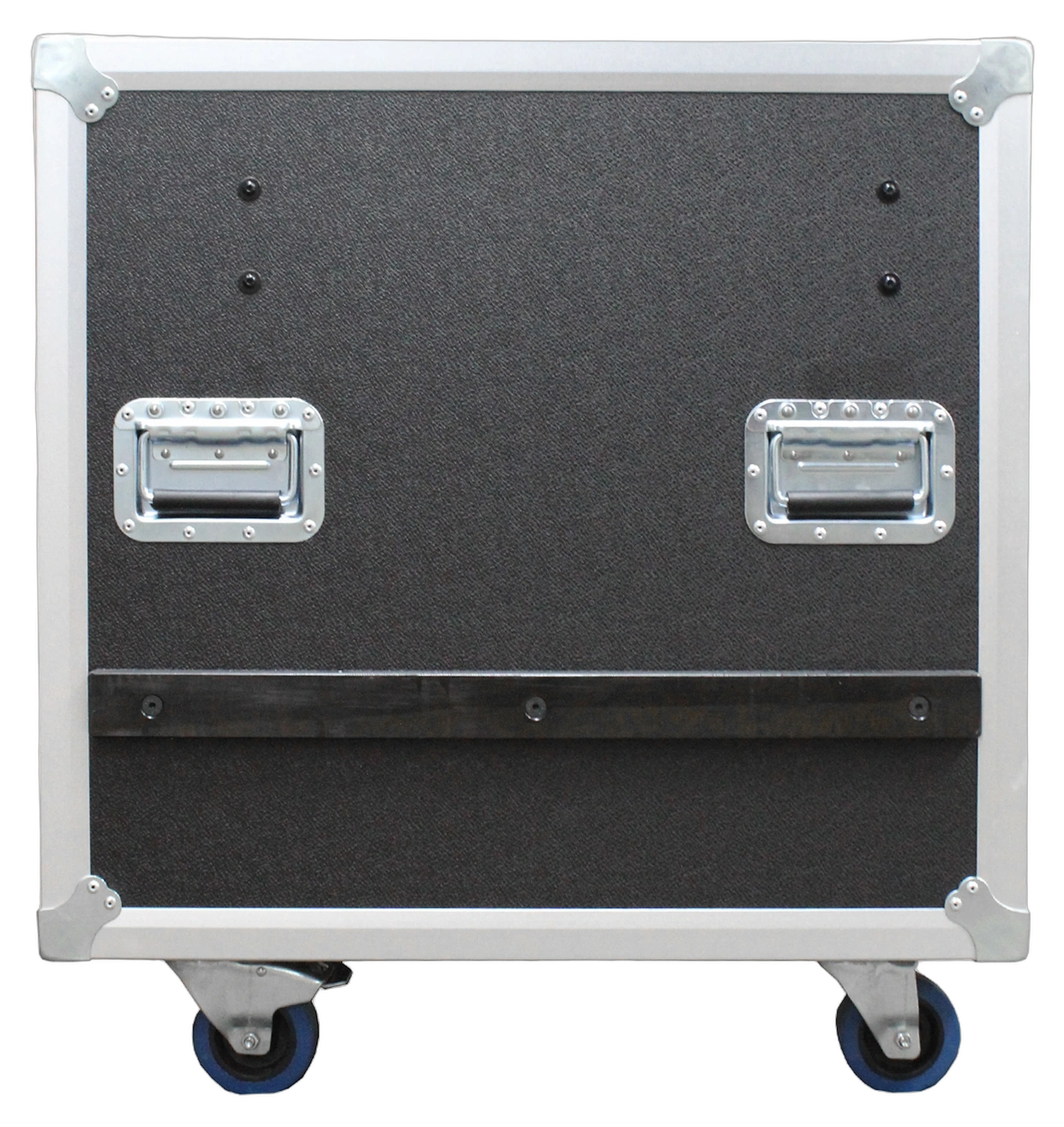

- Front and Rear Captive Pocket Doors — Sliding pocket doors remain captive to the case when open, preventing loss during setup and providing unobstructed rack access

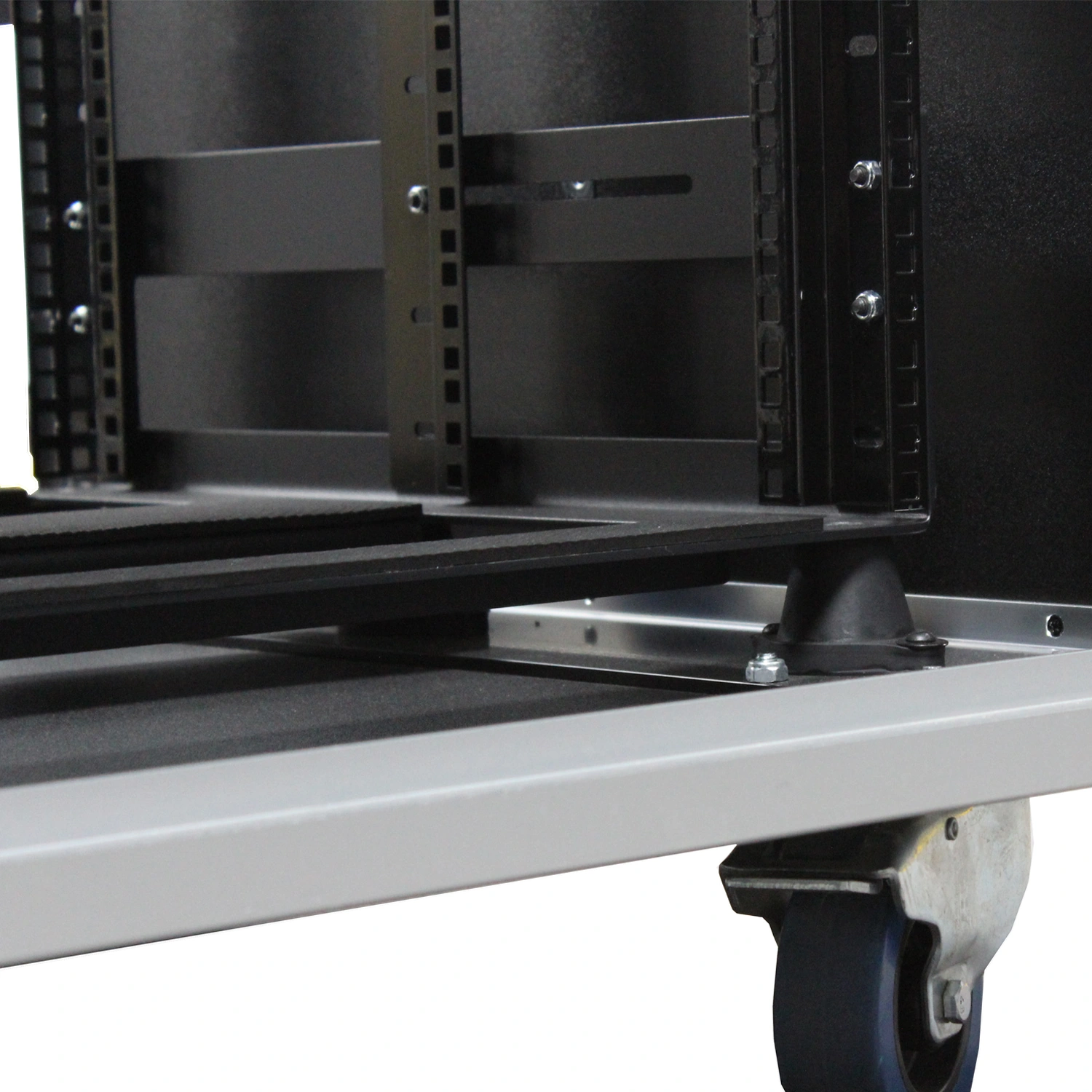

- Shock-Mounted Interior Rack Frame — Isolates installed equipment from chassis shock and road vibration during transport
- Adjustable Front and Rear Rack Rails — Accommodates varying rack unit depths for flexible equipment installation
- Penn Elcom Hardware — Industry-standard touring hardware used throughout for latches, handles, and structural fittings
- 4″ Caster Wheels with Brakes — Heavy-duty casters with locking brakes for controlled positioning on stage and in load-in environments
- 4 Recessed Handles — Flush-mounted handles on all sides for safe multi-person lifting without snagging
- 4 Top Side Cup Dishes (Stacking Cups) — Integrated stacking cups allow secure vertical stacking of multiple cases during transport and storage
- 2 Side Heavy Duty Bumpers — Reinforced side bumpers protect case corners and edges from impact damage
