Sound Barrier SB16USMRX Anti-Shock Rack Road Case — 22-Inch Depth with EVA Foam Protection
SB16USMRX Overview
The Sound Barrier SB16USMRX is a professional anti-shock rack road case designed for touring companies, system integrators, and production facilities that demand maximum equipment protection during transport. The case is built around a 12MM thick premium wood board seated within a custom-made aluminum profile, with upper and lower aluminum joints fixed by aluminum welding rather than conventional pull studs, delivering a structurally superior enclosure. Internal shock isolation is achieved through a 5MM iron plate frame bonded to the case body with high-strength shock-absorbing glue, complemented by 25MM high-density EVA foam lining. This case is purpose-built for audio engineers, touring crews, and integrators who require reliable rack protection across repeated load cycles and road conditions.

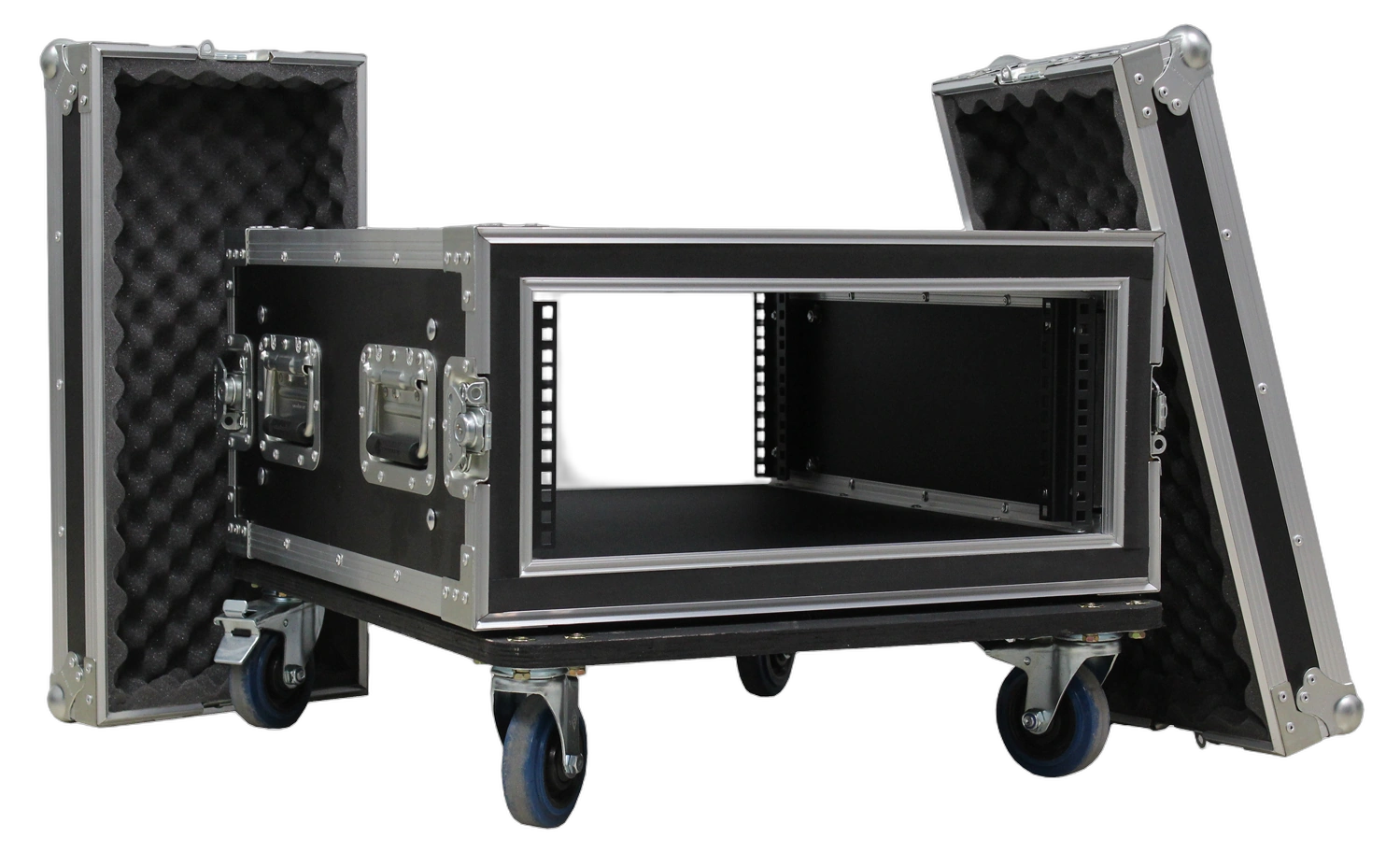

The SB16USMRX ships with standard front and back dual rack strips, cage nuts, and a full-size 18MM plywood painted caster board with four 4-inch high-elasticity caster wheels, making it ready for immediate deployment in touring or fixed-installation staging environments.
Key Features
- Aluminum-Welded Profile Construction — Upper and lower aluminum profile joints are fixed by aluminum welding, eliminating the structural weaknesses associated with conventional pull-stud chassis assembly
- 12MM Premium Wood Board Shell — Custom-fitted within the aluminum profile for a rigid, high-integrity enclosure; supplemented by 9MM laminated plywood construction throughout
- 5MM Iron Plate Internal Frame — Internal fixed structure bonded to the case body with high-strength shock-absorbing glue for superior vibration and impact isolation
- 25MM High-Density EVA Foam — Surrounds racked equipment to absorb shock loads; egg-carton foam lid lining on both front and back covers provides additional protection at the access points

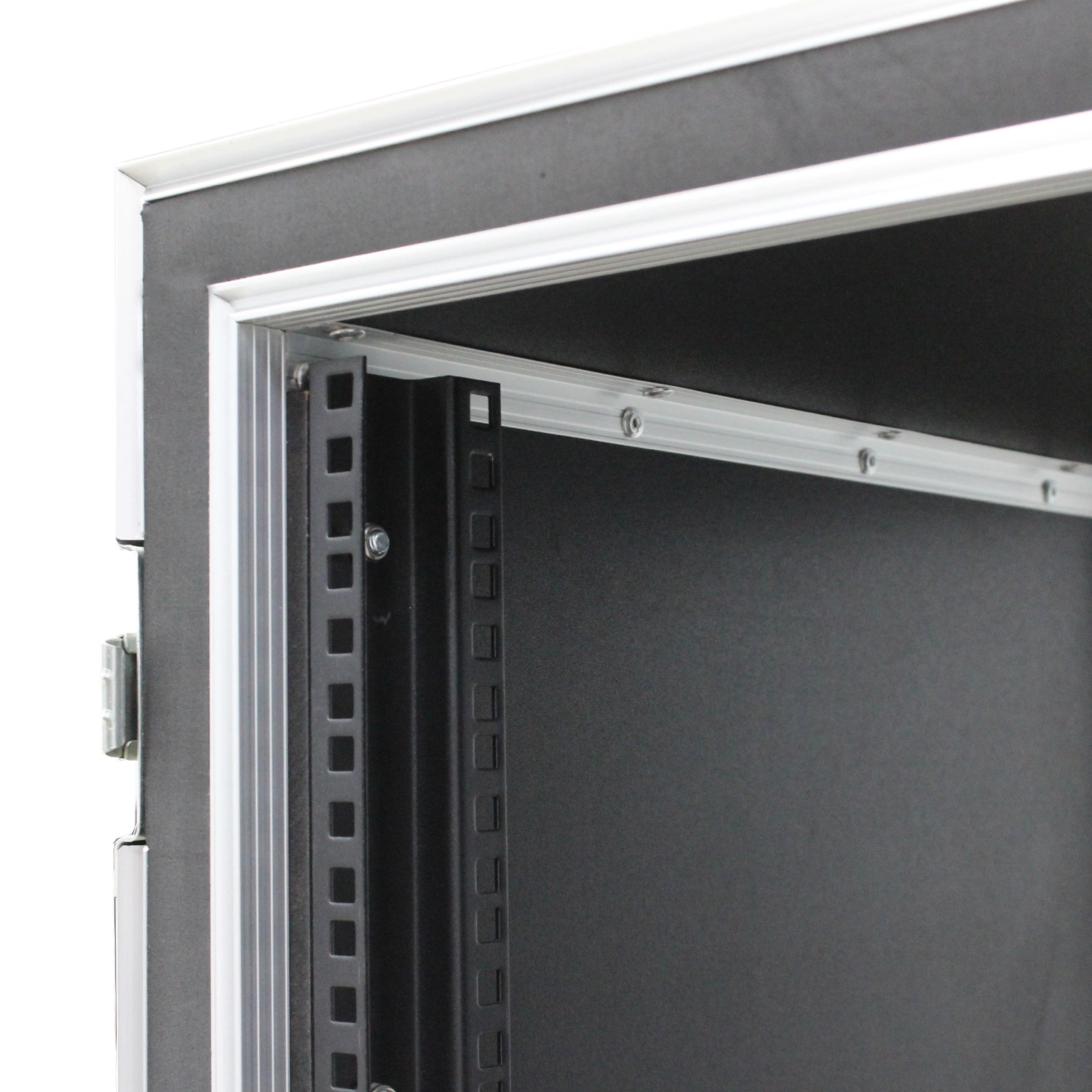

- 22-Inch Rail-to-Rail Depth — Accommodates standard professional rack equipment with full front-to-rear depth clearance
- Spring-Loaded Padlockable Butterfly Latches — Captive pocket door design with four recessed handles and padlockable butterfly latches for secure, tool-free access and transit security
- Double Angle Aluminum Extrusions with Tongue & Groove Joinery — Reinforced corner and edge system with rivets and back washers for long-term structural integrity under repeated transport stress
- 4 x 4-Inch High-Elasticity Caster Wheels — Mounted on an 18MM full-size plywood painted caster board; two casters include safety brakes for stationary positioning; stacking dish cups included on USMRXCD models
