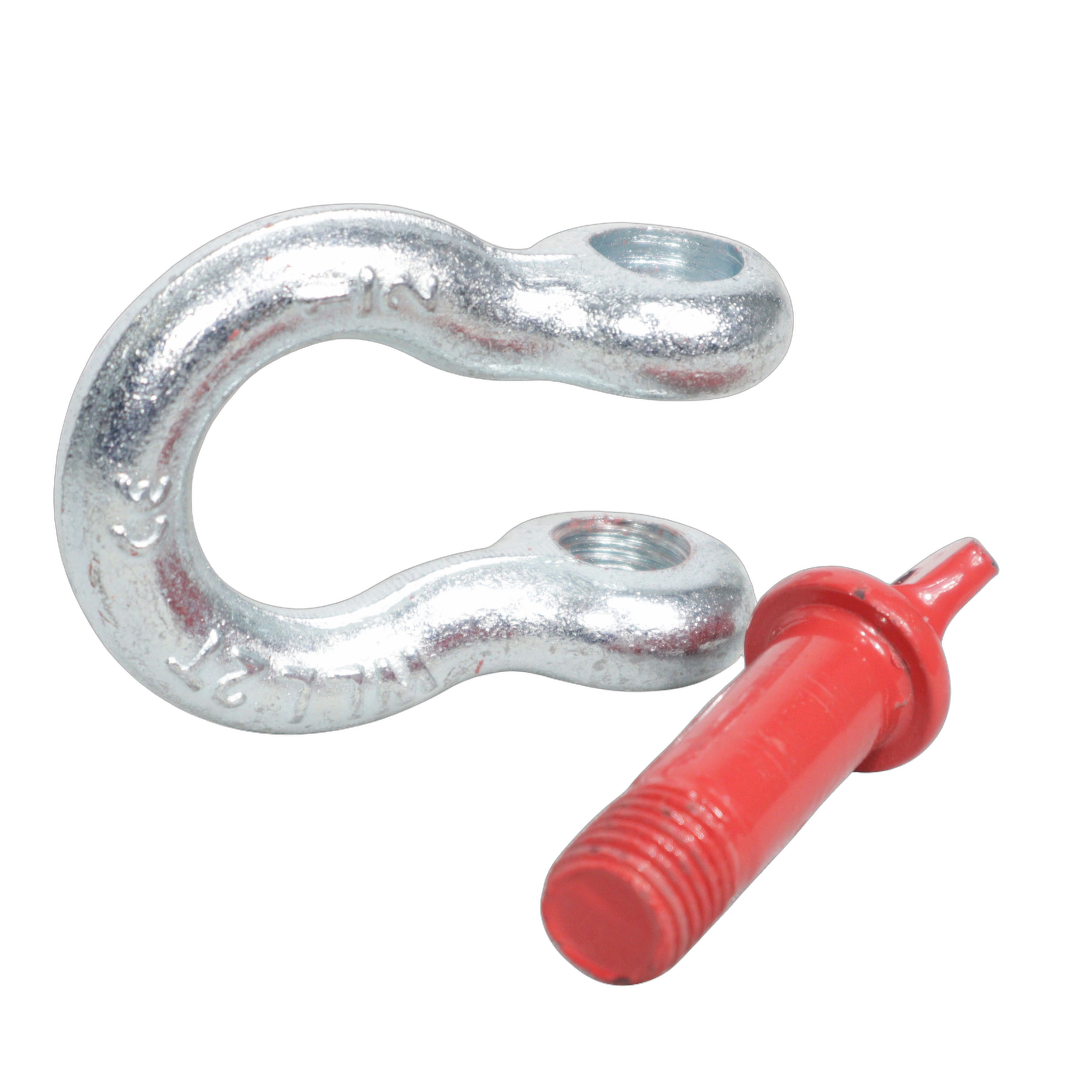

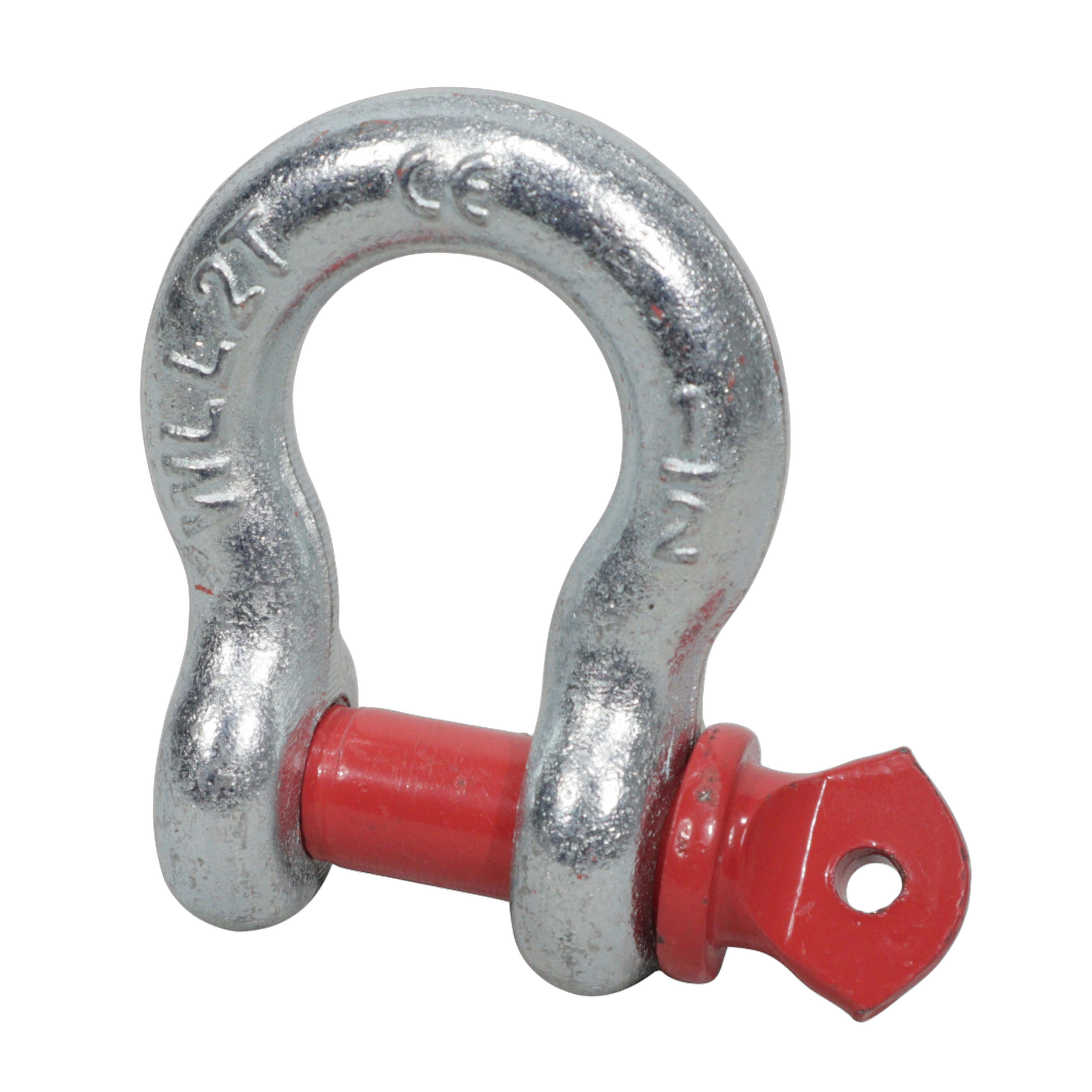

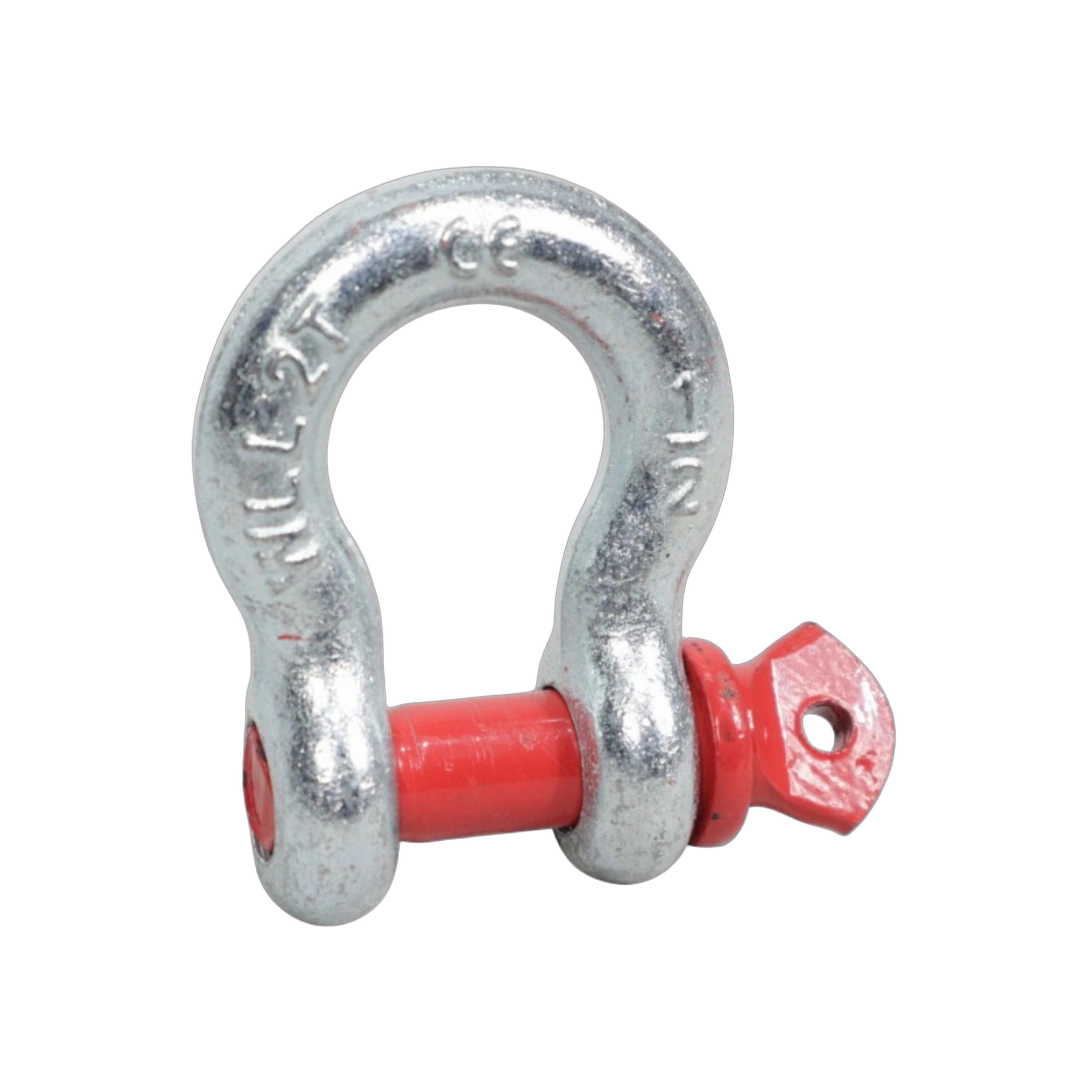

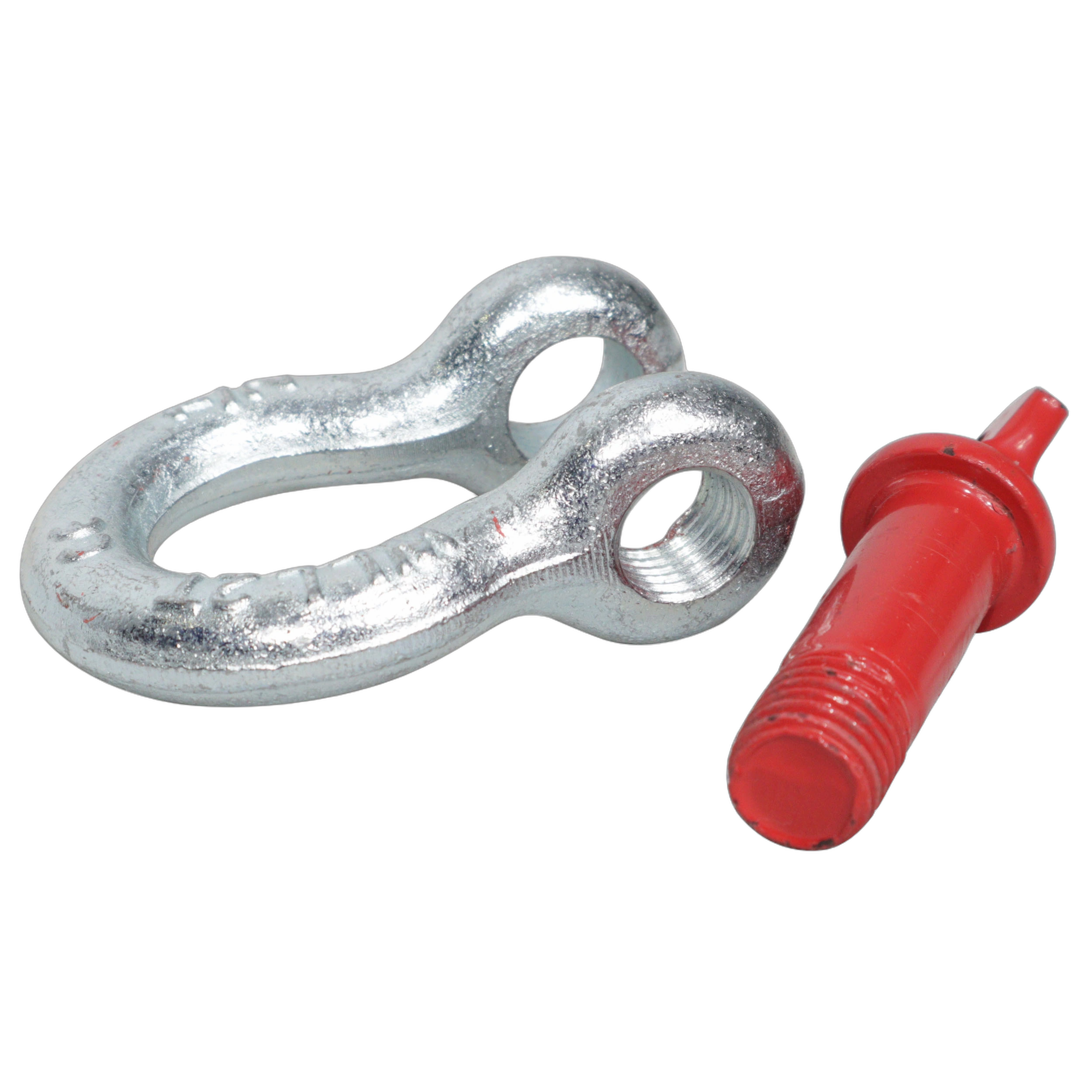

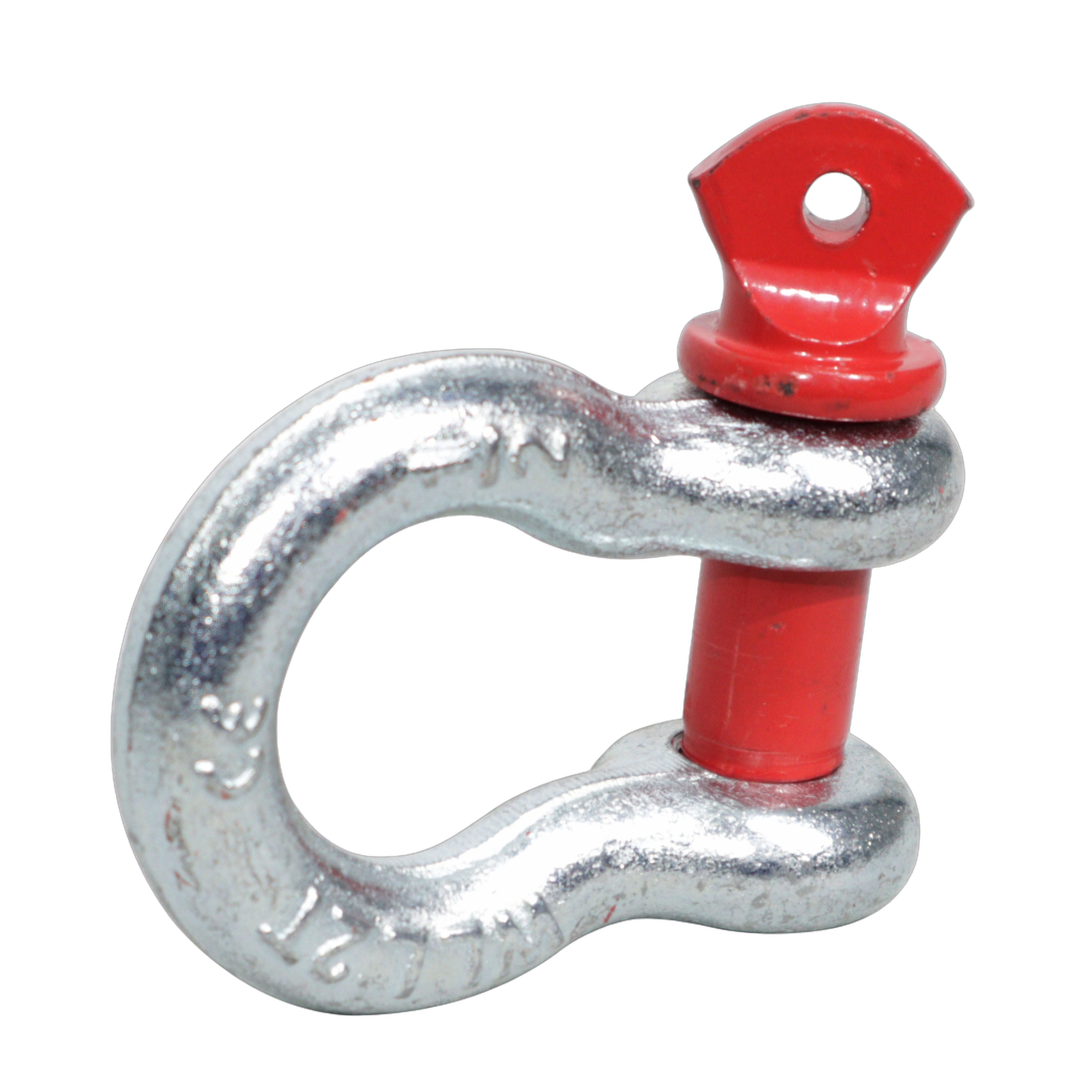

ProX XT-USHACKLE050 — 2 Ton 1/2″ Galvanized Screw Pin Anchor U Shackle
XT-USHACKLE050 Overview
The ProX XT-USHACKLE050 is a heavy-duty screw pin anchor U shackle engineered for the rigors of live event production, stage rigging, and truss installations. Constructed from galvanized steel, it delivers corrosion resistance suitable for both indoor and outdoor environments. With a 2 Ton (4,000 lb) Working Load Limit and a 6:1 safety factor, this shackle provides a reliable, rated connection point for suspending truss systems, stage roofing structures, and video walls. It is the hardware of choice for production riggers, system integrators, and touring companies who require dependable load-bearing hardware on every call.
At 0.66 lbs, the XT-USHACKLE050 is compact enough to carry in quantity without adding unnecessary weight to a rigging kit, and its 1/2″ body size integrates cleanly into standard rigging workflows alongside nylon and polyester lifting slings.
Key Features
- Galvanized Steel Construction — Corrosion-resistant finish extends service life in both indoor and outdoor rigging environments
- 2 Ton (4,000 lb) Working Load Limit — Rated for heavy suspension loads including truss systems, roofing structures, and video wall installations
- 6:1 Safety Factor — Provides a substantial margin of confidence when rigging critical loads in live production settings
- 1/2″ Body Size with 5/8″ Pin — Compatible with a wide range of slings and rigging configurations without requiring additional hardware adaptation
- Sling Eye Protection — When paired with nylon or polyester lifting slings, the shackle body shields sling eyes from wear caused by clevis hooks, extending sling service life
- Compact and Portable — Weighs only 0.66 lbs, making it practical to carry multiples in a rigging kit without significant weight penalty
- Versatile Application Range — Suited for trussing systems, stage roofing, sling suspension setups, and video wall rigging configurations
Connectivity & I/O
- Body Size: 1/2″
- Pin Diameter: 5/8″
- Inside Height: 1.88″
- Mouth Width: 0.81″
- Inside Width: 1.31″
Technical Specifications
| Model | XT-USHACKLE050 |
| Material | Galvanized Steel |
| Working Load Limit | 2 Ton (4,000 lb) |
| Safety Factor | 6:1 |
| Body Size | 1/2″ |
| Pin Diameter | 5/8″ |
| Inside Height | 1.88″ |
| Mouth Width | 0.81″ |
| Inside Width | 1.31″ |
| Weight | 0.66 lbs |
