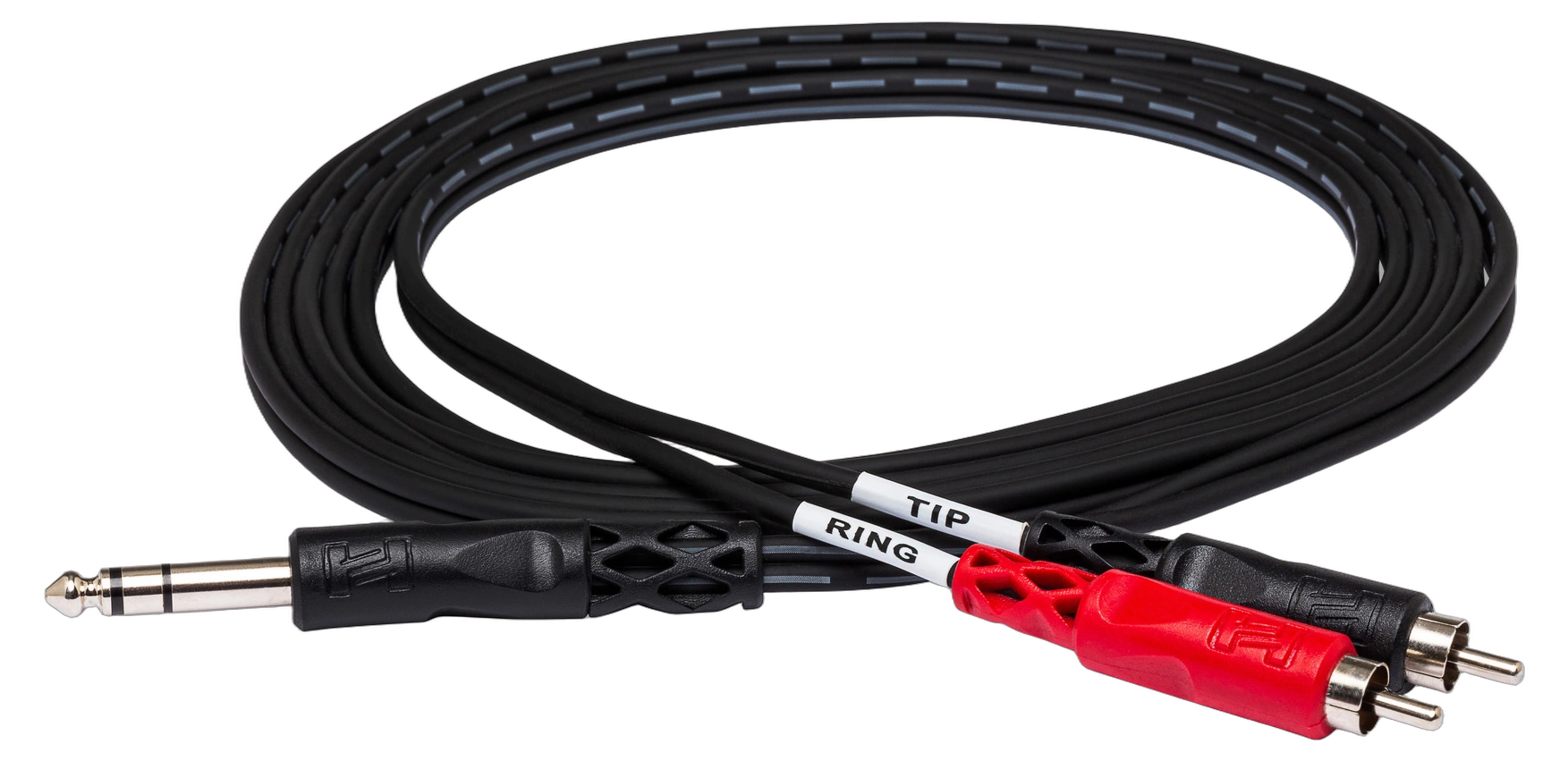

Hosa TRS-201 — 1/4 in TRS to Dual RCA Insert Cable (1m)
TRS-201 Overview
The Hosa TRS-201 is a 1-meter insert cable engineered to interface a mixing console channel insert point with an outboard effects processor equipped with phono jacks. The cable terminates in a single 1/4 in TRS connector on one end and dual RCA connectors on the other, with leads clearly labeled TIP (send) and RING (return) to eliminate guesswork during patching. Oxygen-Free Copper (OFC) conductors and OFC spiral shielding provide effective EMI and RFI rejection while maintaining signal integrity across the signal path. This cable is well suited for audio engineers, studio technicians, and live sound operators working with console insert loops and hardware processors.
The labeled send and return leads streamline setup and reduce patching errors in both studio and live environments where channel inserts are used regularly.
Key Features
- 1/4 in TRS to Dual RCA Configuration — purpose-built for connecting mixing console insert points to effects processors with phono jacks
- Labeled Leads — TIP (send) and RING (return) identification printed on each RCA lead for fast, accurate patching
- Nickel-Plated Plugs — provide rugged durability and efficient signal transfer at every connection point
- OFC Conductors — Oxygen-Free Copper construction for enhanced signal clarity throughout the cable run
- OFC Spiral Shielding — effective rejection of EMI and RFI interference while maintaining cable flexibility
- 1-Meter Length — compact length suited for rack-mounted outboard gear and console insert patching in tight spaces
Connectivity & I/O

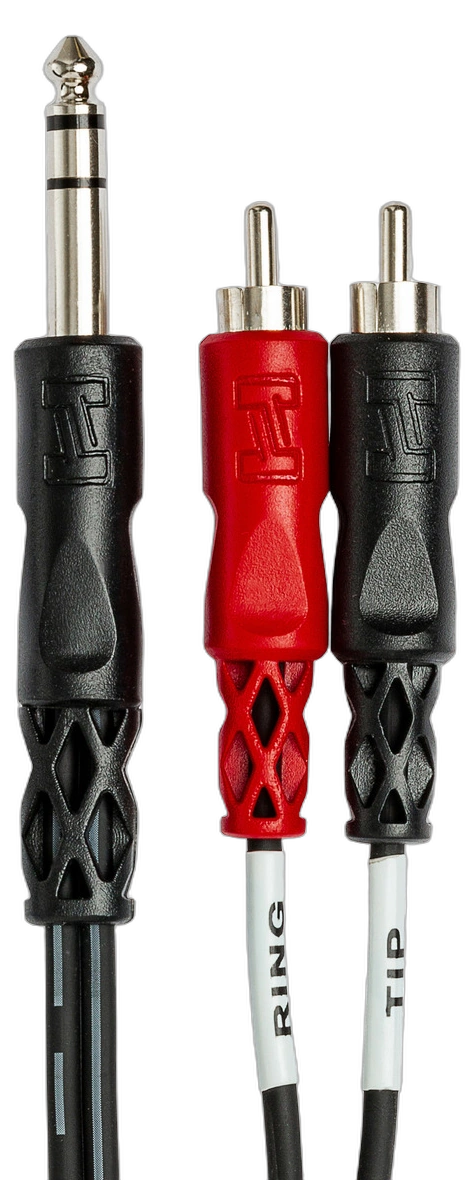

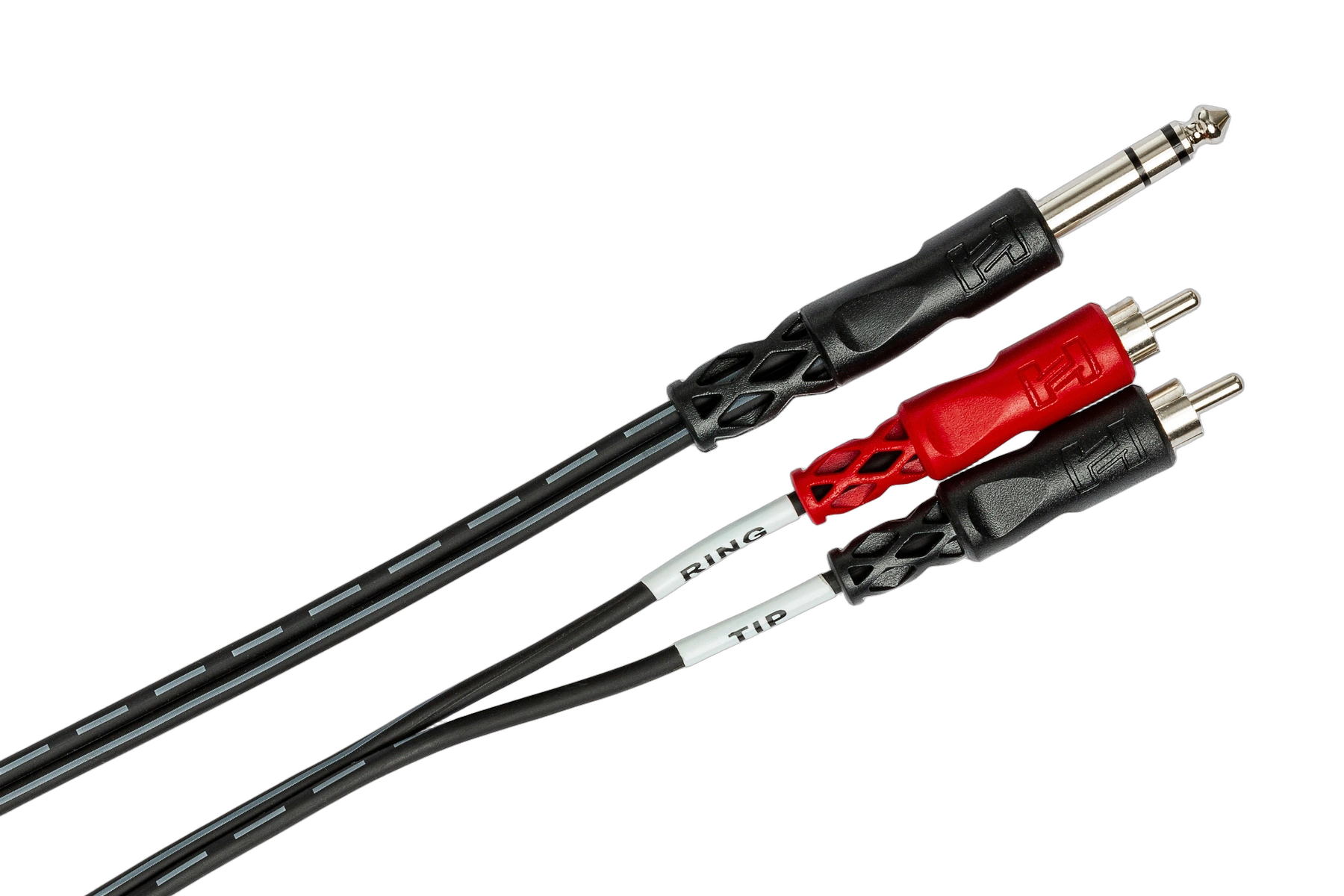

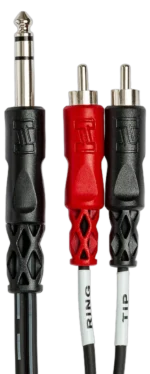

- 1x 1/4 in TRS connector (console insert end)
- 2x RCA connectors (effects processor end, labeled TIP/send and RING/return)
Technical Specifications
| Connector A | 1/4 in TRS |
| Connector B | Dual RCA |
| Cable Length | 1 m |
| Conductors | Oxygen-Free Copper (OFC) |
| Shielding | OFC Spiral Shield |
| Plug Plating | Nickel |
