Hosa PHX-206M-BULK — Low-Voltage Phoenix to XLR Male Installation Adapter
PHX-206M-BULK Overview

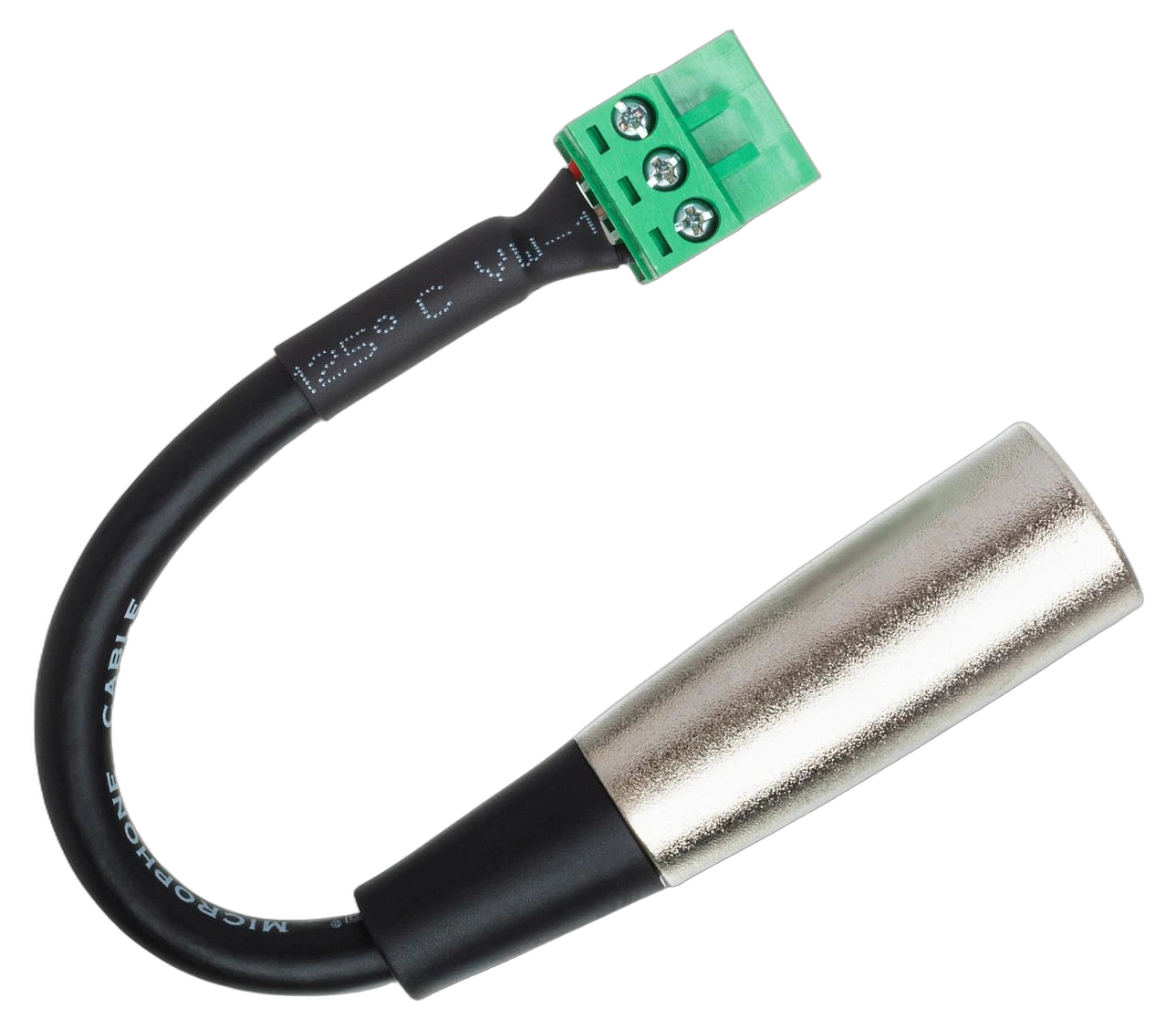

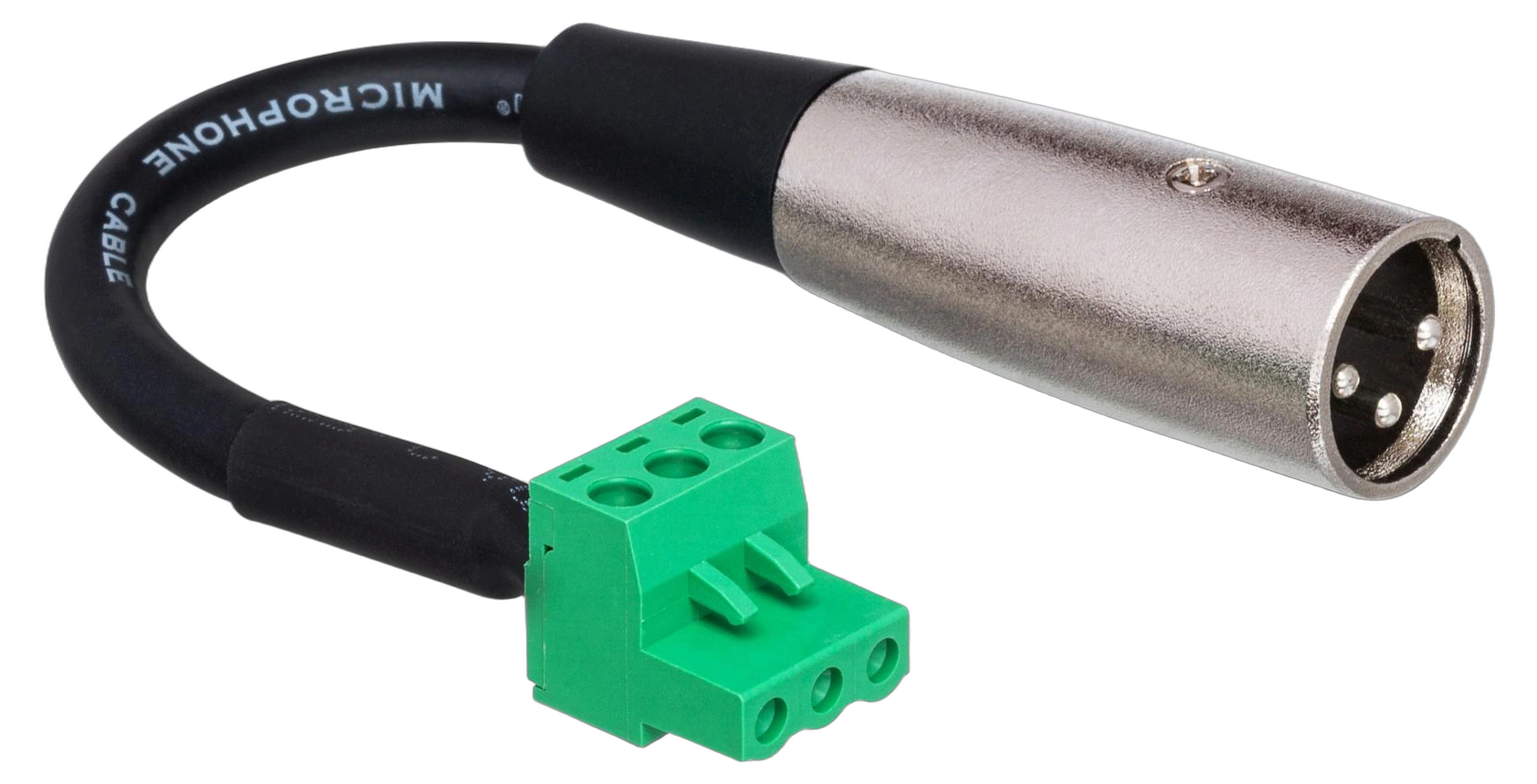

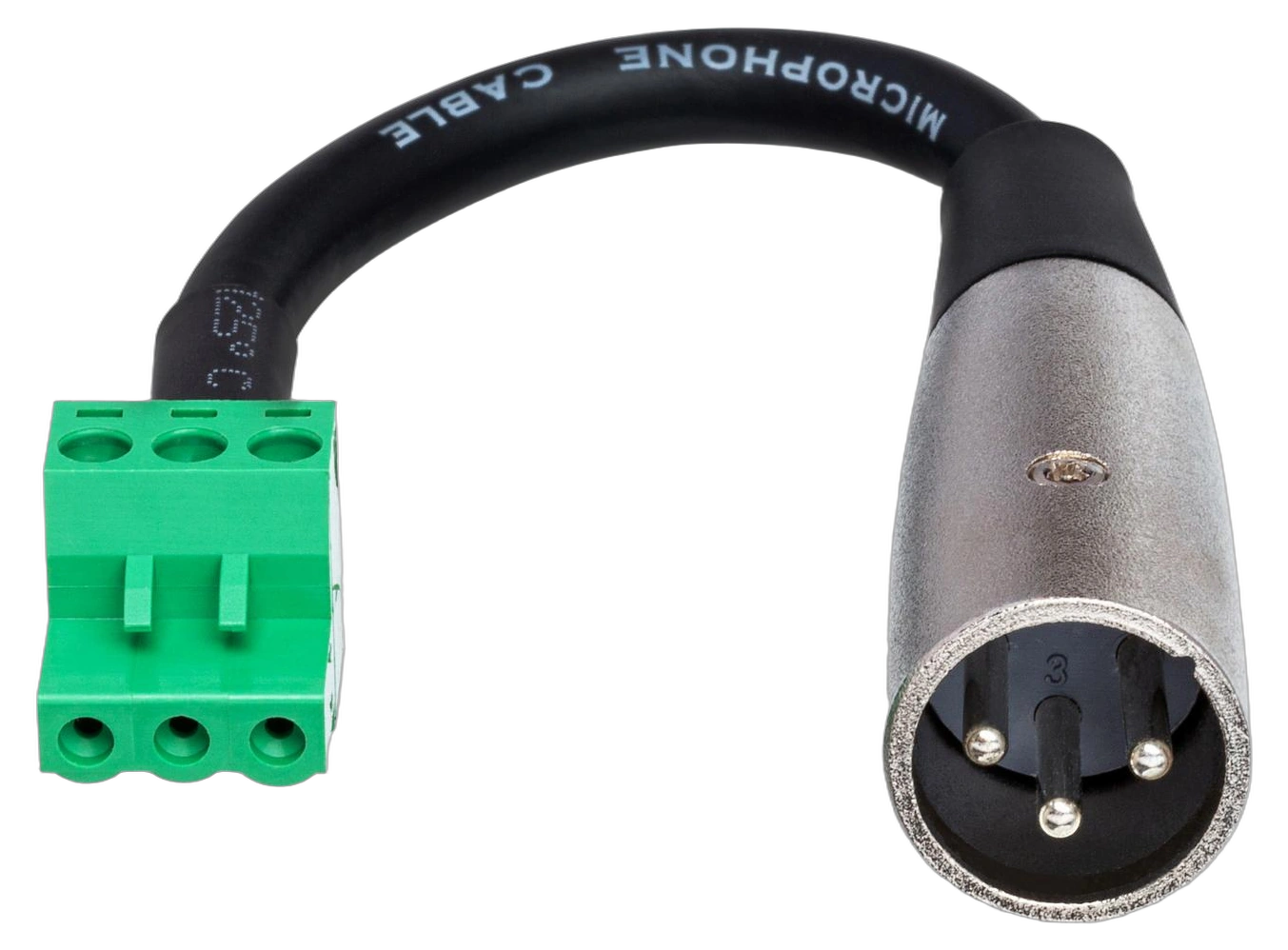

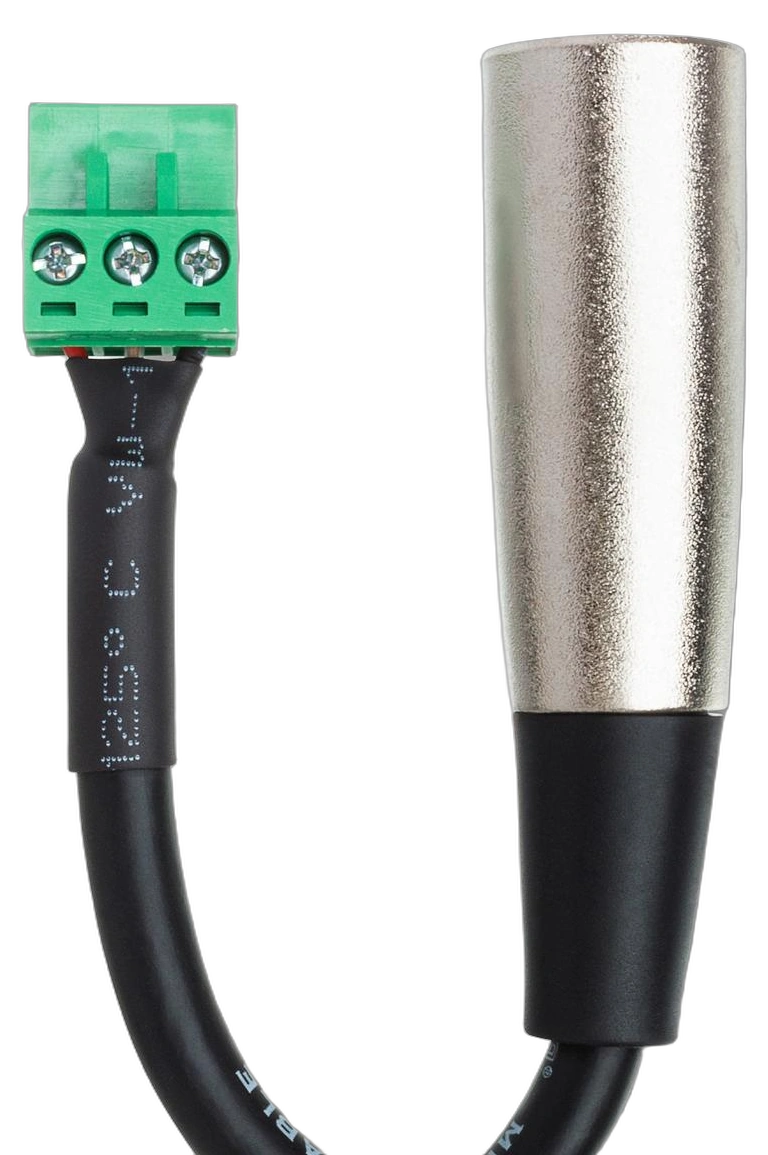

The Hosa PHX-206M-BULK is a 6-inch balanced audio pigtail designed for systems integrators working in commercial fixed installations. It bridges Standard Phoenix (Euroblock) outputs found on DSPs, matrix mixers, and amplifiers directly to XLR Male inputs, eliminating the need to hand-wire terminal blocks on the job site. Constructed with 24 AWG Oxygen-Free Copper conductors and a 90% OFC spiral shield, it delivers clean, low-noise signal transfer in dense rack environments. This adapter is the practical choice for integrators handling high-volume commercial projects where connector compatibility, field serviceability, and signal integrity are non-negotiable.
The pre-terminated Phoenix-style end accelerates installation workflows, while the serviceable XLR3M connector allows field inspection or cable shortening without replacing the entire assembly.
Key Features
- Universal Stepped Phoenix Connector — Precision-molded housing fits both Standard (Square) open headers on modern equipment and legacy TE-Style (Round) Euroblock headers, ensuring compatibility across equipment generations
- Serviceable All-Metal XLR3M — The XLR Male connector can be opened in the field to inspect solder points or adjust cable length, unlike fixed molded connectors
- Pre-Terminated Phoenix End — Eliminates hand-stripping and wiring of terminal blocks on site, reducing installation time on large-scale commercial projects
- 24 AWG OFC Conductors — Oxygen-Free Copper construction ensures efficient signal transfer and long-term conductor integrity
- 90% OFC Spiral Shield — Provides effective rejection of EMI and RFI in dense rack and rack-room environments
- 5.08mm Pitch — Standard Euroblock pitch compatible with the majority of commercial DSP and amplifier terminal blocks
- Balanced Audio Interconnect — Maintains balanced signal path from Phoenix output to XLR input for noise-free long-run performance
Connectivity & I/O
- Connector A: 3-Pin Phoenix-Style Plug, Universal Stepped profile, 5.08mm pitch
- Connector B: Serviceable XLR3M (Male), all-metal construction
Technical Specifications
| Series | Hosa Standard |
| Model | PHX-206M-BULK |
| Connector A | 3-Pin Phoenix-Style Plug (Standard/Universal) |
| Connector B | Serviceable XLR3M (Male) |
| Conductors | 24 AWG OFC |
| Shielding | 90% OFC Spiral |
| Pitch | 5.08mm |
| Cable Length | 6 inches |
| Application | Phoenix Output to XLR Input |
| Pricing | Per item |
