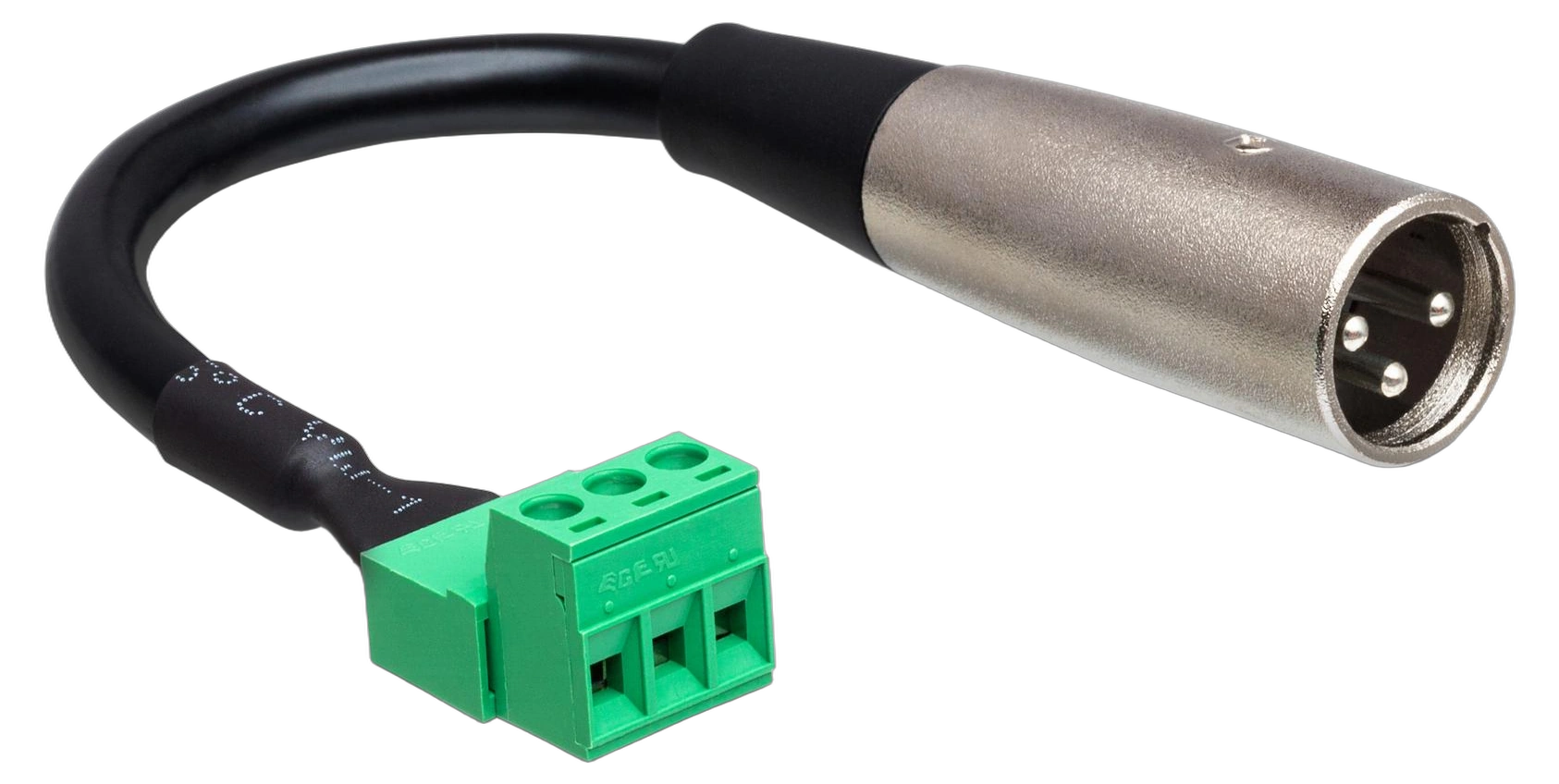

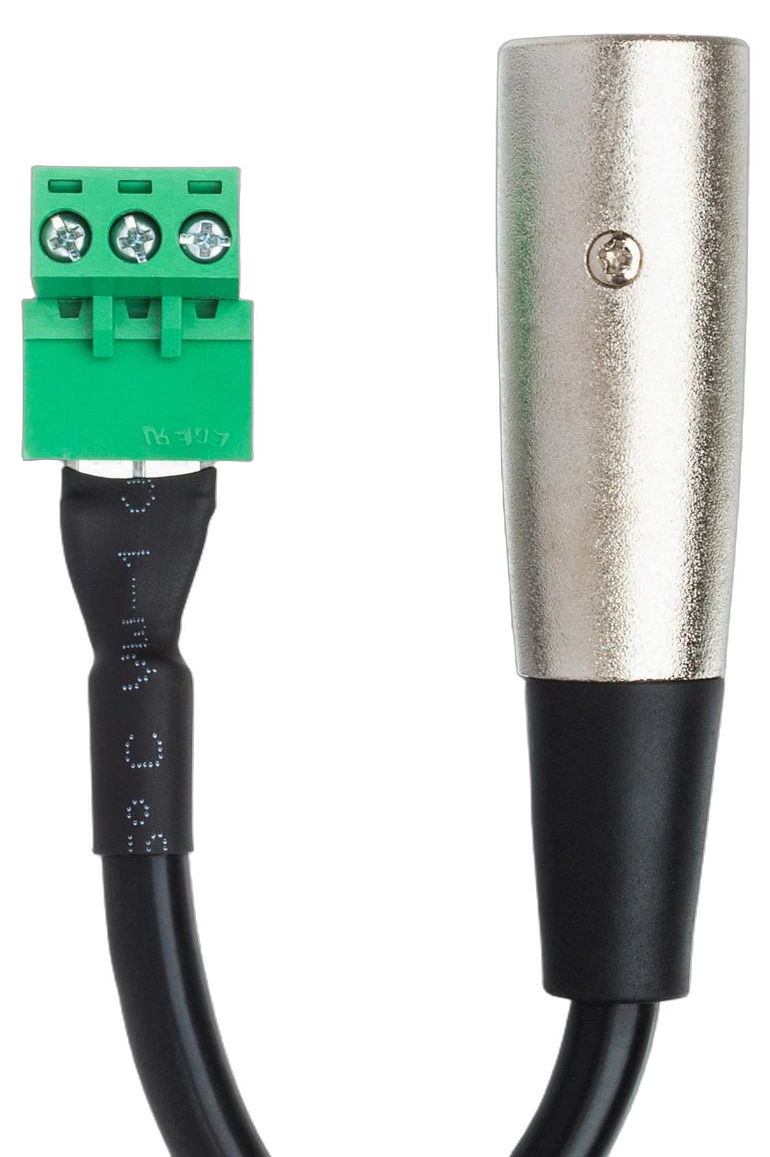

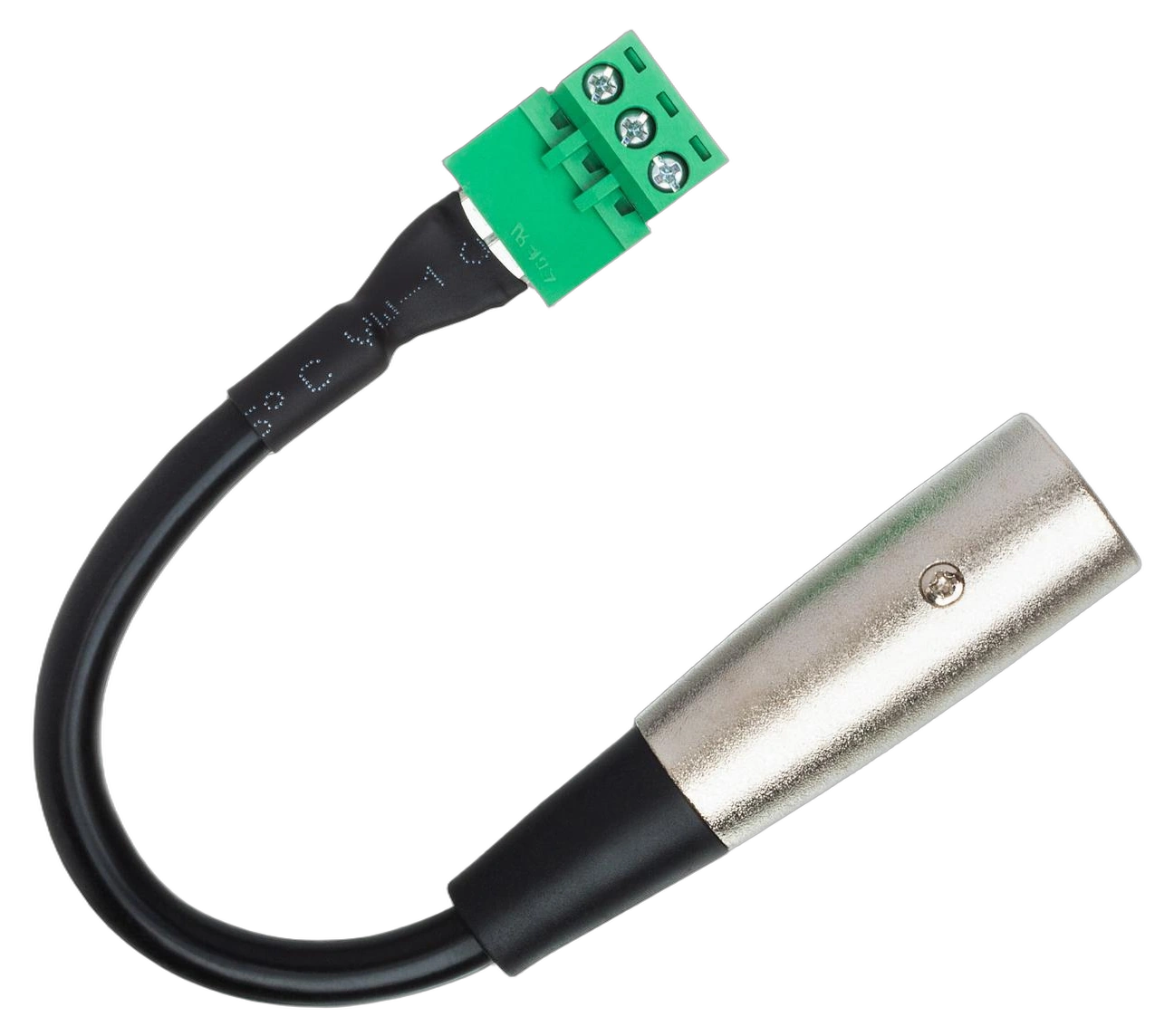

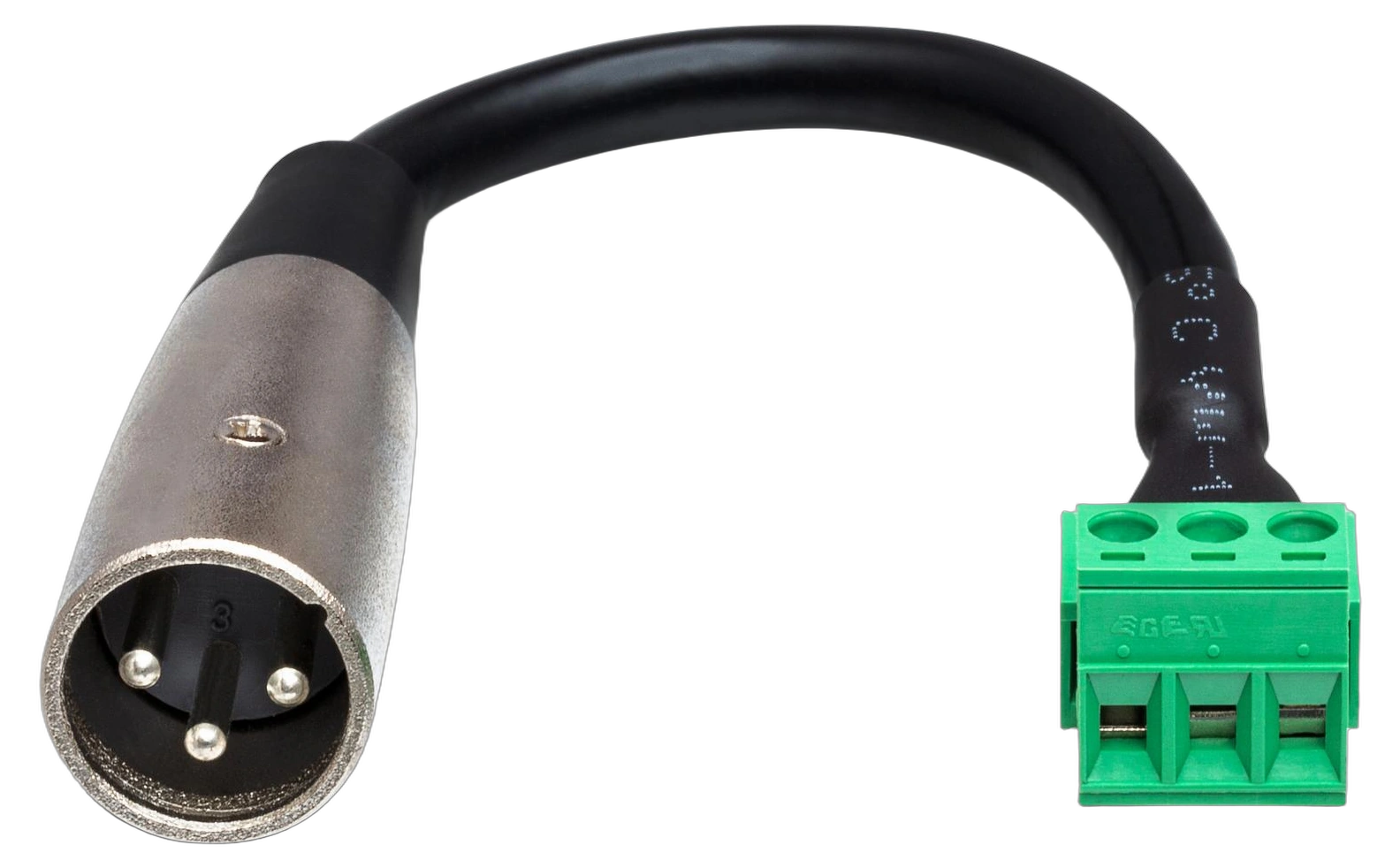

Hosa PHX-106M-BULK — Standard Phoenix to XLR Male Installation Adapter Pigtail
PHX-106M-BULK Overview
The Hosa PHX-106M-BULK is a 6-inch balanced audio pigtail adapter designed for systems integrators working in commercial fixed installations. It bridges Standard 5.08mm pitch Phoenix-style (Euroblock) outputs to XLR male inputs, making it a direct solution for patching matrix mixers, zone controllers, and commercial amplifiers to downstream XLR-equipped equipment. The Square-profile Euroblock connector ensures compatibility with the vast majority of open-header commercial audio hardware. This adapter is purpose-built for integrators handling high-volume installs in restaurants, offices, houses of worship, and corporate AV environments.
The pre-terminated Phoenix-style end eliminates the need to strip and wire terminal blocks by hand on the job site, while the serviceable XLR3M connector allows field inspection and repair without replacing the entire cable.
Key Features
- Serviceable All-Metal XLR3M Connector — Unlike molded connectors, the all-metal XLR3M can be opened in the field to inspect solder points or adjust cable length as needed
- Standard 5.08mm Pitch Phoenix-Style Plug — Square-profile Euroblock connector provides universal compatibility with the majority of commercial audio brands and open-header equipment
- Pre-Terminated Euroblock End — Plug-and-play design speeds up installation by eliminating manual terminal block wiring on the job site
- 24 AWG OFC Conductors — Oxygen-Free Copper construction ensures efficient signal transfer and low-noise performance
- 90% OFC Spiral Shield — Effective rejection of EMI and RFI, keeping audio signals clean in rack-dense environments
- Bulk Packaging — Supplied in a poly bag, making it cost-effective for high-volume commercial installation projects
- Balanced Audio Interconnect — Carries balanced audio from Phoenix outputs directly to XLR inputs without additional adapters or wiring
Connectivity & I/O
- Connector A: 3-Pin Phoenix-Style Plug, Standard 5.08mm Pitch, Square Profile
- Connector B: XLR3M (3-Pin XLR Male)
Technical Specifications
| Series | Hosa Standard |
| Model | PHX-106M-BULK |
| Connector A | 3-Pin Phoenix-Style Plug (Standard, Square Profile) |
| Connector B | XLR3M (Male) |
| Conductors | 24 AWG OFC |
| Shielding | 90% OFC Spiral |
| Pitch | 5.08mm |
| Cable Length | 6 inches |
| Application | Phoenix Output to XLR Input |
| Packaging | Bulk (Poly Bag) |
