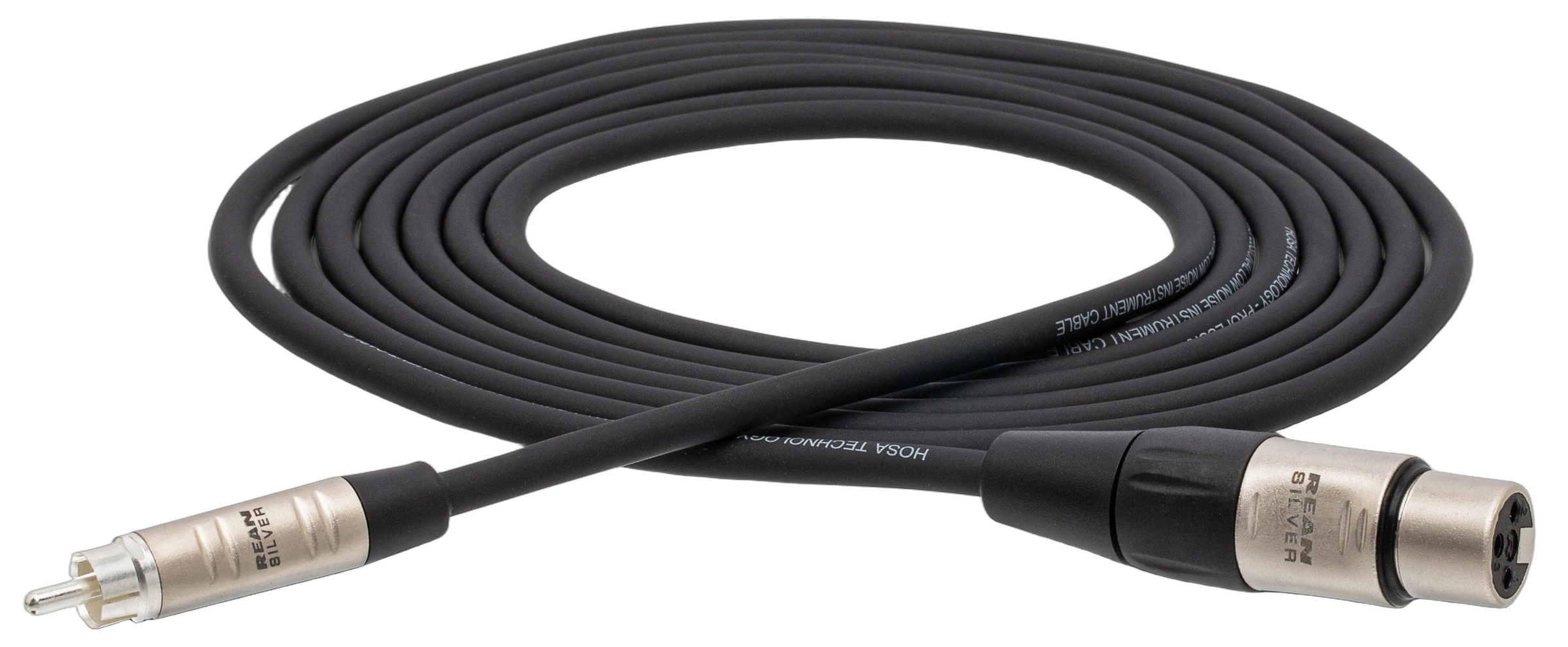

Hosa HXR-020 Pro Unbalanced Interconnect — REAN XLR Female to RCA, 20ft
HXR-020 Overview
The Hosa HXR-020 is a 20-foot professional unbalanced interconnect cable built to bridge gear with XLR outputs to equipment with RCA phono inputs. It features silver-plated REAN XLR3F and RCA connectors for reliable signal transfer, a 24 AWG Oxygen-Free Copper conductor for enhanced signal clarity, and a 90% OFC spiral shield for an improved signal-to-noise ratio. This cable is well-suited for audio engineers, system integrators, and installers working in live sound, broadcast, and installed audio environments where XLR-to-RCA routing is required.
For optimal performance, matching the low output impedance of the source to the high input impedance of the destination is recommended, ensuring clean signal transfer across the 20-foot run.
Key Features

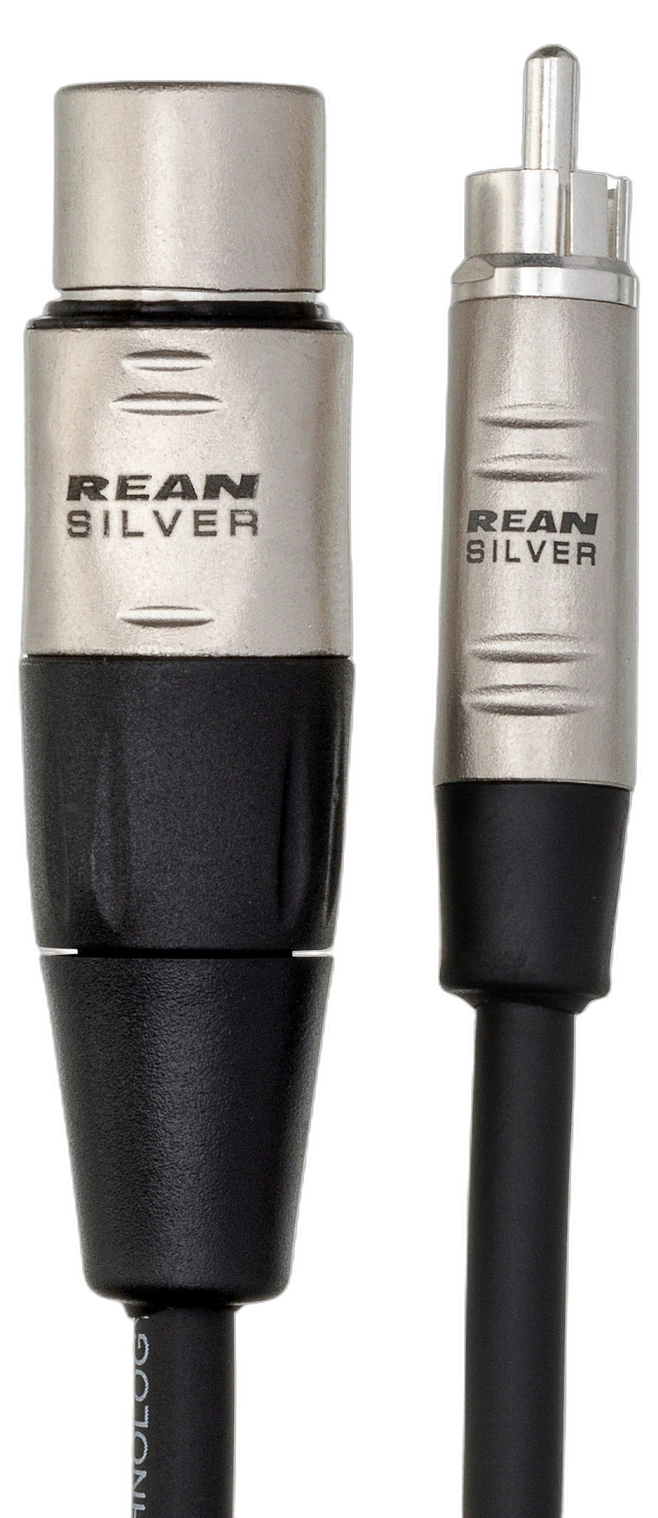

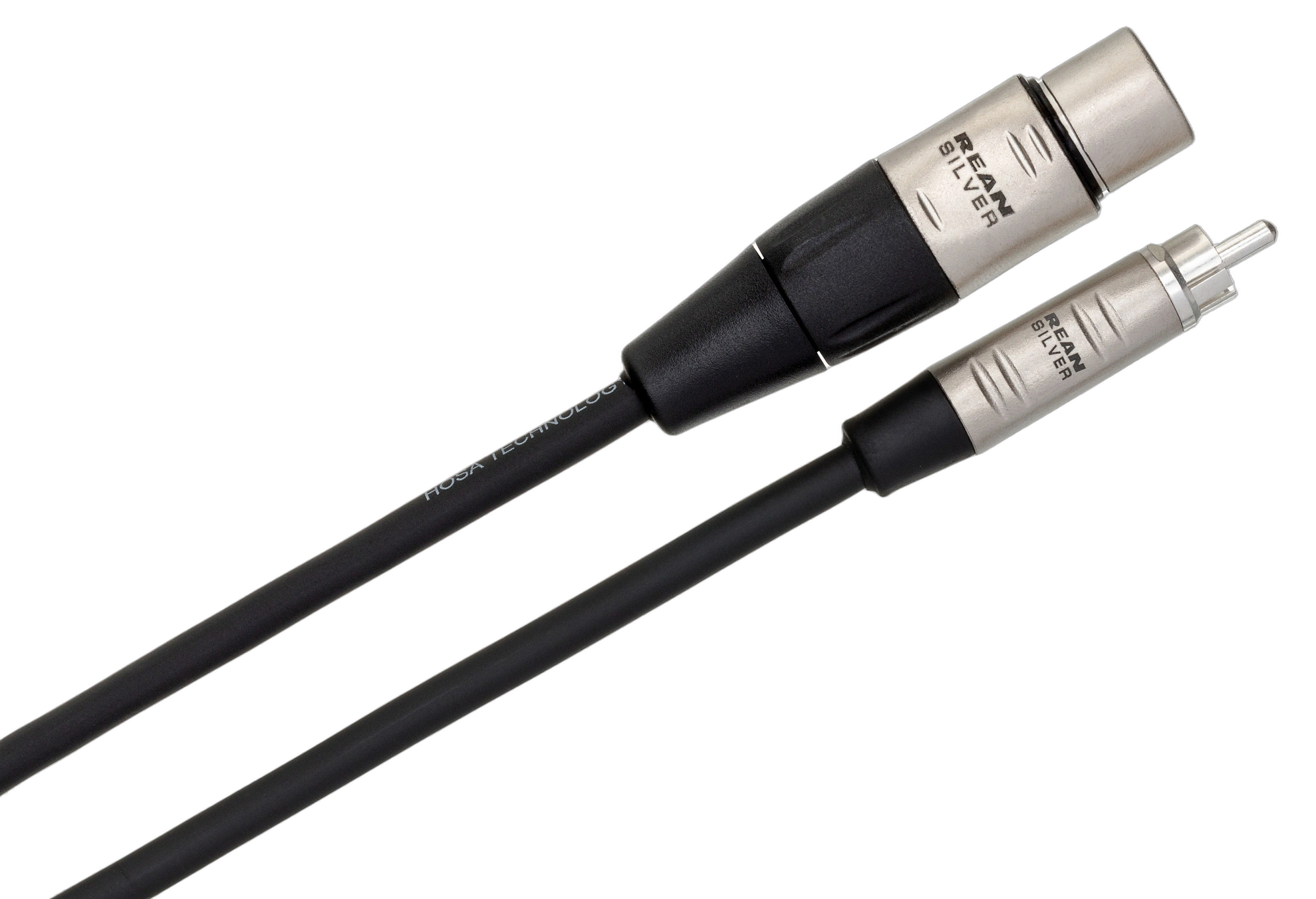

- Silver-Plated REAN Connectors — REAN XLR3F and RCA connectors with silver plating for superior contact integrity and signal transfer
- 24 AWG OFC Conductor — Oxygen-Free Copper construction minimizes signal degradation and enhances audio clarity
- 90% OFC Spiral Shield — High-coverage spiral shield reduces interference and improves the signal-to-noise ratio
- XLR Female to RCA Configuration — Designed specifically to connect XLR output sources to RCA phono inputs without adapters
- 20-Foot Length — Provides sufficient reach for rack-to-rack, stage, or installed audio routing applications
Connectivity & I/O

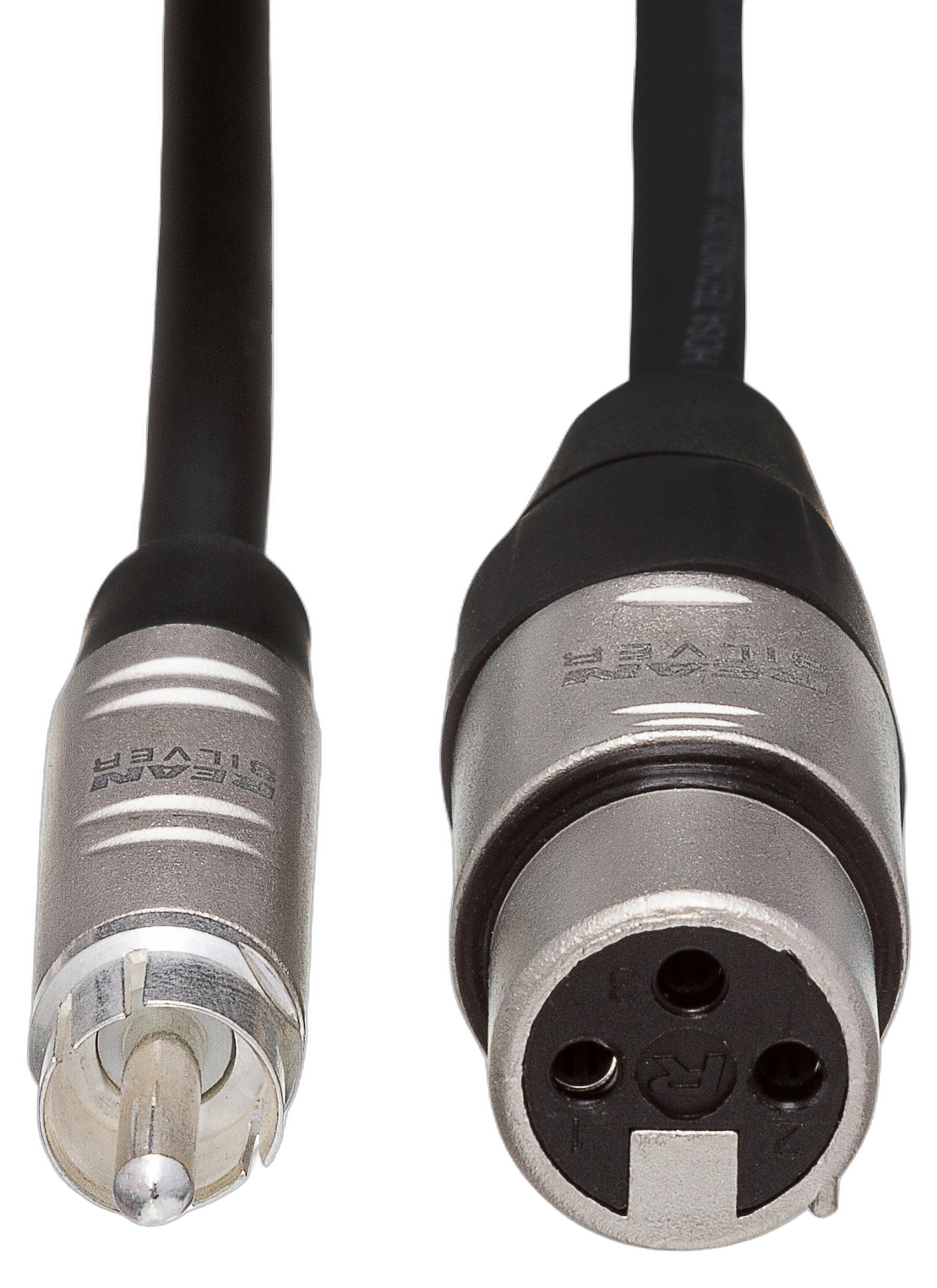

- 1x REAN XLR3F (XLR 3-pin Female) connector
- 1x RCA (Phono) connector
Technical Specifications
| Connectors | REAN XLR3F to RCA |
| Conductor | 24 AWG Oxygen-Free Copper (OFC) |
| Shield | 90% OFC Spiral |
| Length | 20 ft |
