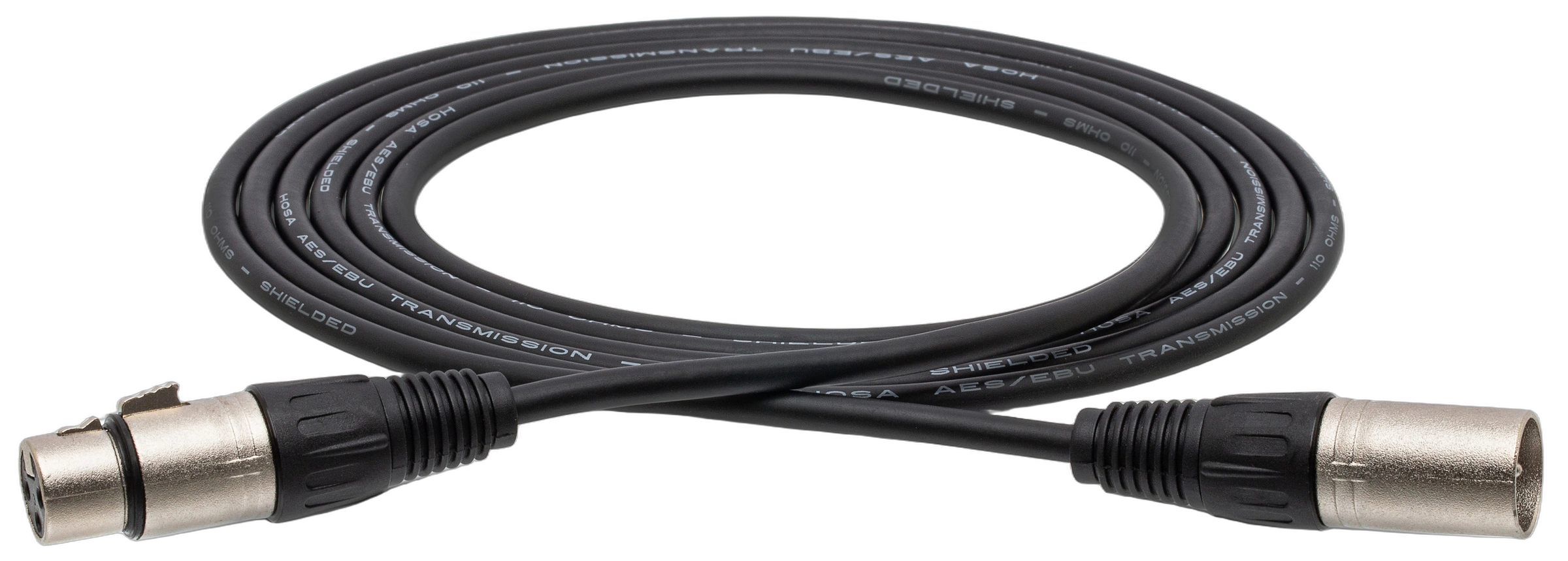

Hosa EBU-010 AES/EBU Cable — 110-Ohm XLR Digital Audio Cable, 10ft
EBU-010 Overview
The Hosa EBU-010 is a professional-grade AES/EBU digital audio cable engineered to meet the AES3 standard with a true 110-ohm characteristic impedance, preventing signal reflections and timing jitter that degrade digital audio integrity. Terminated with XLR3F to XLR3M connectors, it is built for connecting digital audio interfaces, A/D and D/A converters, digital mixing consoles, system processors, and studio monitors with digital inputs. The cable’s high-density OFC braided shield provides effective EMI and RFI rejection in dense studio racks and touring environments. It is equally suited for DMX512 lighting control applications, making it a versatile addition to any production kit.
At 10 feet, the EBU-010 is well suited for rack-to-rack patching and monitor feeds, with genuine XLR connectors featuring internal strain relief for long-term durability in both studio and live production use.
Key Features
- True 110-Ohm Impedance — Meets AES3 standard requirements, ensuring accurate digital data transfer between interfaces, converters, and monitors without signal reflections
- AES/EBU (AES3) Interface — Purpose-built for professional digital audio signal paths, not a repurposed microphone cable
- 24 AWG x 2 OFC Conductors — Oxygen-Free Copper conductors for low-resistance, high-integrity signal transmission
- High-Density OFC Braided Shield — Rejects EMI and RFI interference in crowded studio racks and touring rigs

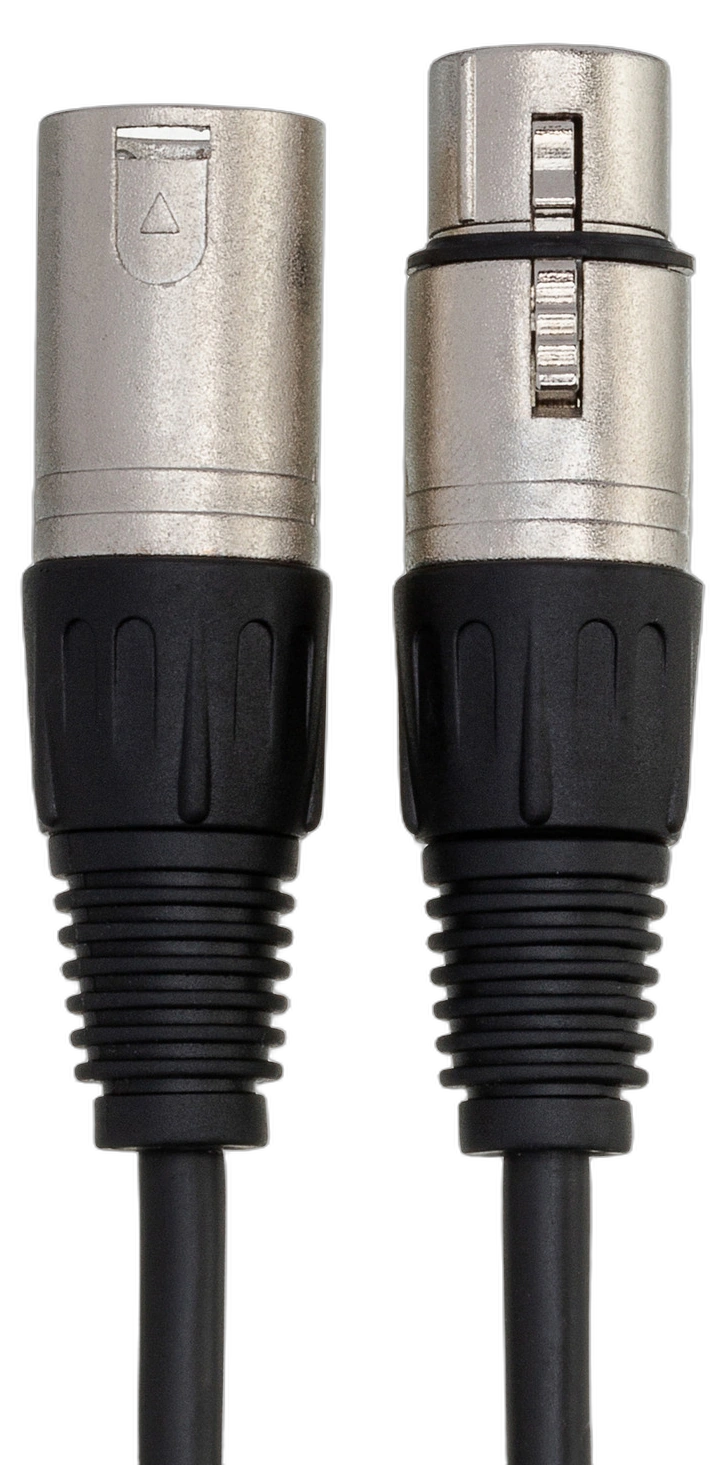

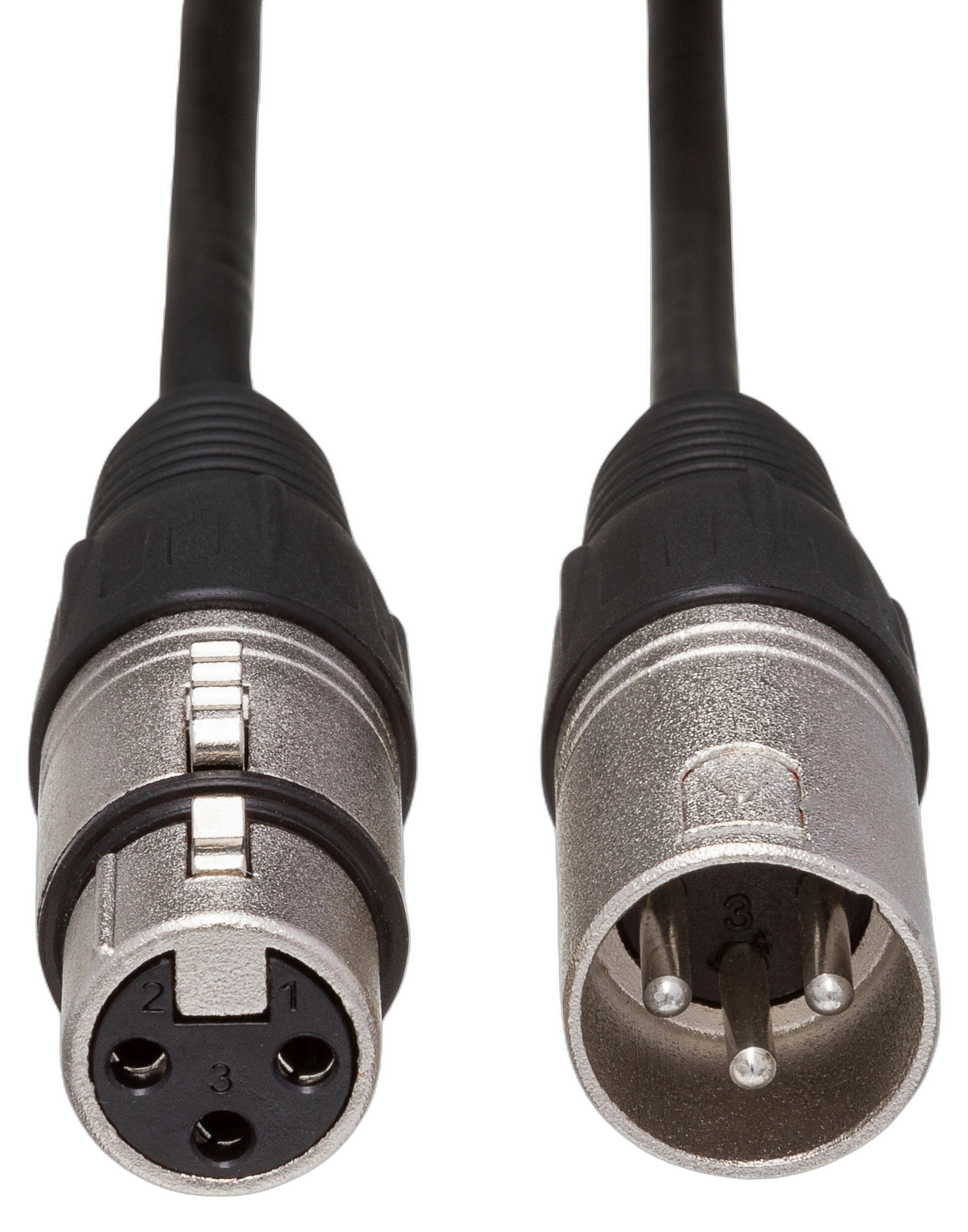

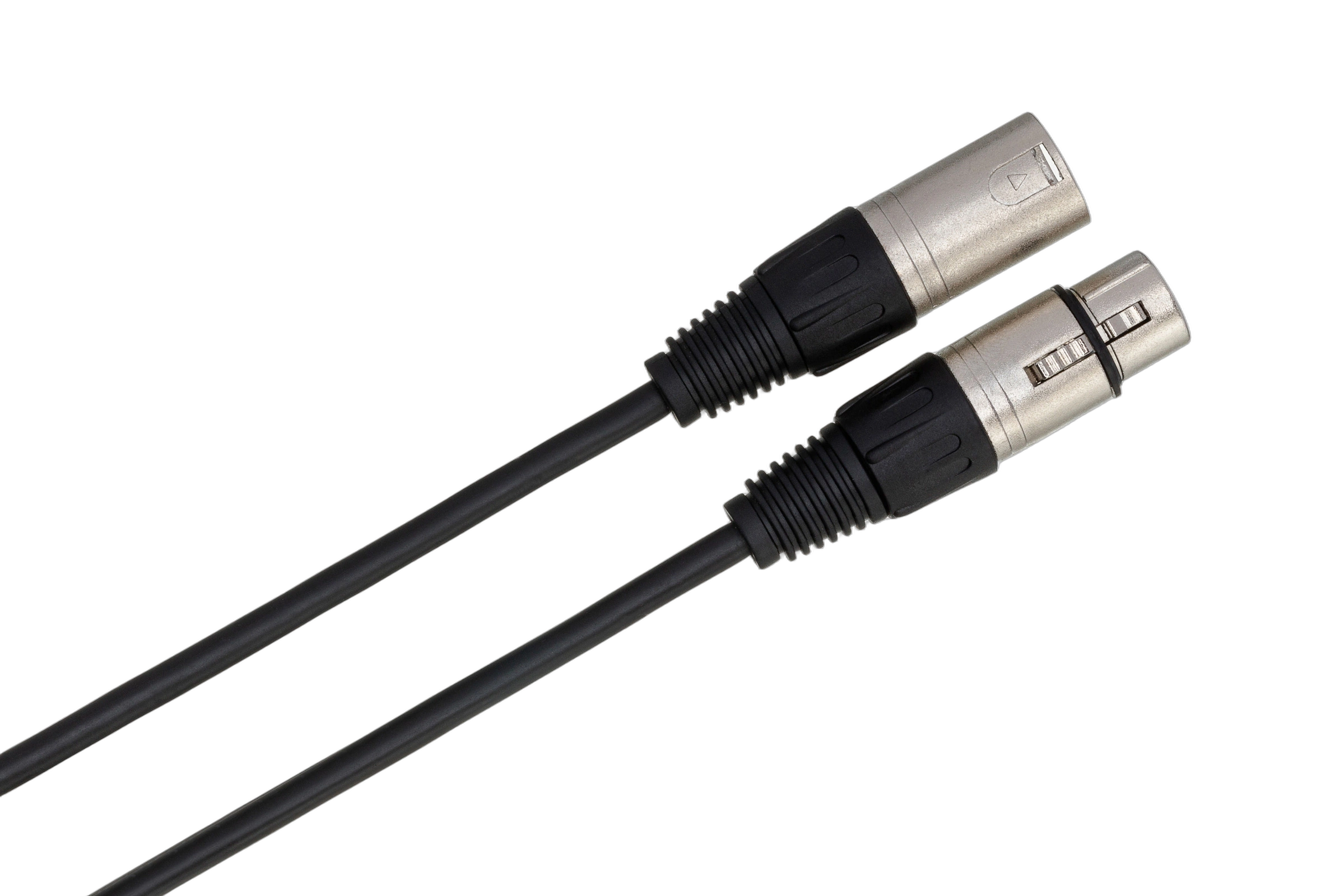

- XLR3F to XLR3M Termination — Standard professional connector configuration compatible with the full range of AES/EBU-equipped gear
- Internal Strain Relief — Genuine XLR connectors with strain relief for road-ready durability and reliable long-term connections
- DMX512 Compatible — Meets impedance requirements for DMX512 lighting control, serving dual-purpose in production environments
Connectivity & I/O
- 1x XLR3F (female) input connector
- 1x XLR3M (male) output connector
Technical Specifications
| Interface | AES/EBU (AES3) Digital Audio |
| Connectors | XLR3F to XLR3M |
| Impedance | 110-Ohm |
| Conductors | 24 AWG x 2 OFC |
| Shielding | High-density OFC Braid |
| Length | 10 ft |
