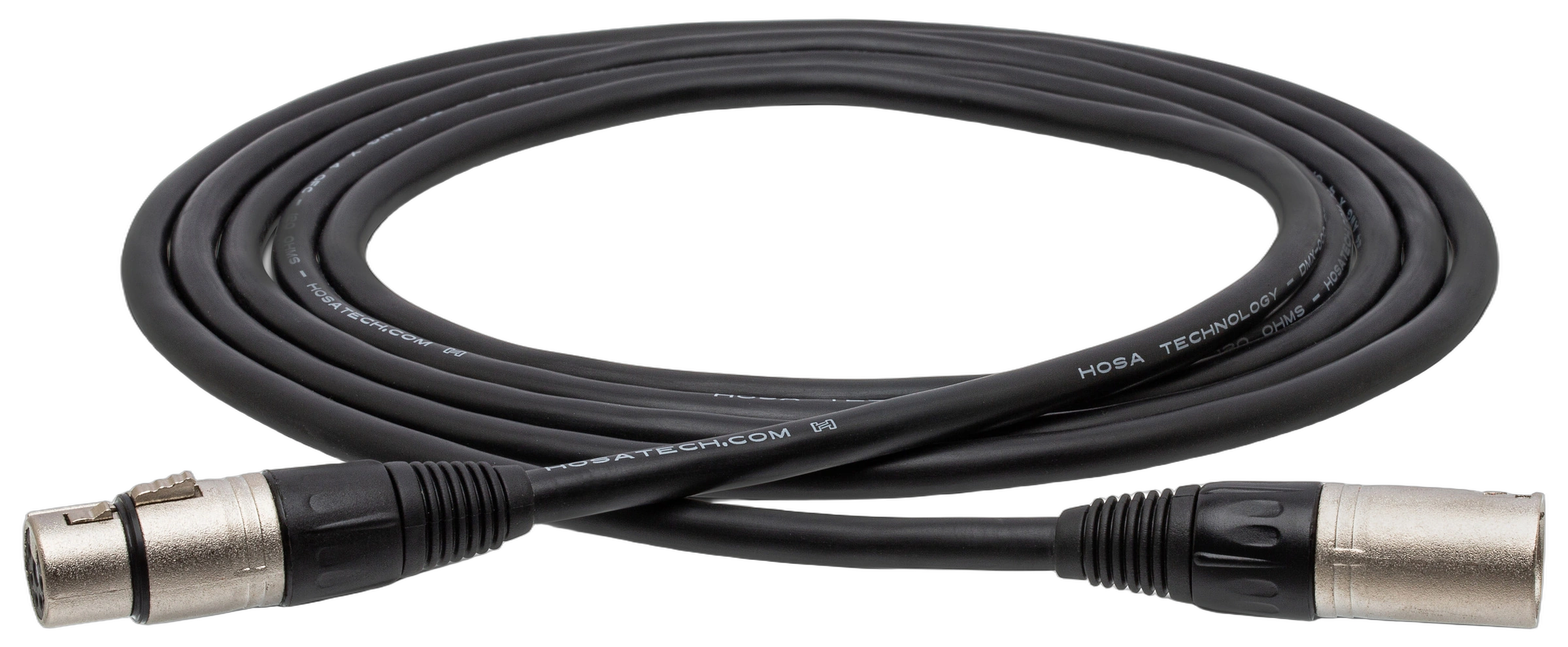

Hosa DMX-005 DMX512 Cable — XLR5 Male to XLR5 Female
DMX-005 Overview
The Hosa DMX-005 is part of the DMX-000 Series, engineered for dependable DMX512 signal transmission in professional lighting control applications. Built with 24 AWG x 4 Oxygen-Free Copper (OFC) conductors and a 120-ohm impedance rating that meets DMX512 specification requirements, this cable is suited for touring productions, installed venues, houses of worship, and theatrical environments. A hi-density OFC braided shield provides robust rejection of EMI and RFI interference that can corrupt lighting control data. It is an appropriate choice for lighting technicians, system integrators, and production companies requiring consistent, cost-effective DMX cabling.

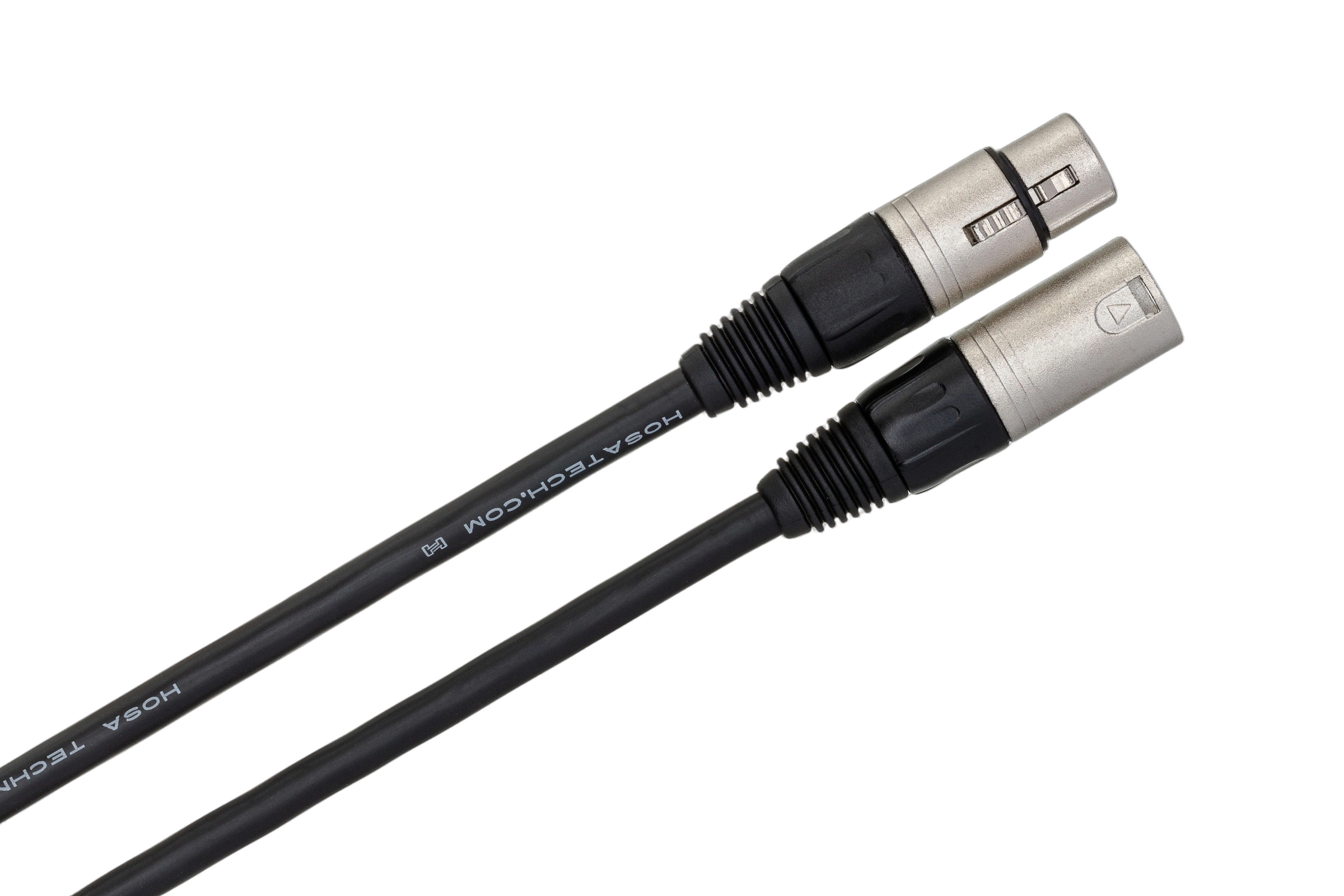

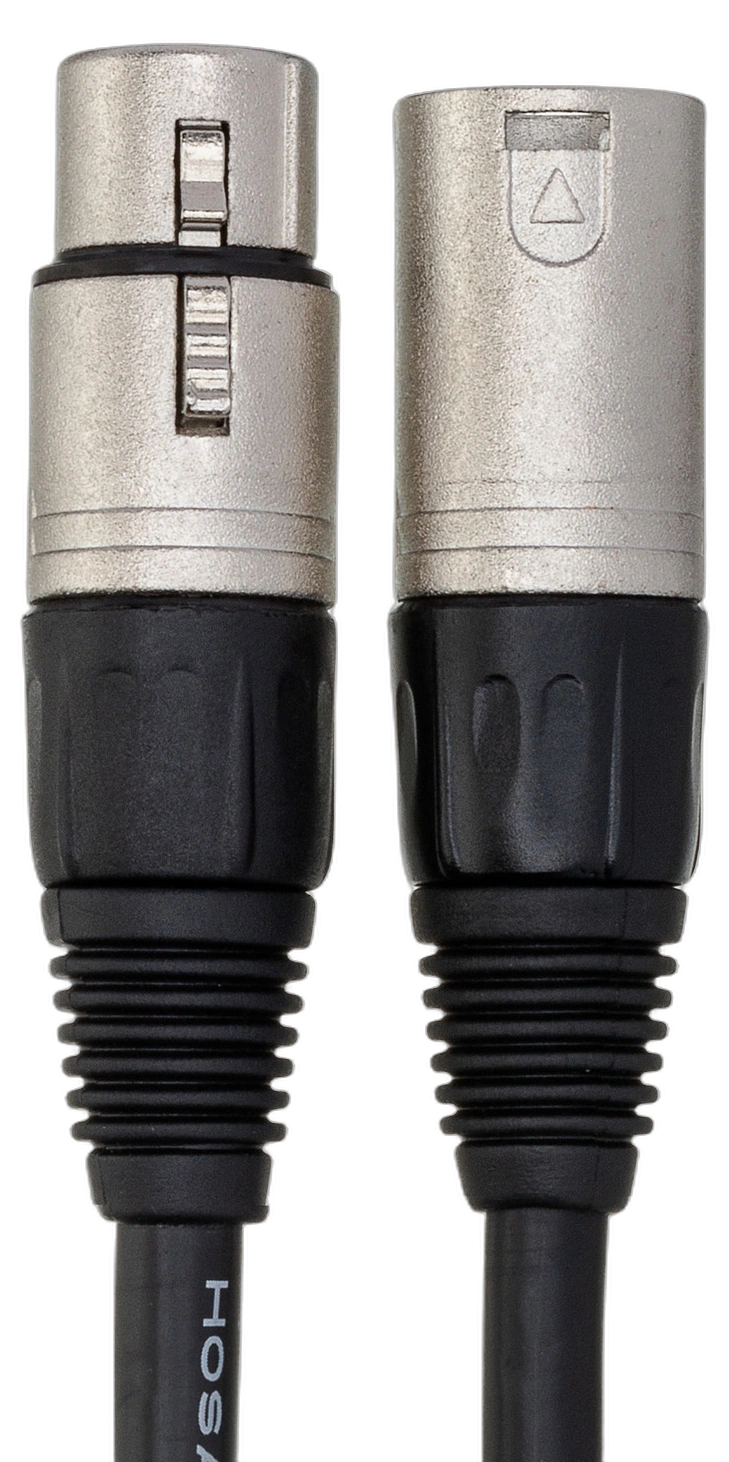

XLR5 connectors with internal strain relief add mechanical durability at the termination points, reducing the risk of signal failure under repeated connection cycles or in demanding touring conditions.
Key Features
- DMX512-Compliant Impedance — 120-ohm characteristic impedance meets the EIA-485 standard required for reliable DMX512 data transmission
- 24 AWG x 4 OFC Conductors — Oxygen-Free Copper construction minimizes signal degradation and enhances conductivity over the cable run
- Hi-Density OFC Braided Shield — Provides superior rejection of electromagnetic and radio frequency interference to protect data integrity
- XLR5 Male to XLR5 Female Termination — Standard 5-pin XLR configuration compatible with DMX512 fixtures, controllers, and splitters
- Internal Strain Relief — Integrated into the XLR connector housings to resist cable pull-out and extend service life in high-use environments
- DMX-000 Series Construction — High-quality components and consistent manufacturing tolerances designed for long-term, dependable service
Connectivity & I/O

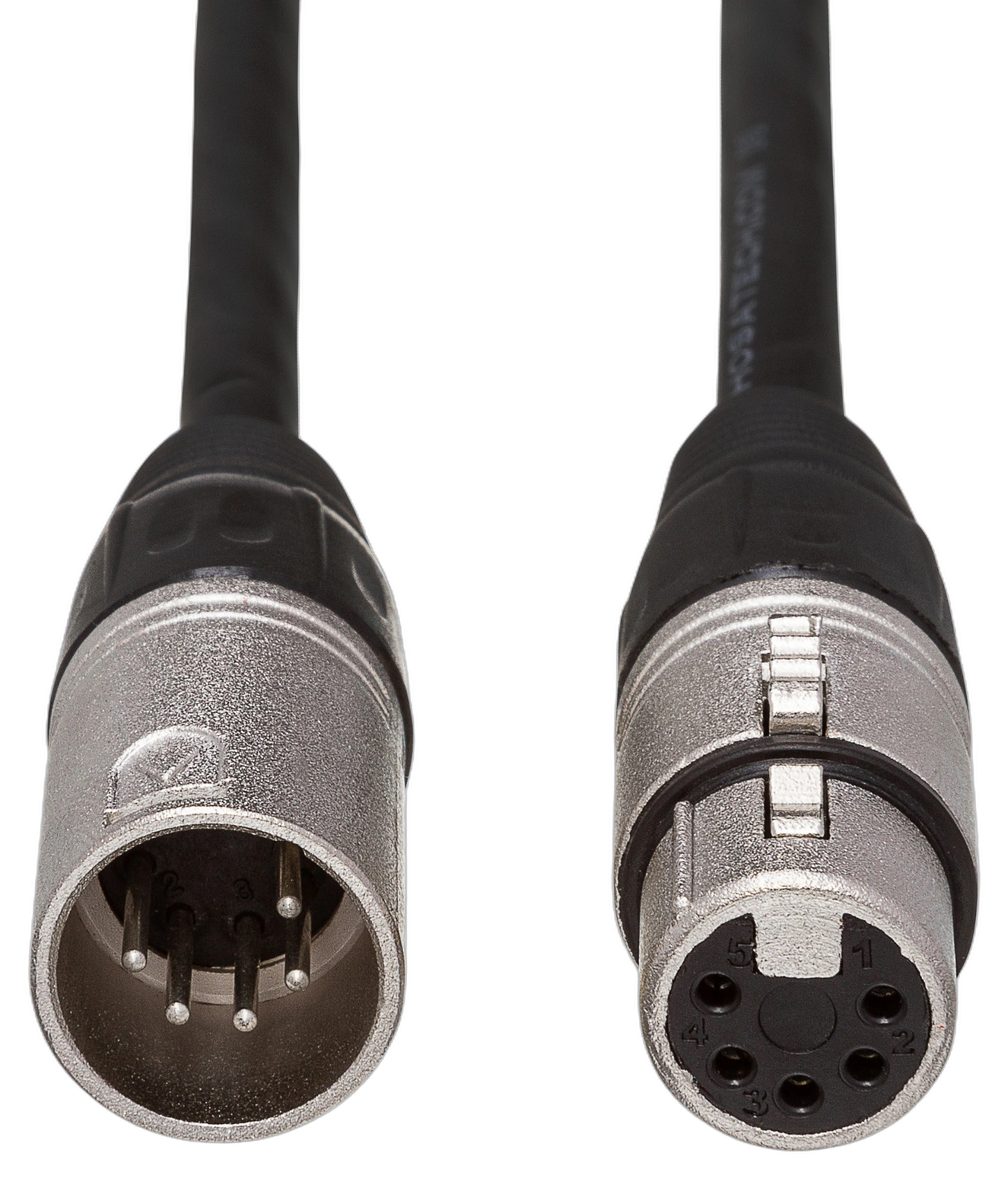

- 1 x XLR5 Male (5-pin) connector
- 1 x XLR5 Female (5-pin) connector
Technical Specifications
| Connectors | XLR5M to XLR5F |
| Conductors | 24 AWG x 4 OFC |
| Impedance | 120 ohm |
| Shield Type | Hi-density OFC braided shield |
