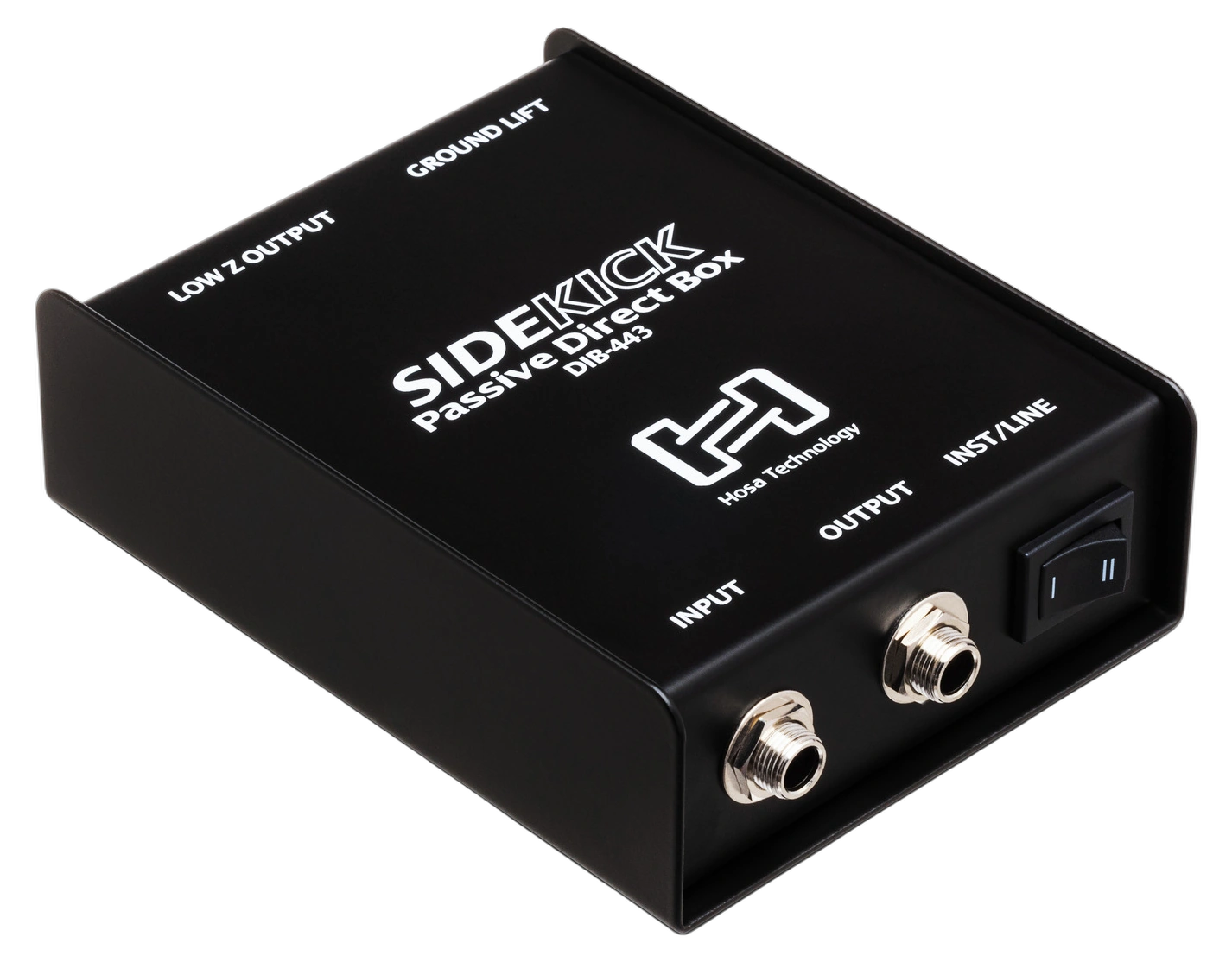

Hosa DIB-443 Sidekick Passive DI Box — Transformer-Isolated Instrument Interface
DIB-443 Overview
The Hosa DIB-443 is the passive model in the Pro-Conex Sidekick direct box series, designed to connect high-impedance instruments to mixing consoles and DAWs without the need for batteries or phantom power. The unit employs a transformer-based isolation circuit to convert unbalanced instrument-level signals to a balanced, line-level output, eliminating ground noise and hum across long cable runs. A selectable INST/LINE switch allows the operator to choose between a clean, dry signal path for DSP applications or an amplifier-driven line for natural, overdriven character. The DIB-443 is well suited for audio engineers, live sound technicians, and studio operators working with electric guitars, basses, keyboards, synthesizers, and effects processors.
Built into an all-metal housing, the DIB-443 is constructed to withstand the demands of professional touring and repeated stage deployment, making it a reliable addition to any signal chain toolkit.
Key Features
- Passive Transformer Isolation — Converts instrument-level signals to balanced line-level output with no external power source required, eliminating ground loops and hum
- INST/LINE Switch — Selectable switch accommodates different output levels, enabling a clean signal path for DSP or an amplifier-driven line for natural overdrive character
- Single-Channel Mono Operation — Dedicated single-channel design optimized for mono instrument sources including electric guitar, bass, keyboards, and effects processors
- 1/4 in TS Input — Accepts unbalanced instrument-level signals from standard mono 1/4 in outputs
- XLR3M Balanced Output — Delivers a balanced output via XLR3M connector for direct connection to console mic preamps or DAW interfaces
- All-Metal Housing — Rugged construction built for professional touring environments and frequent stage use
- No Power Required — Passive design requires no batteries or phantom power, ensuring dependable operation in any stage or studio scenario
Connectivity & I/O
- 1 x 1/4 in TS (Unbalanced) — Instrument Input
- 1 x XLR3M (Balanced) — Line Output
- 1 x INST/LINE Switch
Technical Specifications
| Line | Pro-Conex |
| Series | Sidekick |
| Model | DIB-443 |
| Circuit Type | Passive (Transformer-Based) |
| Channels | 1 (Mono) |
| Connectors | 1/4 in TS to XLR3M |
| Input | 1 x 1/4 in TS (Unbalanced) |
| Output | 1 x XLR3M (Balanced) |
| Switches | INST/LINE |
| SKU | DIB-443 |
