Acue Lighting Volcano 3 LED — High-Power RGB Fog Geyser
Volcano 3 Overview

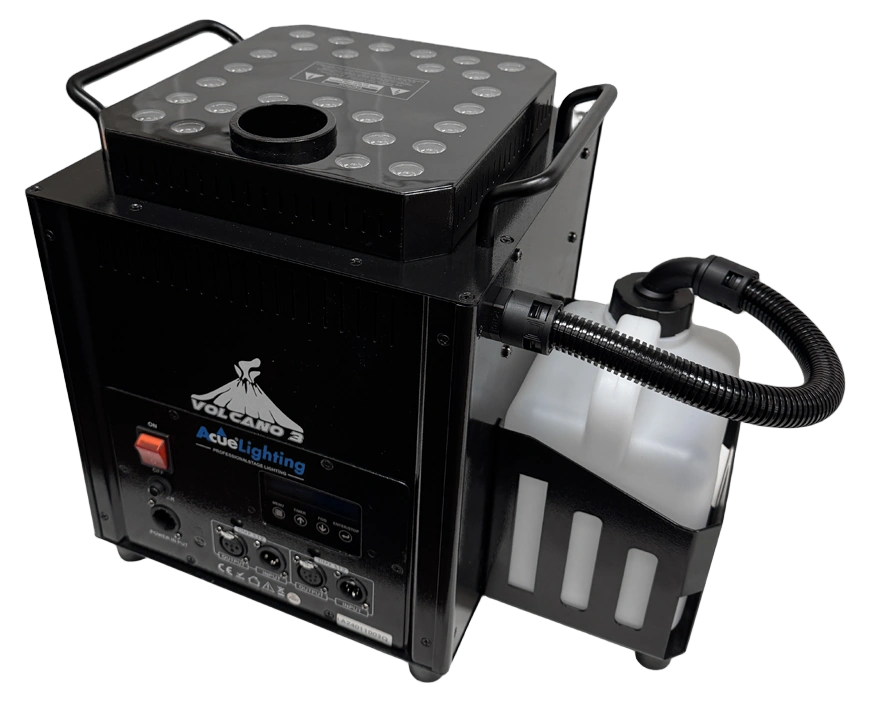

The Acue Lighting Volcano 3 LED is the flagship model in the Volcano line of vertical fog blasters, engineered for touring productions, live events, and venues requiring high-impact atmospheric effects without the logistical overhead of CO2 systems. The unit delivers vertical fog plumes up to 50 feet (15 meters), driven by a dual heater core design offering selectable ECO mode (1800W, single core) or full-power mode (3200W, dual core, max consumption 3500W). Illumination is provided by 27x3W RGB LEDs, with full DMX512 control via 3-pin and 5-pin connectors. The Volcano 3 is suited for system integrators, touring companies, and venue operators seeking a scalable, repeatable fog effect with precise DMX automation.
A built-in microprocessor manages even fog flow and automatically pumps fluid while maintaining heater temperature between blasts, ensuring the machine is ready for immediate triggering on every cue. The unit also supports inverted mounting via the included HD omega bracket, enabling downward fog flume configurations.
Key Features
- Dual Heater Core Design — Selectable ECO mode (single core, 1800W) or full-power mode (dual core, 3200W, max 3500W) to match available power and output requirements
- 50-Foot Vertical Fog Blast — Capable of projecting water-based fog plumes up to 50 feet (15 meters) vertically for large-stage impact
- 27x3W RGB LED Array — Integrated color illumination with programmable color presets via included 4-button wireless remote
- DMX512 Control — 5-channel DMX operation via 3-pin and 5-pin connectors, with wireless controller and manual operation modes also supported
- Built-In Microprocessor — Automatically manages fluid pumping and heater maintenance between blasts for consistent, on-demand output every trigger cycle
- 7-Minute Initial Heat-Up — Fast warm-up time minimizes pre-show preparation and supports tight production schedules
- 4L Integrated Tank — Onboard water-based fluid reservoir with a consumption rate of 7.5 ml/sec eliminates the need for external fluid lines during operation
- Inverted Mounting Capable — Includes HD omega bracket for upside-down installation, enabling downward fog flume effects from truss or rigging positions

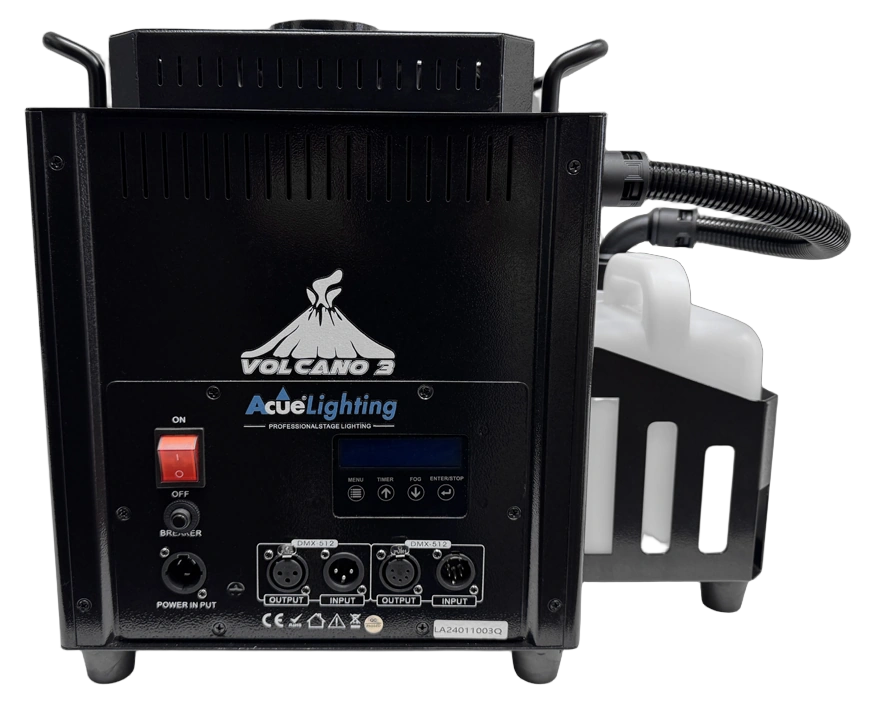

Connectivity & I/O
- DMX512 input/output via 3-pin XLR connector
- DMX512 input/output via 5-pin XLR connector
- Wireless controller receiver (included remote)
- AC power input: 110-120V, 50/60Hz, 20A
Technical Specifications
| Weight | 53 lbs |
| Dimensions | 16 × 20 × 17 in |
| Input Voltage | AC110-120V, 50/60Hz, 20A |
| Heater Power | 1800W / 3200W (max power consumption 3500W) |
| DMX | DMX512 (3-pin and 5-pin connectors), Wireless Controller, Manual |
| Channels | 5CH |
| Light Source | 27x3W RGB LEDs |
| Initial Heat Up Time | 7 min |
| Fog Blast Distance | Up to 50 feet (15 meters) |
| Fluid Consumption | 7.5 ml/sec |
| Tank Capacity | 4L of water-based fog liquid |
