Acue Lighting Platinum Hex Pro Bar 18 — 18x30W RGBWA+UV 6-in-1 LED Bar
Platinum Hex Pro Bar 18 Overview

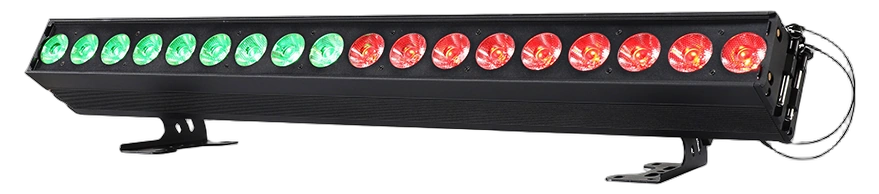

The Acue Lighting Platinum Hex Pro Bar 18 is a professional-grade LED bar fixture built for stage, broadcast, corporate, and live event applications. It features 18x30W RGBWA+UV 6-in-1 LEDs with 16-bit color mixing and supports four DMX channel modes: 11, 29, 108, and 119CH, enabling use as a wall washer, effect light, or fully pixel-controlled matrix fixture. Its fanless design and 100% flicker-free output make it equally suited for television studio sets and silent corporate environments. System integrators, lighting designers, and touring companies will find this fixture adaptable across a wide range of deployment scenarios.
The Platinum Hex Pro Bar 18 supports both vertical and horizontal installation configurations, ships with omega brackets, a pedestal base, and hanging clamps, and features a push-pin lock-and-groove system for seamless multi-fixture chaining.
Key Features
- 18x30W RGBWA+UV 6-in-1 LEDs — Full-spectrum color mixing with dedicated white, amber, and UV channels for precise color reproduction across all applications
- 16-Bit Color Mixing — RGBWAUV 16-bit resolution delivers smooth, artifact-free color transitions and fine dimming control
- Four DMX Channel Modes — Operates in 11, 29, 108, and 119CH modes to support simple wash control through full individual pixel addressing
- Individual Pixel Control — Full 119CH mode enables per-pixel RGB control across all 18 pixels for dynamic effects and pixel mapping
- Fanless, Flicker-Free Operation — Silent operation and 100% flicker-free output make this fixture compatible with broadcast cameras and studio environments

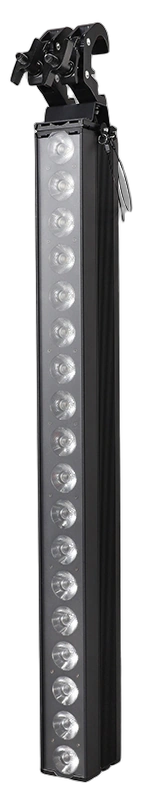

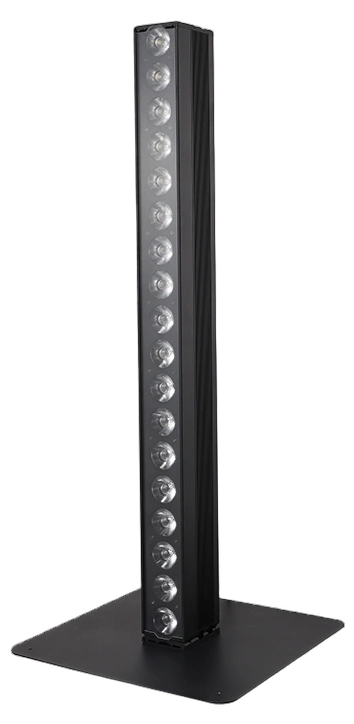

- Flexible Installation Options — Vertical floor stand, vertical hanging, and horizontal floor configurations supported via included accessories and built-in fast-lock tilt brackets
- Push-Pin Lock and Groove Connectivity — Enables quick, aligned chaining of multiple fixtures for seamless multi-bar arrays
- OLED Display with 4-Button Control — On-board setup and DMX addressing without external tools; supports RDM for remote device management
- Variable Strobe Effect — Adjustable strobe speed from 1 to 20Hz for live event and theatrical applications
- Quick-Release Diffusion Filter — Tool-free filter swap for rapid beam modification between setups

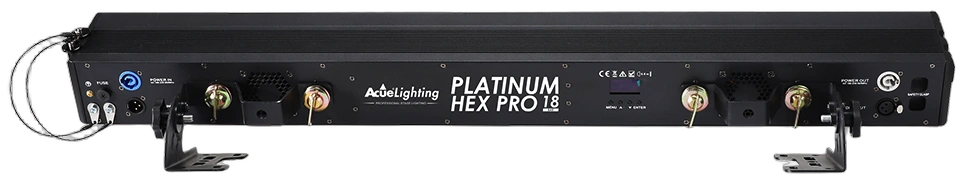

Connectivity & I/O
- 3-pin XLR DMX IN/OUT
- 5-pin XLR DMX IN/OUT
- PowerCon IN/OUT
Technical Specifications
| Power | AC100~240V, 50/60Hz |
| Light Source | 18PCS 30W RGBWAUV 6-in-1 LEDs |
| DMX Channel Modes | 11 / 29 / 108 / 119CH |
| Color Mixing | RGBWAUV 16-bit |
| Pixel Pitch | 52mm |
| Lenses | 45mm — 10° / 12° / 25° / 40° optional (contact for details) |
| Filter | Quick-release diffusion filter |
| Dimmer | 0–100% linear dimming, master channel and individual pixel via RGB pixel control in full channel mode |
| Strobe Effect | Variable speed, 1–20Hz |
| Control Modes | DMX512, Auto Run, Master/Slave, Sound Activation |
| RDM | Supported |
| Operation | OLED display with 4 on-board function control buttons |
| Connection/Rigging | 2-piece quick-release pin structural connection; multiple rigging points via omega brackets, base, and hanging clamp |
| Housing | Aluminum, Black |
| IP Grade | IP20 |
| Working Temperature | -30°C to 50°C |
| Weight (Unboxed) | 9.0 kg / 20 lbs |
