Acue Lighting Magic Par 14 — Silent RGBWA LED Par Fixture
Magic Par 14 Overview

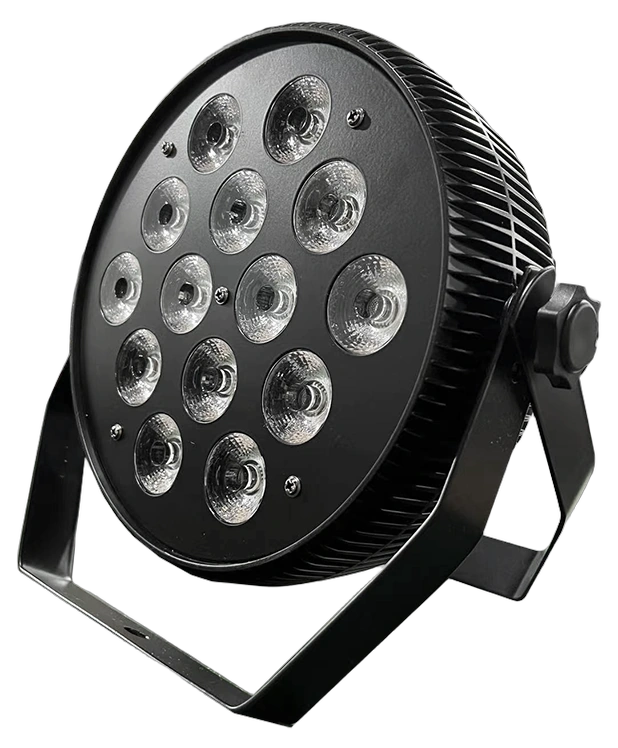

The Acue Lighting Magic Par 14 is a silent, fanless RGBWA LED par fixture designed for live events, theater productions, concerts, and touring applications. Each unit is powered by 14x12W 5-in-1 RGBWA LEDs, delivering full-color mixing with dedicated amber output for warm tones that standard RGBW fixtures cannot replicate. The fixture supports both wired 3-pin DMX and wireless DMX, offering flexible integration into existing control systems. This package is ideal for lighting designers, system integrators, and touring companies requiring a ready-to-deploy, matched set of fixtures.
Sold as a set of 8 units with a heavy-duty road case included, the Magic Par 14 is built for efficient transport and rapid deployment on tour or in permanent installations where noise-sensitive environments demand silent operation.
Key Features
- Fanless Silent Operation — Completely silent design with no moving cooling components, suitable for noise-sensitive environments including theater, broadcast, and houses of worship

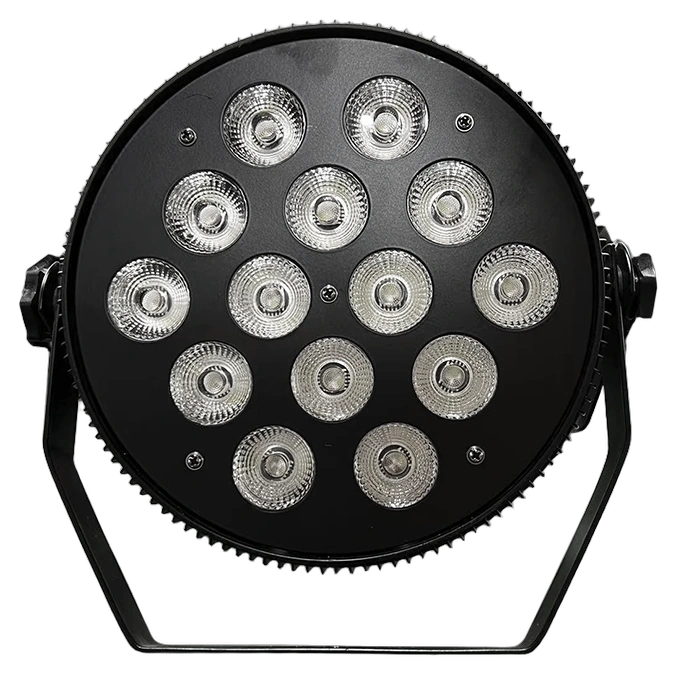

- 5-in-1 RGBWA LEDs — 14 LEDs each rated at 12W with dedicated amber element for accurate warm hue reproduction beyond standard RGB mixing
- Wireless DMX — Integrated wireless DMX receiver eliminates cable runs in complex rigging scenarios while maintaining full DMX control compatibility
- Dual DMX Channel Modes — Selectable 5-channel and 9-channel DMX modes to match the control resolution required by the production
- Linear Dimming — 0-100% smooth linear automatic dimming for precise intensity control across the full range
- 25° Beam Angle — Focused output suitable for highlighting performers, set pieces, and architectural elements
- Universal Power Input — 95–240V 50/60Hz Powercon input/output supports worldwide deployment without voltage conversion
- 8-Pack with Road Case — Complete touring-ready package with heavy-duty road case for protected transport and organized storage

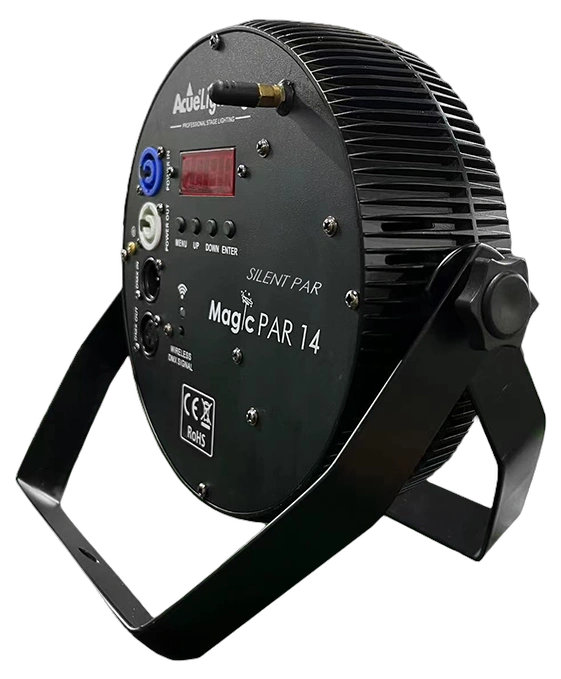

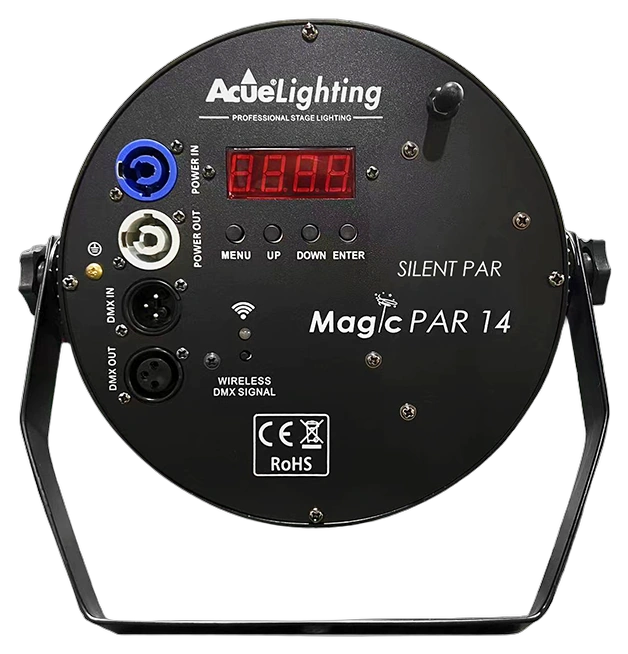

Connectivity & I/O
- 3-pin DMX input and output (wired)
- Wireless DMX input
- Powercon input and output (power linking)
Technical Specifications
| Light Source | 14x12W 5-in-1 RGBWA LEDs |
| DMX Channels | 5 & 9 channel mode |
| DMX Input | 3-pin DMX input/output, wireless DMX |
| Dimming | 0–100% linear automatic dimming |
| Beam Angle | 25° |
| Power Input | 95–240V 50/60Hz Powercon input/output |
| Total Power Draw | 200W |
