Acue Lighting Flex 380 IP — IP65-Rated Outdoor Moving Head Package
Flex 380 IP Overview

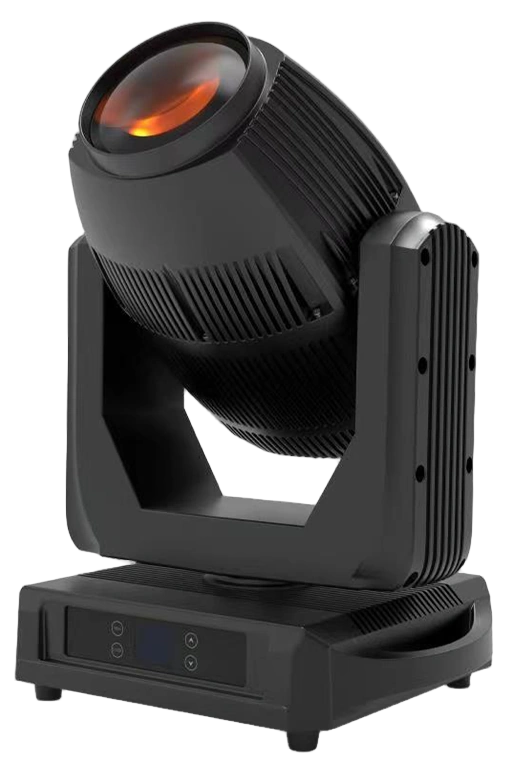

The Acue Lighting Flex 380 IP is a professional outdoor moving head fixture engineered for demanding large-scale applications including stadiums, concert stages, and festival environments. Powered by an Osram Sirius HRI 380W Pro lamp rated at 7700K and 2,500 hours, the fixture delivers a tight 2° fixed beam angle with a maximum output of 470W. Its IP65 weather-resistant rating with IP-rated DMX in/out connections ensures reliable operation in harsh outdoor conditions. This package is ideal for touring companies, system integrators, and production houses requiring matched, road-ready fixtures.
The Flex 380 IP ships as a package of two fixtures housed in a 2-in-1 flight case, providing a deployment-ready solution that reduces rigging time and protects the fixtures during transport.
Key Features
- IP65 Weather Resistance — Fully rated for outdoor use with IP-rated 3-pin and 5-pin DMX in/out connections, suitable for exposed stage and stadium environments
- Dual Rotating Prism System — Independent 16-facet and 48-facet rotating, indexable prism wheels deliver a wide range of combinable beam effects
- Osram Sirius HRI 380W Pro Light Source — Industry-standard discharge lamp producing a 7700K output with a 2,500-hour rated lifespan
- 2° Fixed Beam Angle — Produces a tight, high-intensity beam suited for long-throw outdoor applications
- 16 Gobos + Open — Rotating gobo wheel with 16 positions plus open for versatile pattern projection
- 13 Colors + Open — Color wheel with 13 positions plus open for precise color selection
- Pan/Tilt Movement — 540° pan and 270° tilt, both with 16-bit control for smooth, precise positioning
- Multiple DMX Channel Modes — Selectable 13, 15, or 17 channel modes to match system integration requirements
- 2-in-1 Flight Case Included — Package includes a matched flight case for both fixtures, ready for touring and installation deployment
Connectivity & I/O
- IP-rated 3-pin DMX input and output
- IP-rated 5-pin DMX input and output
- Power input: 100-240V 50/60 Hz with IP-rated connections
Technical Specifications
| Power | 100-240V 50/60 Hz, IP-rated in/out connections |
| Light Source | Osram Sirius HRI 380W Pro, 2,500 Hr, 7700K |
| Maximum Output | 470W |
| Total Power Draw | 500W |
| Gobos | 16 gobos + open |
| Color | 13 colors + open |
| Prism 1 | 16-facet rotating and indexable prism wheel |
| Prism 2 | 48-facet rotating and indexable prism wheel |
| Beam Angle | 2° fixed |
| Dimming | 0-100% linear automatic dimming |
| Shutter | 2 modes: strobe and pulse |
| Focus | Precise mechanical focus control |
| DMX Channels | 13, 15, or 17 channel modes |
| Pan | 540° (16-bit control) |
| Tilt | 270° (16-bit control) |
| DMX Input | IP-rated 3-pin and 5-pin DMX in/out |
| IP Rating | IP65 |
| Package Contents | 2 fixtures + 2-in-1 flight case |
