K&M 24169 Ring-Lock Speaker Wall Mount — Black

24169 Overview

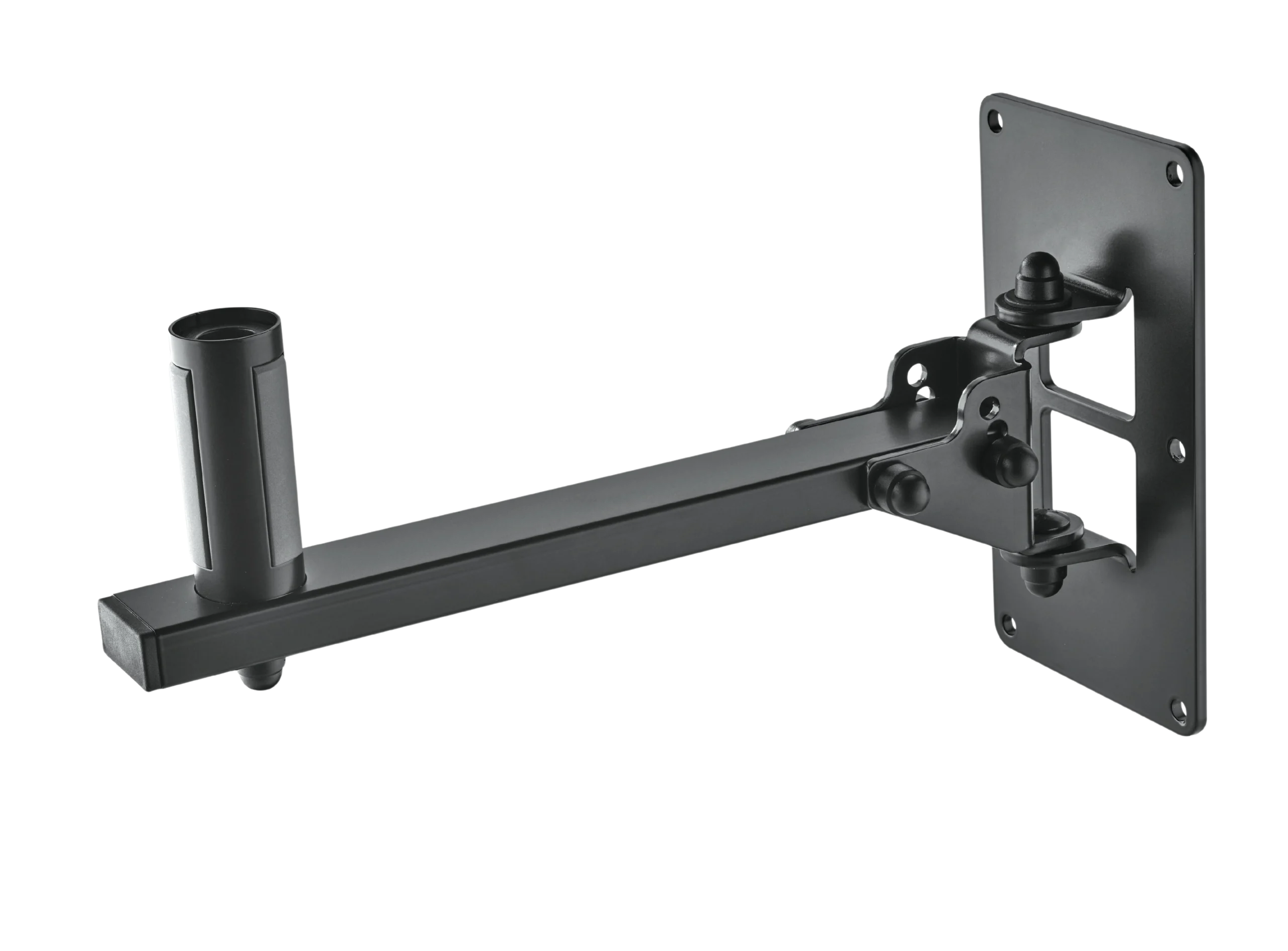

The K&M 24169 Ring-Lock Speaker Wall Mount is a robust steel mounting solution engineered for permanent speaker installations in venues, houses of worship, broadcast facilities, and commercial AV environments. Built to support speakers with a flange socket at a maximum load capacity of 25 kg, it provides a 120° continuous swivel range and three-step tilt adjustment at 0°, -12.5°, and -25° for precise coverage optimization. The mount’s patented straddling bearing-anchors ensure effective clamping of the speaker in any position, eliminating unwanted movement once set. This product is suited for system integrators and installation professionals requiring a reliable, repeatable mounting solution.

The 220 x 120 mm wall plate provides a stable anchoring footprint, and the 359 mm wall clearance accommodates a wide range of speaker cabinet depths without compromising positioning flexibility.

Key Features

• Ring-Lock Straddling Bearing-Anchors — Patented design with diameter 35 to 37 mm x 85 mm mounting bolt guarantees effective clamping and speaker security in any adjusted position
• 120° Continuous Swivel — Fully adjustable horizontal rotation for precise speaker aiming and coverage optimization

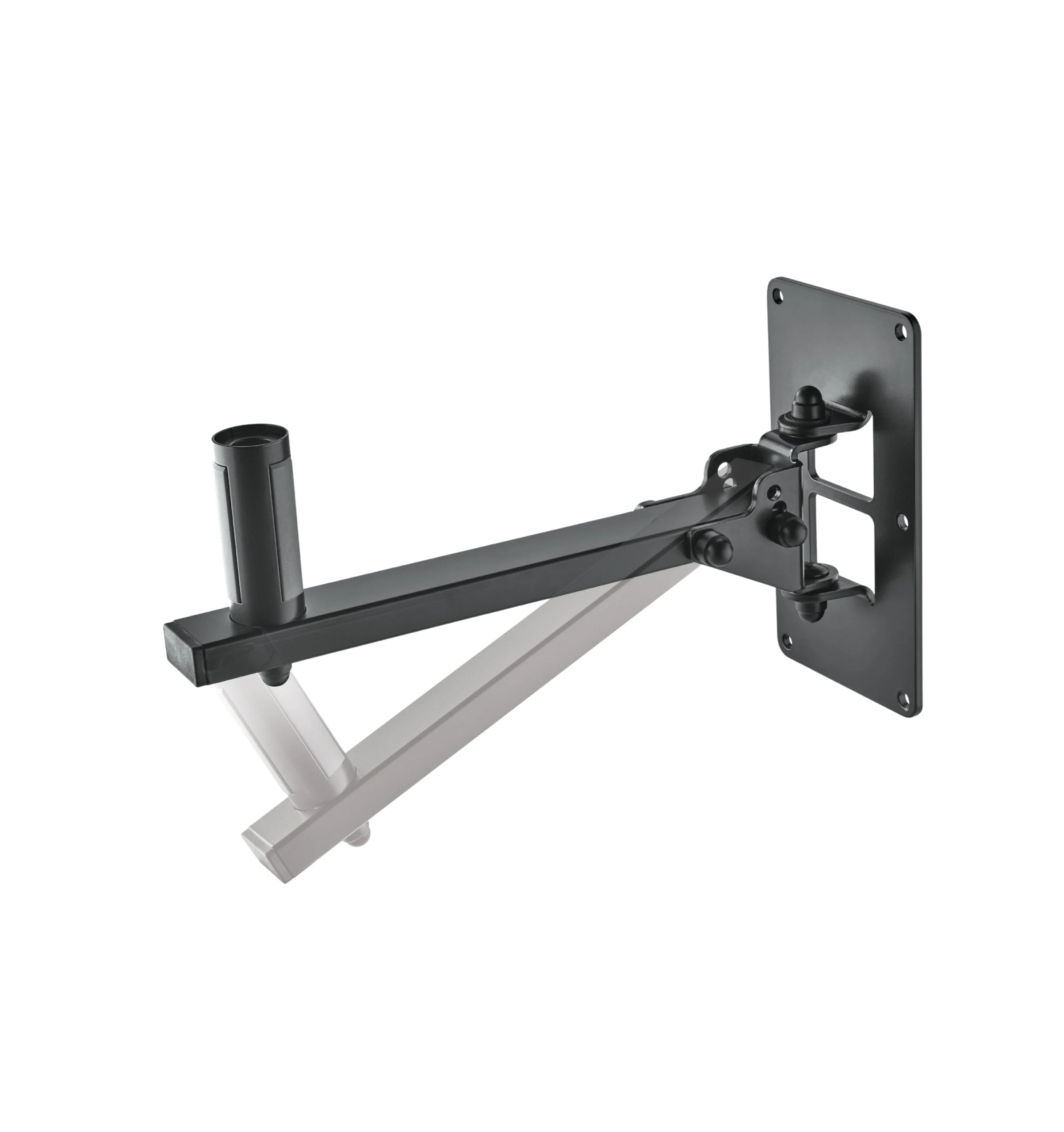

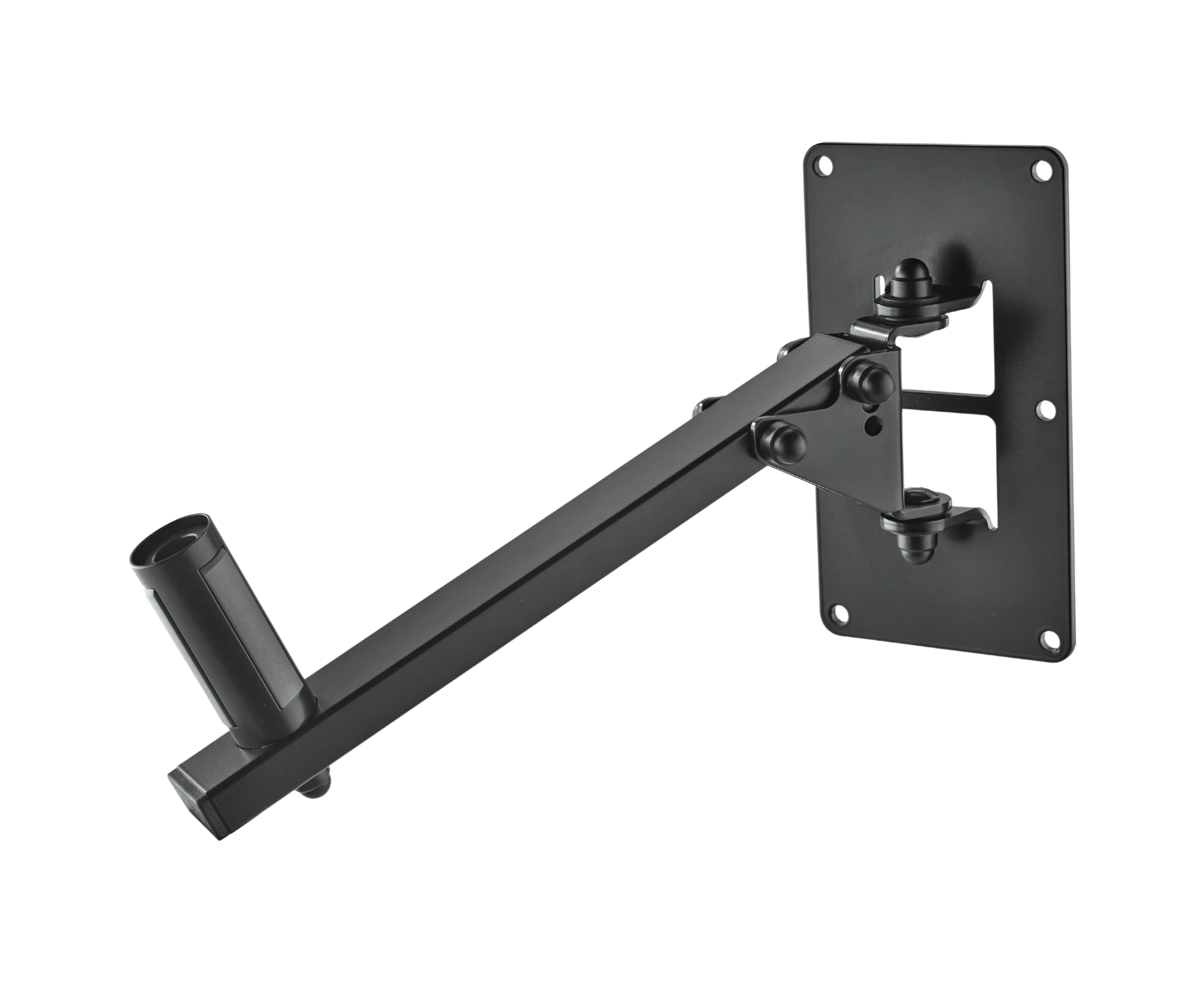

• Three-Step Tilt Adjustment — Fixed tilt positions at 0°, -12.5°, and -25° allow consistent, repeatable downward angling for audience coverage
• 25 kg Maximum Load Capacity — Rated for a wide range of professional loudspeaker cabinets with flange socket compatibility
• All-Steel Construction — Heavy-gauge steel build provides structural integrity and long-term reliability in permanent installations
• 359 mm Wall Clearance — Sufficient projection from the wall surface to accommodate varied speaker cabinet profiles
• 220 x 120 mm Wall Plate — Broad mounting plate distributes load effectively across the wall surface for secure anchoring

Connectivity & I/O

• Mounting bolt: straddling bearing-anchors, diameter 35 to 37 mm x 85 mm
• Wall plate dimensions: 220 x 120 mm
• Wall clearance: 359 mm
• Wall-to-bolt clearance: 314 mm

Technical Specifications
