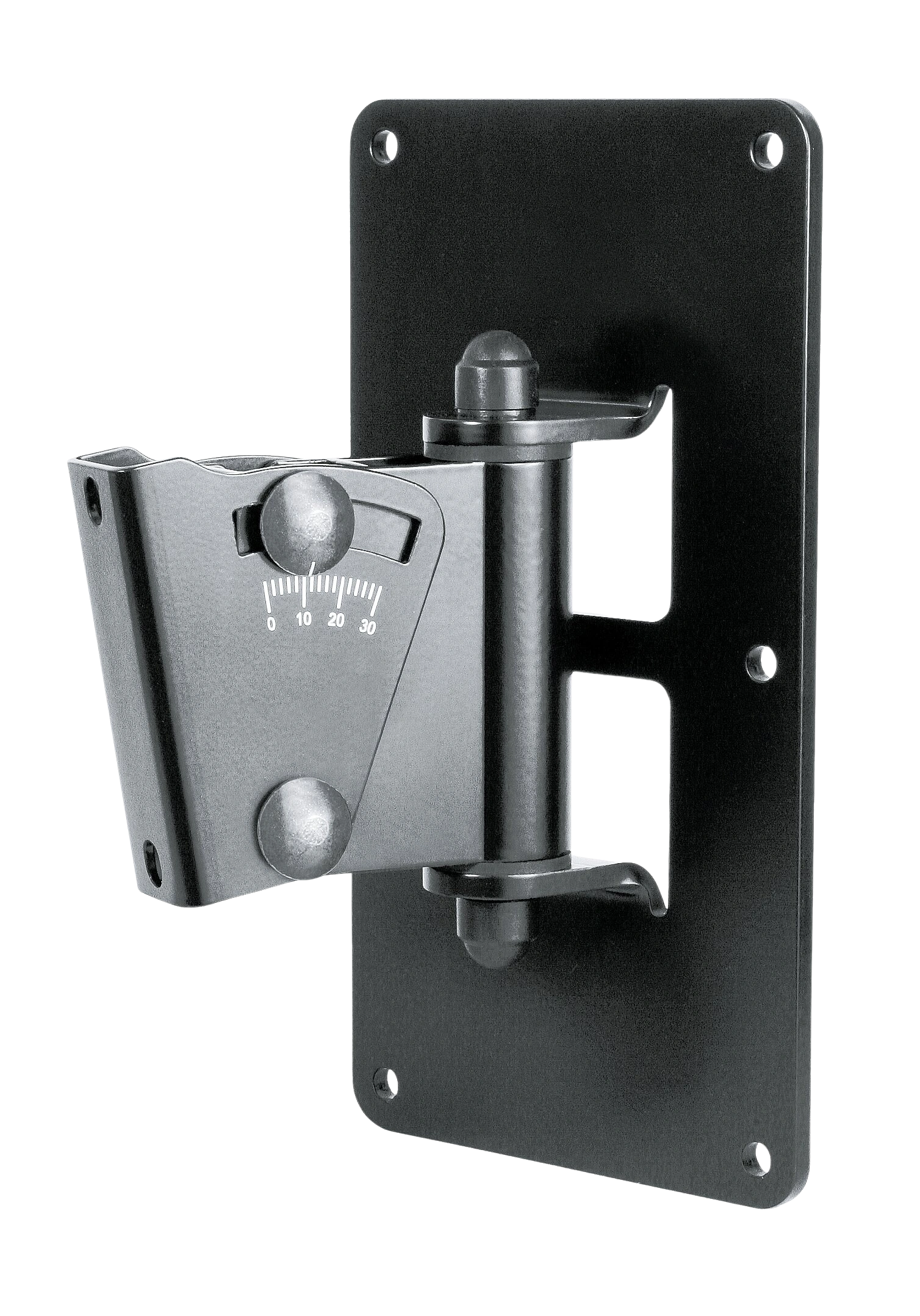

K&M 24481 Speaker Wall Mount — Heavy-Duty Black Steel

24481 Overview

The K&M 24481 is a professional-grade steel speaker wall mount engineered for permanent installation in venues, houses of worship, commercial installations, and fixed AV systems. Its large 220 x 120 mm wall plate distributes load effectively for heavier loudspeakers up to 25 kg, while the combined 90° swivel and 0° to -30° tilt range allows precise coverage adjustment after installation. The hook-and-lock mounting system simplifies single-person installation and is well suited for integrators working across multiple mounting points. Constructed entirely from steel and finished in black, the 24481 is built for long-term reliability in fixed installations.

The 104 mm wall clearance provides adequate depth for most speaker cabinet rear profiles, and the swivel-and-tilt mechanism locks securely once aimed, maintaining position under continuous load.

Key Features

• High Load Capacity — supports speakers up to 25 kg, suitable for a wide range of full-range and passive loudspeaker cabinets
• 90° Swivel Range — allows horizontal aiming adjustment for coverage optimization after wall installation
• 0° to -30° Tilt — downward tilt range directs sound toward the listening area without additional hardware
• Large Wall Plate — 220 x 120 mm plate distributes load across a broader surface area, improving stability for heavier enclosures
• Hook-and-Lock Mounting — convenient hooking-in and screw locking system speeds up installation and allows repositioning if needed
• Steel Construction — all-steel build provides structural integrity for permanent, load-bearing installations
• 104 mm Wall Clearance — provides sufficient standoff depth to accommodate most speaker cabinet rear profiles
