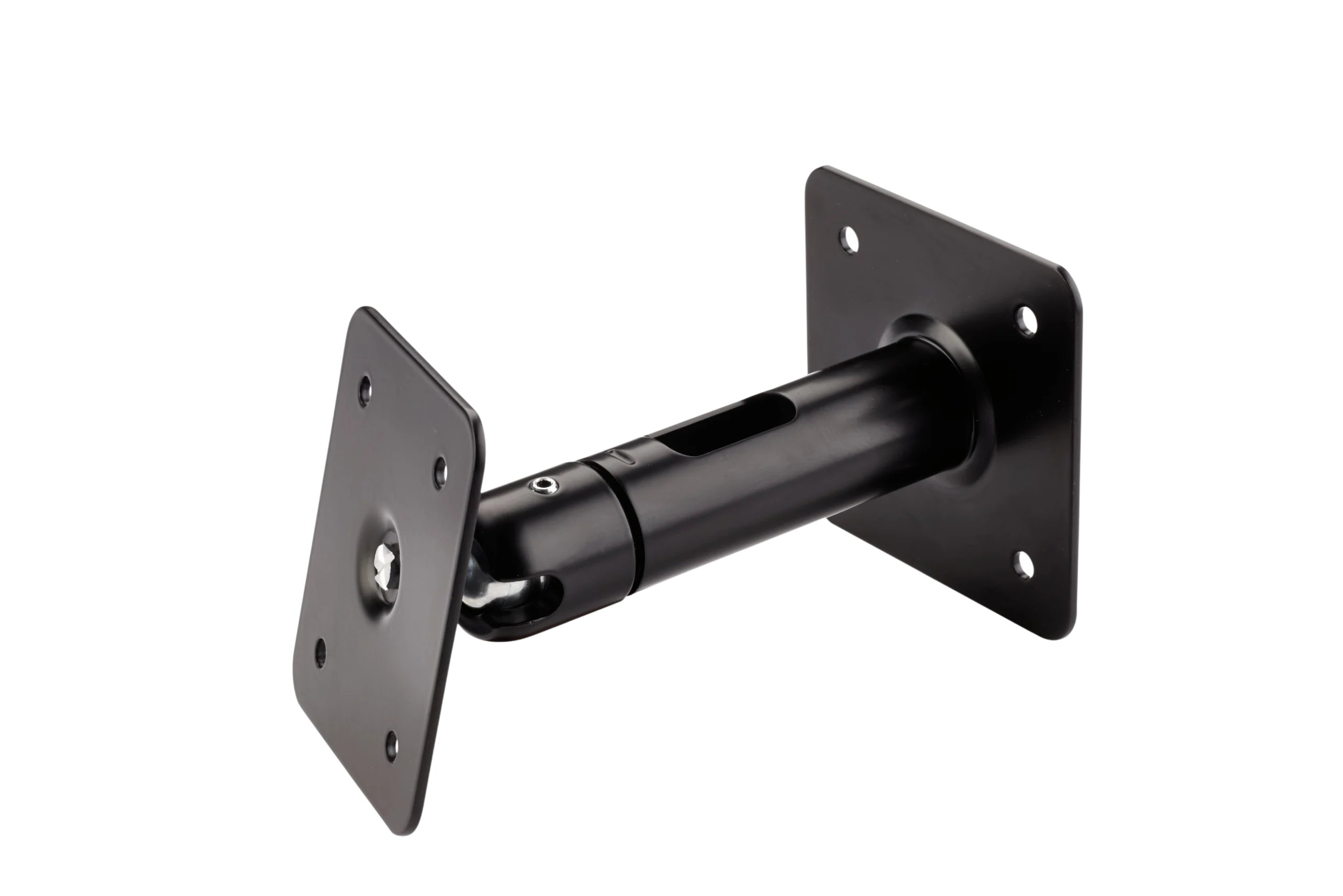

K&M 24185 Speaker Wall and Ceiling Mount — Black
24185 Overview
The K&M 24185 is a compact steel wall and ceiling mount engineered for permanent installation of smaller loudspeakers in venues, houses of worship, retail environments, and commercial AV systems. The unit features a swivel ball joint assembly providing 360° rotation and 0° to 90° angle of inclination, allowing precise speaker positioning after installation. A built-in cable outlet delivers an internal cable guide for clean, concealed wiring in finished installations. System integrators and AV installers working on permanent fixed installations will find this mount well suited to both wall and ceiling mounting configurations.
Constructed from steel and finished in black, the 24185 maintains a low-profile 160 mm wall clearance while offering a bearing plate of 95 x 80 mm and a wall plate of 95 x 95 mm, keeping the footprint minimal on any surface.
Key Features
- Swivel Ball Joint Assembly — provides continuous 360° horizontal rotation and 0° to 90° vertical angle of inclination for flexible speaker aiming after mounting
- Dual Mounting Orientation — attaches to both walls and ceilings, expanding placement options within a single installation
- Internal Cable Guide — integrated cable outlet routes speaker cables internally for concealed, professional-grade installations
- 10 kg Maximum Load Capacity — rated to support smaller loudspeakers up to 10 kg securely in fixed installations
- Steel Construction — full steel build provides structural rigidity and long-term reliability in permanent installs
- Compact Wall Clearance — 160 mm wall clearance keeps loudspeakers close to the mounting surface for a clean, unobtrusive appearance
- Black Finish — matte black finish integrates discreetly into architectural environments and standard installation aesthetics
Connectivity & I/O
- Internal cable guide with cable outlet for concealed speaker cable routing
Technical Specifications
| Adjustment | Swivel ball joint assembly |
| Angle of Inclination | 0° to 90° |
| Swivel | 360° |
| Max. Load Capacity | 10 kg |
| Wall Clearance | 160 mm |
| Bearing Plate | 95 x 80 mm |
| Wall Plate | 95 x 95 mm |
| Material | Steel |
| Weight | 0.65 kg |
| Mounting | Wall and ceiling |
| Finish | Black |
| EAN | 4016842101122 |
