K&M 24120 Speaker Wall Mount — Swivel and Tilt Black
24120 Overview

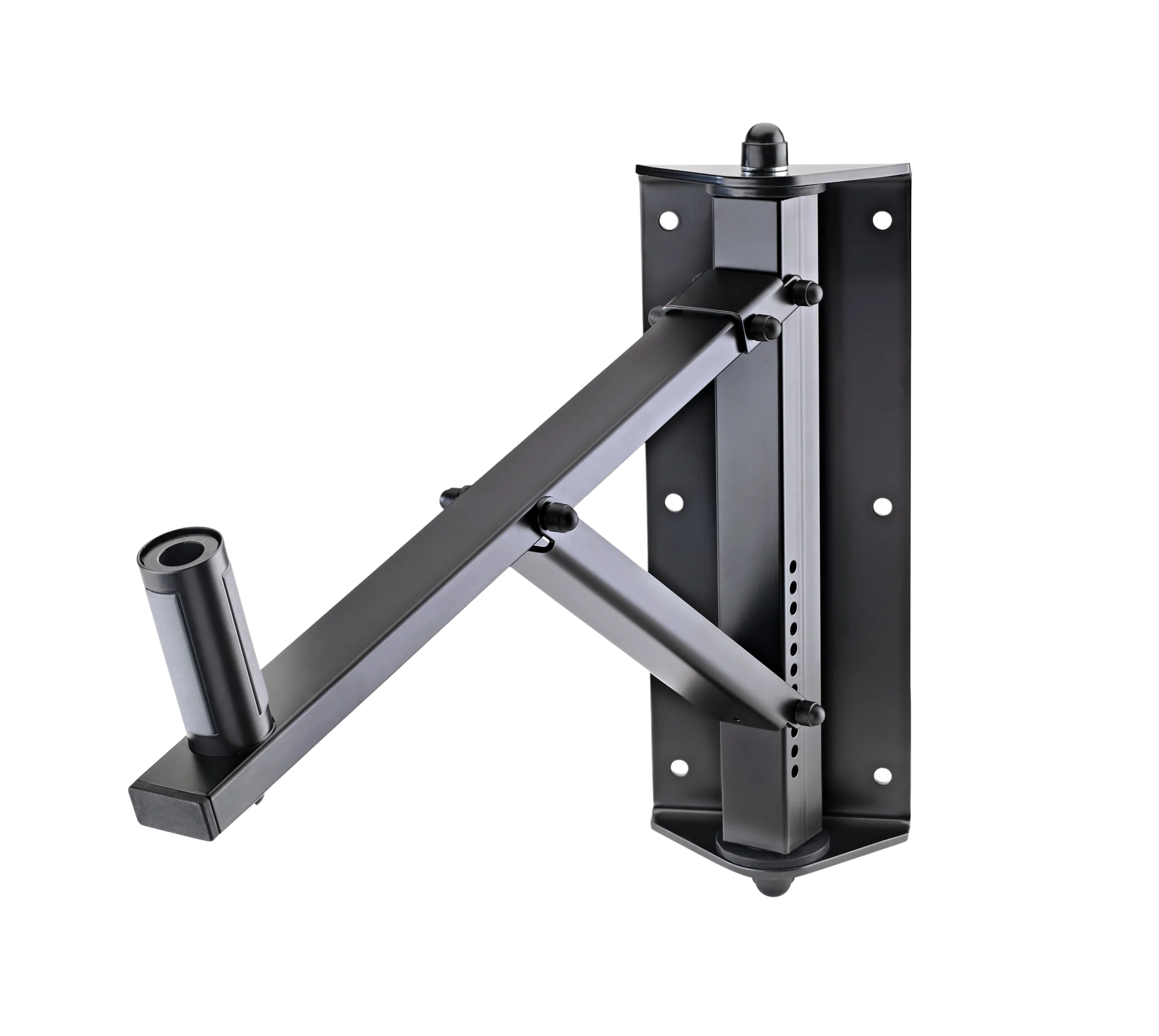

The K&M 24120 is a heavy-duty steel speaker wall mount engineered for permanent installation in venues, houses of worship, commercial AV systems, and installed sound environments. It provides 180° swivel adjustment and 11 discrete tilt settings spanning 0° to -22°, allowing precise speaker positioning to cover any listening zone. The mount supports a maximum load capacity of 50 kg, making it suitable for a wide range of full-range and passive loudspeakers. System integrators and installation contractors will find this mount well suited to demanding fixed-installation projects requiring reliable, repeatable positioning.
K&M’s patented straddling bearing-anchor system clamps the speaker bolt securely at any selected position, and the resonance-optimised construction minimises unwanted vibration transfer to the wall structure during operation.
Key Features
- 11-Position Tilt Adjustment — Gradual inclination settings from 0° to -22° allow precise downward angling to target specific coverage areas
- 180° Swivel — Continuously adjustable horizontal rotation for flexible speaker orientation without repositioning the wall plate

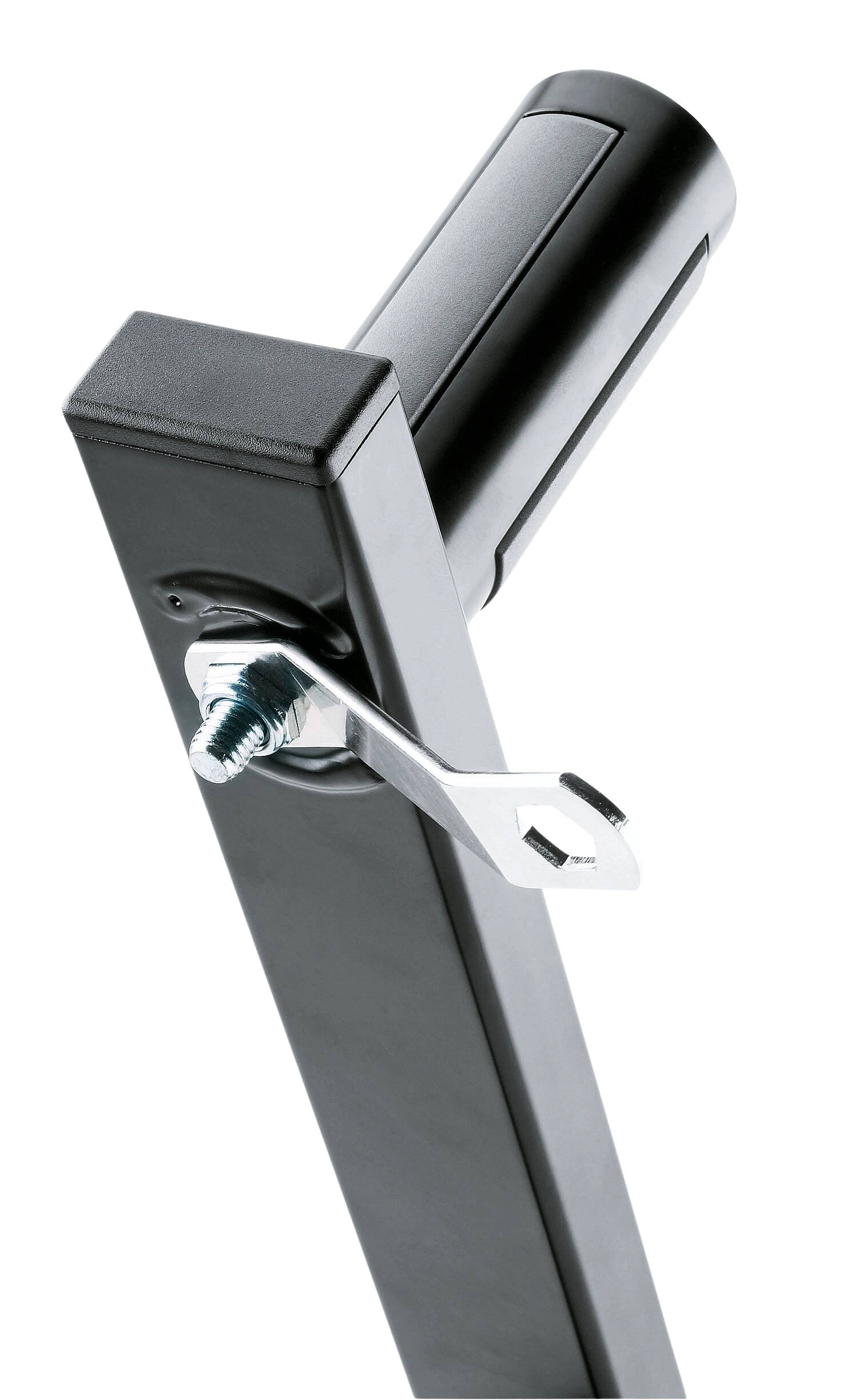

- Patented Straddling Bearing-Anchors — Accepts mounting bolts with a diameter of 35 to 37 mm x 85 mm, guaranteeing effective clamping of the speaker in any selected position
- 50 kg Maximum Load Capacity — Supports a broad range of professional loudspeakers in permanent installation applications
- Resonance-Optimised Construction — Steel fabrication and structural design reduce vibration transmission to the mounting surface
- 350 x 140 mm Wall Plate — Provides a stable, distributed mounting footprint suitable for solid wall surfaces
- 441 mm Wall-to-Bolt Clearance — Provides adequate standoff distance to accommodate larger cabinet profiles
Connectivity & I/O
- Wall plate dimensions: 350 x 140 mm
- Mounting bolt compatibility: straddling bearing-anchors, diameter 35 to 37 mm x 85 mm
- Wall-to-bolt clearance: 441 mm
Technical Specifications
| Adjustment | Gradual in 11 settings |
| Angle of Inclination | 0° to -22° |
| Swivel | 180° |
| Max. Load Capacity | 50 kg |
| Wall Plate | 350 x 140 mm |
| Wall-to-Bolt Clearance | 441 mm |
| Mounting Bolt | Straddling bearing-anchors, diameter 35 to 37 mm x 85 mm |
| Material | Steel |
| Weight | 4.9 kg |
| Mounting | Attaches to walls |
| Finish | Black |
| EAN | 4016842817467 |
