K&M 24359 Adapter Plate 6 — Speaker Wall Mount Adapter
24359 Overview

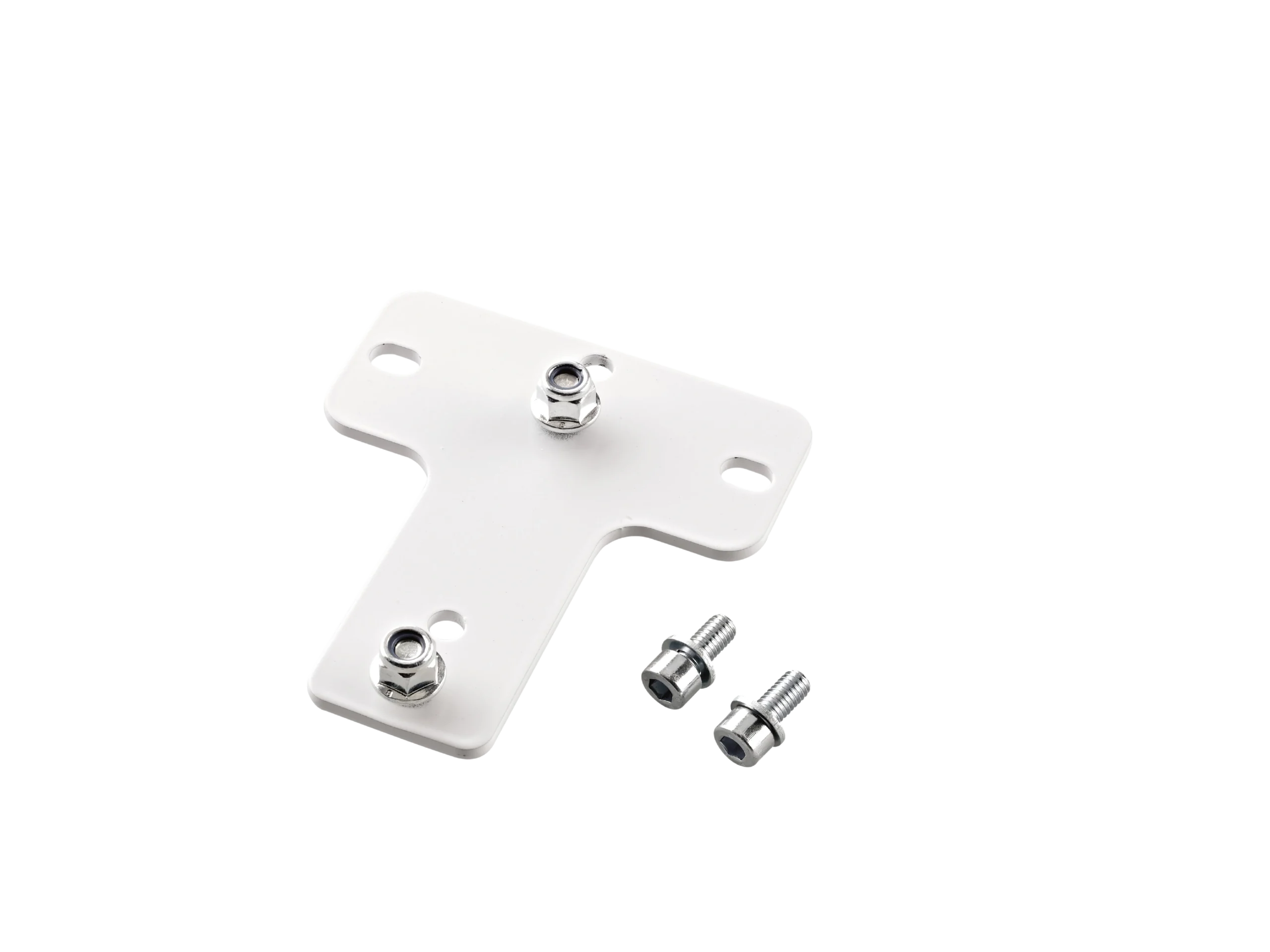

The K&M 24359 Adapter Plate 6 is a compact steel mounting bracket engineered for permanent speaker installation in horizontal or vertical orientations. Designed for use with 70 to 76.2 mm M6 thread patterns, it provides a reliable interface between wall mount hardware and compatible loudspeakers. The 90 x 100 mm bearing plate offers a stable footprint for secure speaker positioning. This adapter is well suited for system integrators, installers, and studio facility managers working with Genelec 8000 series monitors or similarly threaded enclosures.
The 24359 ships with locking screws specifically for the Genelec 8000 series, streamlining installation and reducing the need for additional hardware sourcing.
Key Features
- T-Mounting Bracket — supports both horizontal and vertical speaker mounting orientations for flexible installation configurations
- 70 to 76.2 mm M6 Thread Compatibility — fits a range of speaker enclosures within this mounting pattern specification
- Genelec 8000 Series Ready — includes dedicated locking screws for direct compatibility with Genelec 8000 series monitors
- Mounting Template Included — simplifies wall preparation and ensures accurate placement prior to installation
- Steel Construction — provides durable, load-bearing performance in permanent installation environments
- Compact Bearing Plate — 90 x 100 mm footprint keeps the wall profile low-profile and unobtrusive
- Lightweight Design — weighs only 0.14 kg, minimizing added load on wall mounting surfaces
Technical Specifications
| Bearing Plate Dimensions | 90 x 100 mm |
| Thread Compatibility | 70 to 76.2 mm, M6 |
| Material | Steel |
| Weight | 0.14 kg |
| Color | Black |
| Special Features | Includes locking screws for Genelec 8000 series; mounting template included |
| EAN | 4016842828234 |
