K&M 24357 Adapter Plate 4 — Horizontal Speaker Wall Mount Bracket
24357 Overview

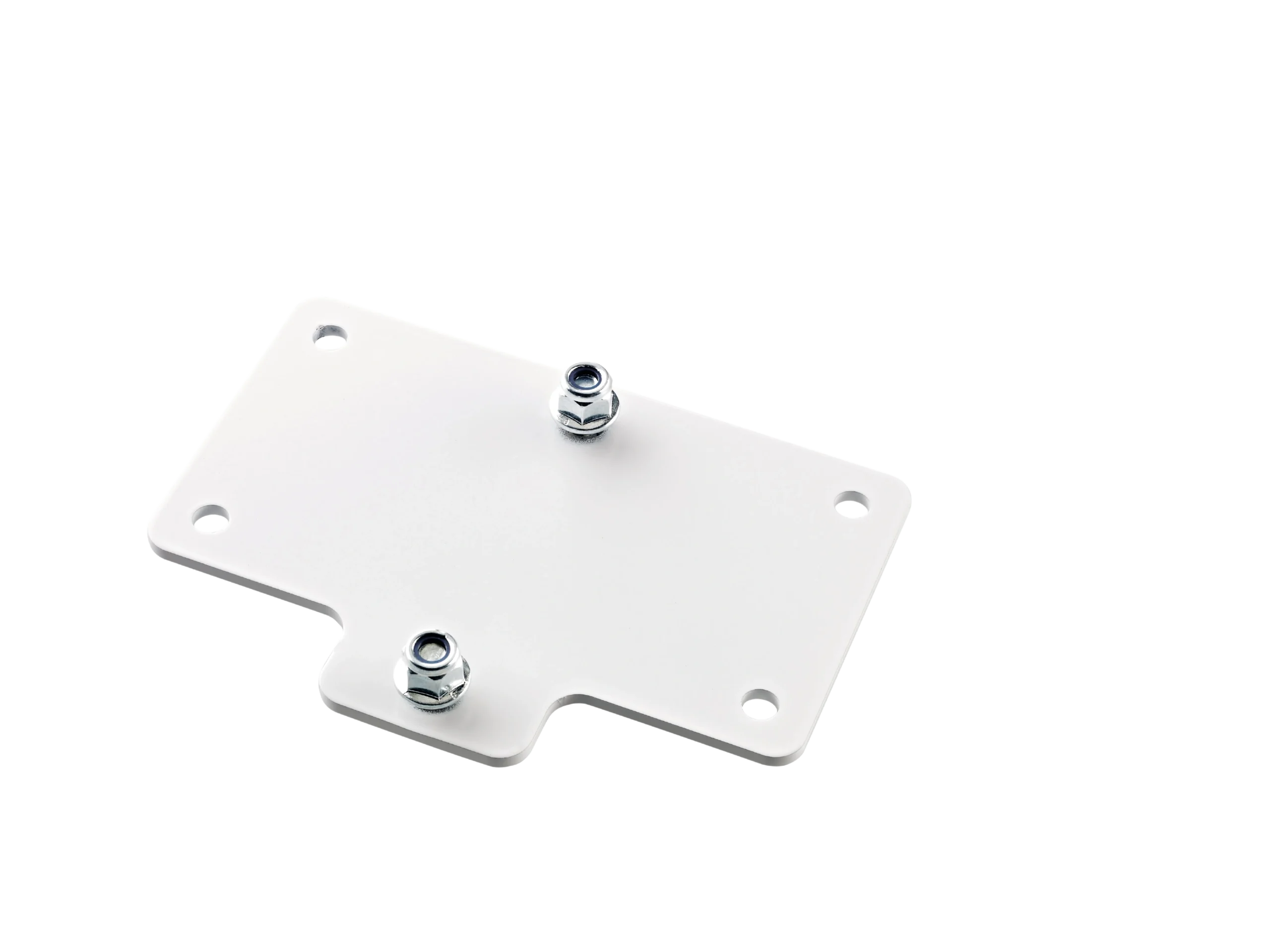

The K&M 24357 Adapter Plate 4 in white is a steel wall mounting bracket engineered for horizontal speaker installation in fixed installation environments. The plate provides a 128 x 90 mm bearing surface and is designed around a standardized M6 mounting pattern at 107.9 x 50.8 mm, ensuring compatibility with a wide range of speaker enclosures. At just 0.2 kg, the bracket adds minimal weight to the installation while maintaining the structural integrity expected from K&M steel hardware. This adapter plate is well suited for system integrators, installers, and venues requiring a clean, reliable wall-mount solution for compact speaker systems.
A mounting template is included at the specified 107.9 x 50.8 mm M6 pattern, simplifying accurate wall preparation and reducing installation time on the job site.
Key Features
- Steel Construction — Durable all-steel build provides reliable load support for fixed speaker installations
- Horizontal Bracket Orientation — Designed specifically for horizontal wall-mount speaker positioning
- Standardized M6 Mounting Pattern — 107.9 x 50.8 mm M6 hole pattern ensures broad compatibility with compatible speaker enclosures
- 128 x 90 mm Bearing Plate — Provides a stable, well-distributed mounting surface against the wall
- Included Mounting Template — Pre-marked template at 107.9 x 50.8 mm M6 simplifies accurate drilling and wall preparation
- White Finish — Clean white powder coat integrates discreetly into light-colored architectural environments
- Low Profile Weight — At 0.2 kg, the bracket contributes minimal additional mass to the overall installation
Technical Specifications
| Bearing Plate | 128 x 90 mm |
| Mounting Pattern | 107.9 x 50.8 mm, M6 |
| Bracket Orientation | Horizontal |
| Material | Steel |
| Finish | White |
| Weight | 0.2 kg |
| EAN | 4016842828210 |
