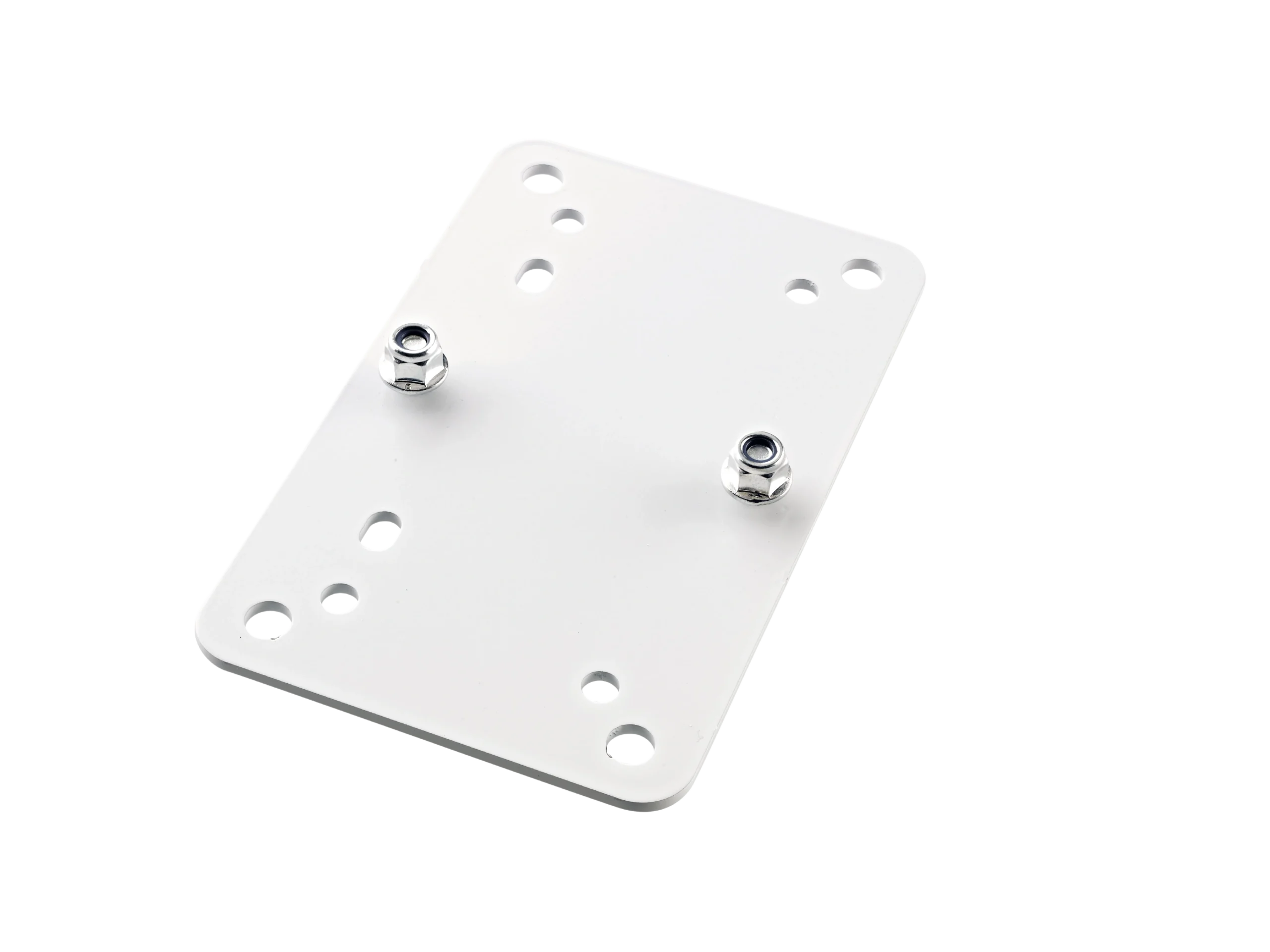

K&M 24354 Speaker Wall Mount Adapter Plate 2 — Universal Horizontal Mounting Bracket, White

24354 Overview

The K&M 24354 Adapter Plate 2 is a universal horizontal mounting bracket engineered for permanent speaker installation in fixed installation environments. Constructed from steel with a white finish, the plate accommodates three distinct mounting templates, making it compatible with a wide range of loudspeaker cabinet back-panel configurations. The 150 x 95 mm bearing plate provides a stable, consistent mounting surface for reliable long-term installation. This adapter is suited for system integrators, AV installers, and venues requiring a clean, adaptable interface between wall mounts and speaker cabinets.

The multi-template design reduces the need for custom fabrication or additional hardware when working across different speaker brands and models, streamlining installation workflow on multi-zone or multi-speaker projects.

Key Features

• Universal Horizontal Mounting — large bracket format designed for horizontal orientation, compatible with a broad range of speaker cabinet mounting patterns
• Three Mounting Templates — supports 127 x 69.9 mm M8, 107.9 x 50.8 mm M6, and 70 to 76.2 mm M6 bolt patterns to accommodate multiple speaker models
• 150 x 95 mm Bearing Plate — generously sized steel plate provides a stable and secure mounting interface
• Steel Construction — durable material ensures long-term structural integrity in permanent installation applications
• White Finish — clean white color suits installations where visual discretion or aesthetic consistency is required
• Lightweight Profile — weighs only 0.2 kg, minimizing added load on wall mounting hardware

Technical Specifications
