K&M Speaker Wall Mount Adapter Plate 1 – White

K&M 24352 Speaker Wall Mount Adapter Plate 1 — Universal Vertical Mounting Bracket

24352 Overview

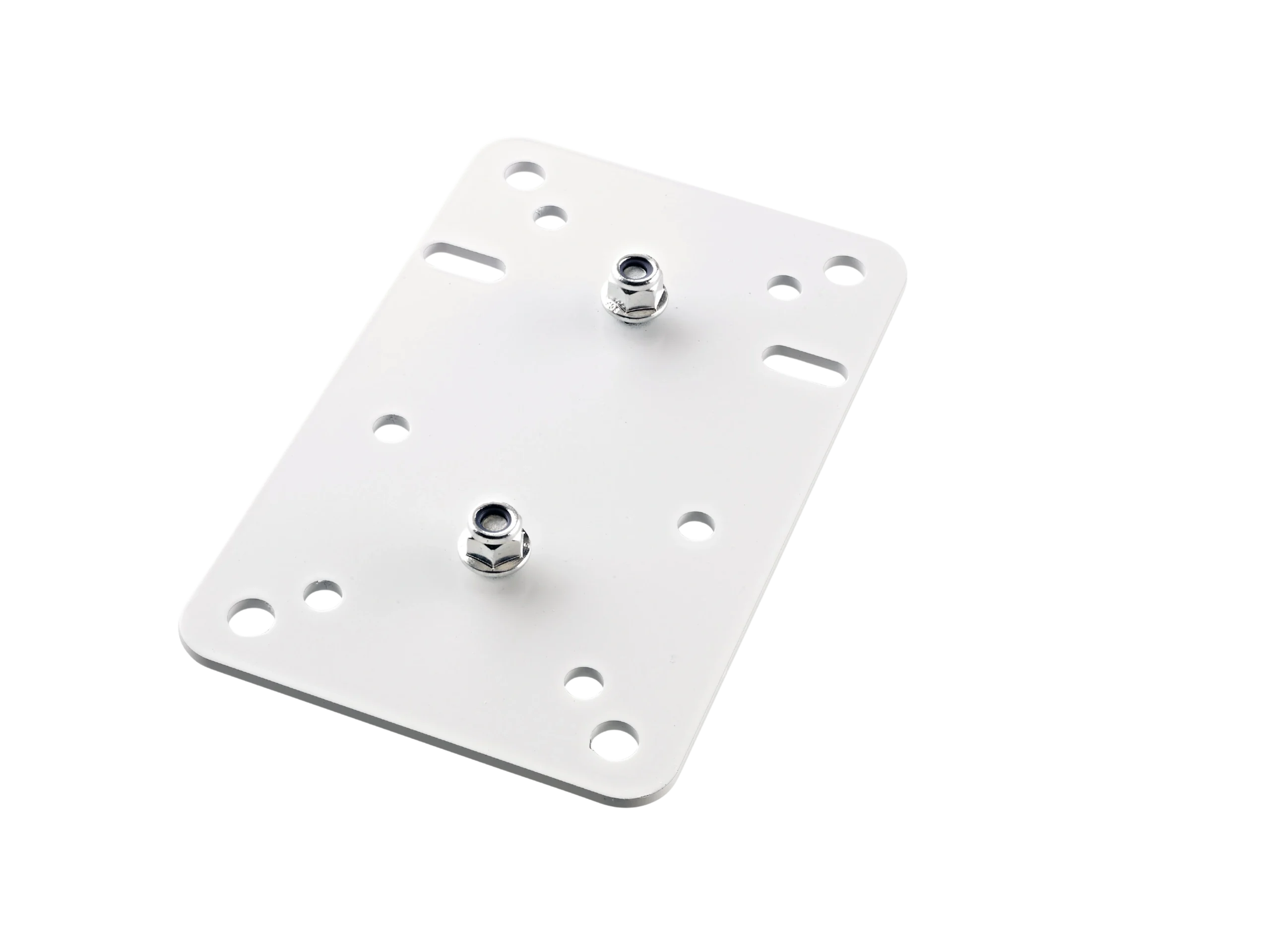

The K&M 24352 Adapter Plate 1 in white is a large vertical universal mounting bracket engineered to interface a wide range of passive and powered loudspeakers with compatible K&M wall mount hardware. Constructed from steel with a 95 x 150 mm bearing plate, it provides a rigid, reliable mounting surface for permanent installation environments. The plate supports four distinct bolt patterns covering both M6 and M8 thread specifications, accommodating speakers from multiple manufacturers. It is well suited for system integrators, installers, and houses of worship requiring a clean, consistent white-finish hardware solution.

The included mounting templates simplify alignment during installation, reducing setup time and minimizing the risk of misdrilled mounting points in fixed installations.

Key Features

• Steel Construction — Provides structural rigidity and long-term durability in permanent installation environments
• 95 x 150 mm Bearing Plate — Large surface area distributes load evenly across the mounting interface
• M8 Mounting Template (69.9 x 127 mm) — Supports speakers with standard M8 bolt patterns at this spacing
• M6 Mounting Template (50.8 x 107.9 mm) — Accommodates a common M6 bolt pattern used across numerous loudspeaker enclosures
• M6 Mounting Template (62 x 47 mm) — Provides compatibility with compact speaker enclosures using this M6 pattern
• M6 Mounting Template (70 to 76.2 mm) — Adjustable range template for M6 applications with variable bolt spacing
• White Finish — Matches standard white speaker and ceiling installations for a clean, unobtrusive appearance

Technical Specifications
