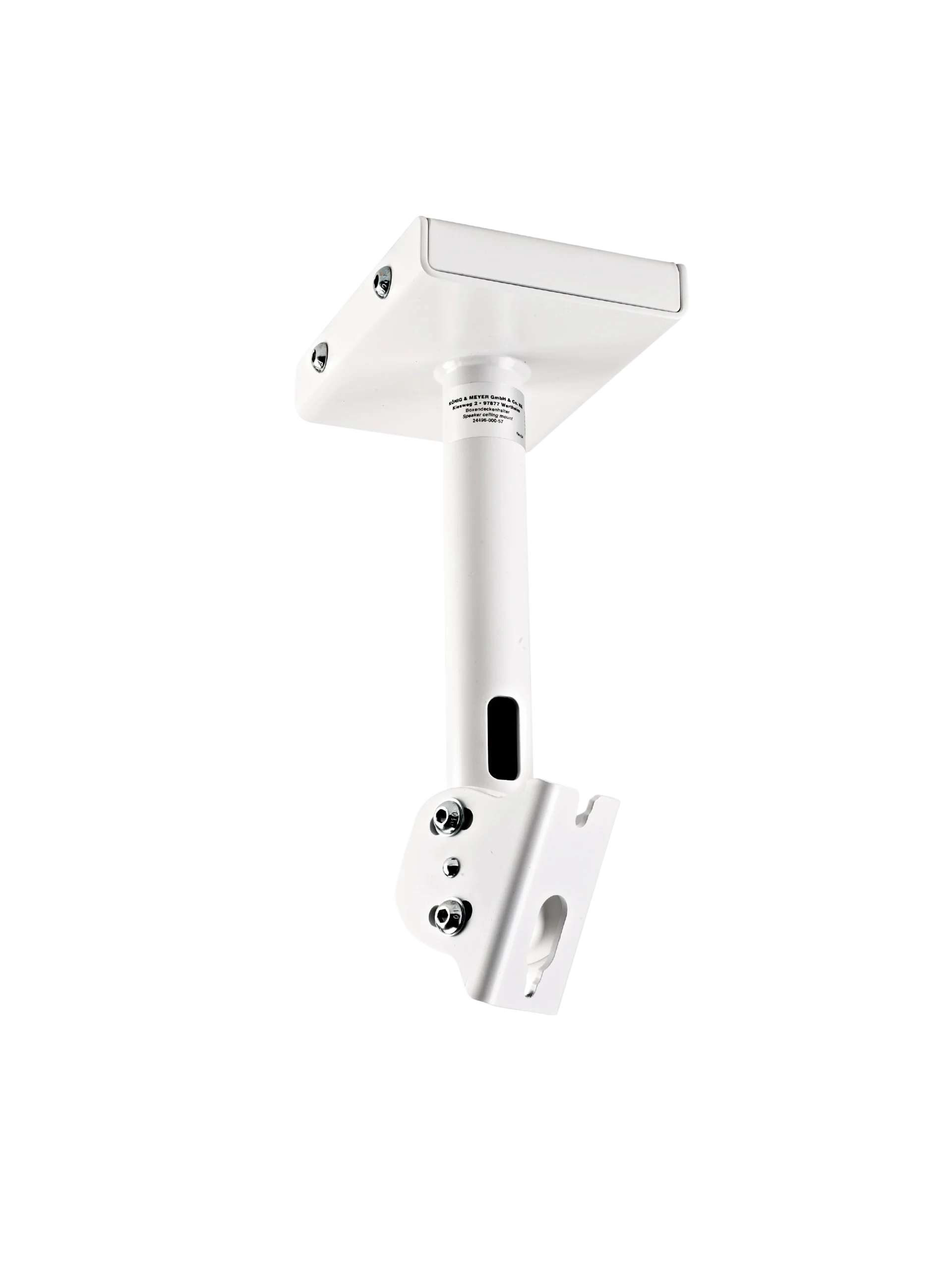

K&M 24496 Speaker Ceiling Mount — White
24496 Overview
The K&M 24496 is a robust steel ceiling mount engineered for permanent loudspeaker installations in venues, houses of worship, commercial facilities, and installed sound environments. Built to handle a maximum load capacity of 25 kg, it provides 250 mm of ceiling clearance and a continuous tilt adjustment range of 0° to 45° for precise speaker aiming. A 90° swivel range allows horizontal positioning flexibility to cover a wide variety of room geometries. System integrators and installation contractors will find this mount well-suited for both new construction and retrofit applications.
Internal cable management keeps signal and power cables routed cleanly within the mount body, and the hooking-in mechanism with screw locking simplifies single-technician installation without sacrificing structural integrity.
Key Features
- Maximum Load Capacity — supports loudspeakers up to 25 kg for a wide range of installed sound cabinets
- Continuous Tilt Adjustment — adjustable from 0° to 45° inclination with continuous (stepless) positioning for precise coverage tuning
- 90° Swivel Range — provides plus or minus 45° of horizontal rotation to optimize speaker aim without repositioning the ceiling plate
- 250 mm Ceiling Clearance — positions the speaker away from the ceiling surface to accommodate cabinet depth and improve dispersion
- Internal Cable Management — routes cables through the mount body for a clean, professional installation finish
- Convenient Hook-and-Lock Mounting — easy hooking-in mechanism with screw locking simplifies installation and ensures a secure, stable connection
- Steel Construction — all-steel build delivers long-term structural reliability in permanent installation environments
- Compatible Hole Spacing — accommodates speaker mounting hole spacing from 70 to 76.2 mm to fit a broad range of cabinet back plates
Connectivity & I/O
- Ceiling mounting plate: 160 x 118 mm
- Bearing plate: 90 x 47 mm
- Speaker mounting hole spacing: 70 to 76.2 mm
Technical Specifications
| Adjustment | Continuous |
| Angle of Inclination | 0° to 45° |
| Swivel | 90° |
| Ceiling Clearance | 250 mm |
| Max. Load Capacity | 25 kg |
| Ceiling Mounting Plate | 160 x 118 mm |
| Bearing Plate | 90 x 47 mm |
| Spacing of Holes | 70 to 76.2 mm |
| Material | Steel |
| Weight | 1.79 kg |
| Color | White |
| EAN | 4016842828241 |
