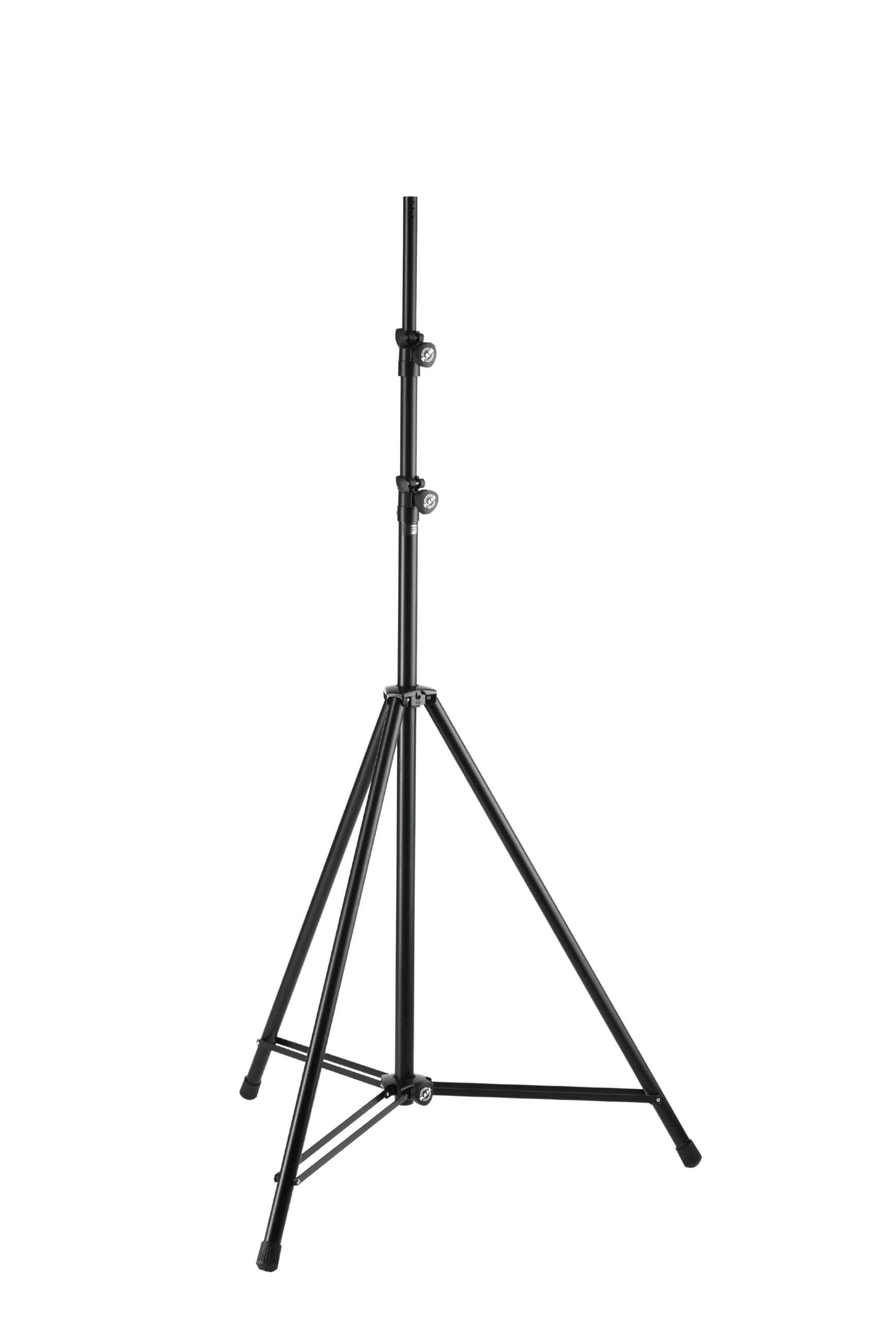

K&M 24640 Lighting Stand — Heavy-Duty Professional Black
24640 Overview
The K&M 24640 is a Topline-grade lighting stand designed for professional live production, touring, and installed venue applications where height range and structural integrity are non-negotiable. Constructed from steel with zinc die-cast clamps, the stand extends from 1,590 mm to 4,025 mm and supports a maximum load capacity of 20 kg, making it suitable for moving heads, LED fixtures, and other professional lighting payloads. Larger steel leg tubing and double cross braces on each of the three legs provide the structural rigidity required for heavy fixtures at full extension. This stand is built for lighting technicians, touring companies, system integrators, and venues that require reliable, repeatable performance night after night.
The 3-piece folding rod design collapses to a 1,500 mm folded length for efficient transport and storage, while non-scratching locking screws allow for smooth, secure height adjustment without damaging the tubing finish.
Key Features
- Extended Height Range — Adjusts from 1,590 mm to 4,025 mm, covering a wide range of stage and venue rigging positions
- 20 kg Load Capacity — Rated for professional lighting fixtures including moving heads and heavier LED units
- Zinc Die-Cast Clamps — Upgraded clamping hardware provides secure, durable height locking under load
- Steel Tube Legs with Double Cross Braces — Three-leg configuration with reinforced cross bracing delivers enhanced lateral stability at full extension
- 1,300 mm Base Diameter — Wide footprint reduces tipping risk when supporting heavy fixtures at maximum height
- Additional Safety Rings — Integrated safety rings provide an extra layer of security for the extended rod sections
- 3-Piece Folding Rod Design — Collapses to 1,500 mm for compact transport and storage in standard lighting cases
- 30 mm Tube End with Integrated M10 Threaded Bush — Compatible with standard crossbars and lighting accessories using M10 hardware
Technical Specifications
| Base Diameter | 1,300 mm |
| Height Range | 1,590 mm to 4,025 mm |
| Max. Load Capacity | 20 kg |
| Weight | 12.68 kg |
| Size When Folded | 1,500 mm |
| Material | Steel |
| Number of Legs | 3 |
| Leg Construction | Tube legs with double cross braces |
| Rod Combination | 3-piece folding design |
| Tube End Diameter | 30 mm |
| Threaded Bush | M10 (integrated, for crossbars) |
| Height Adjustment | Non-scratching locking screws |
| Special Features | Adjustable up to 4 m, additional safety rings |
| Quality Level | Topline |
| Finish | Black |
| EAN | 4016842818235 |
